Boat Design

Lundström Design’s boat designs.

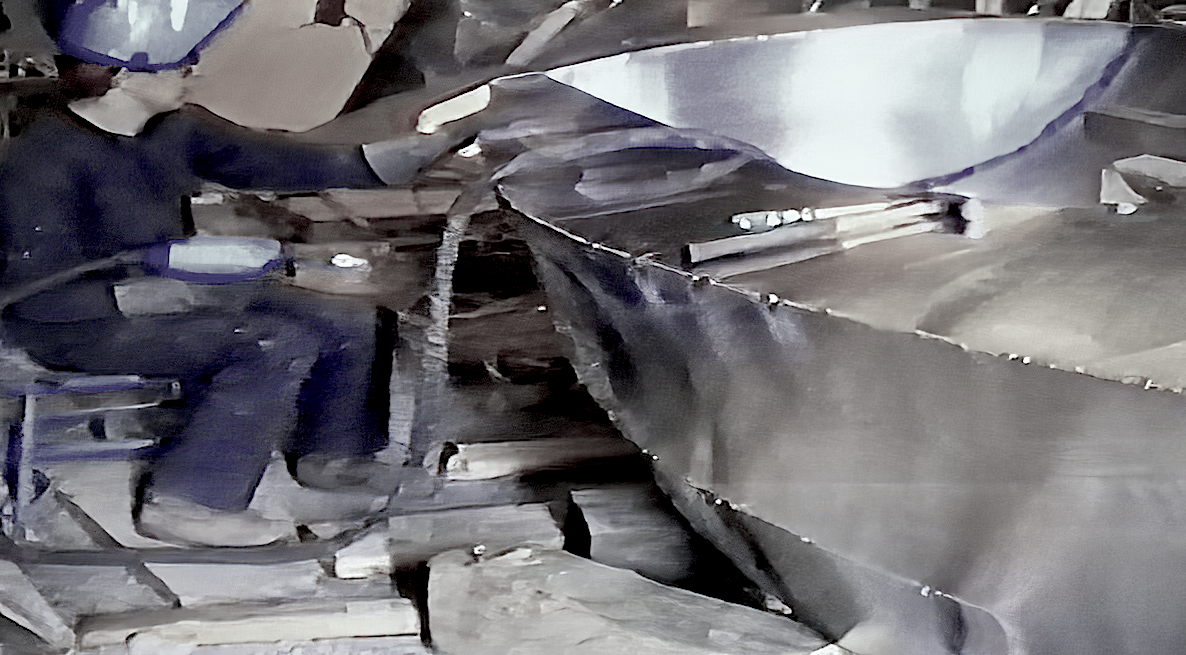

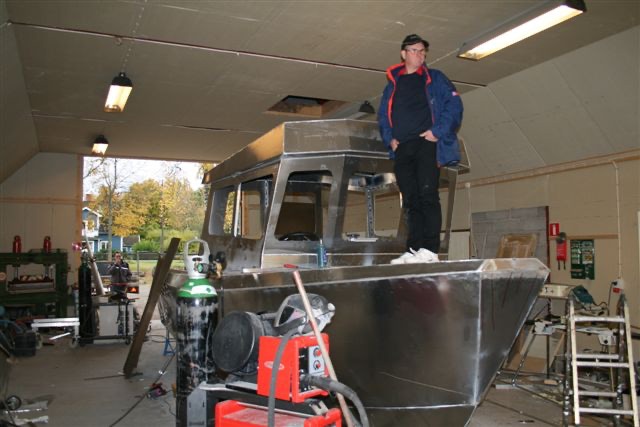

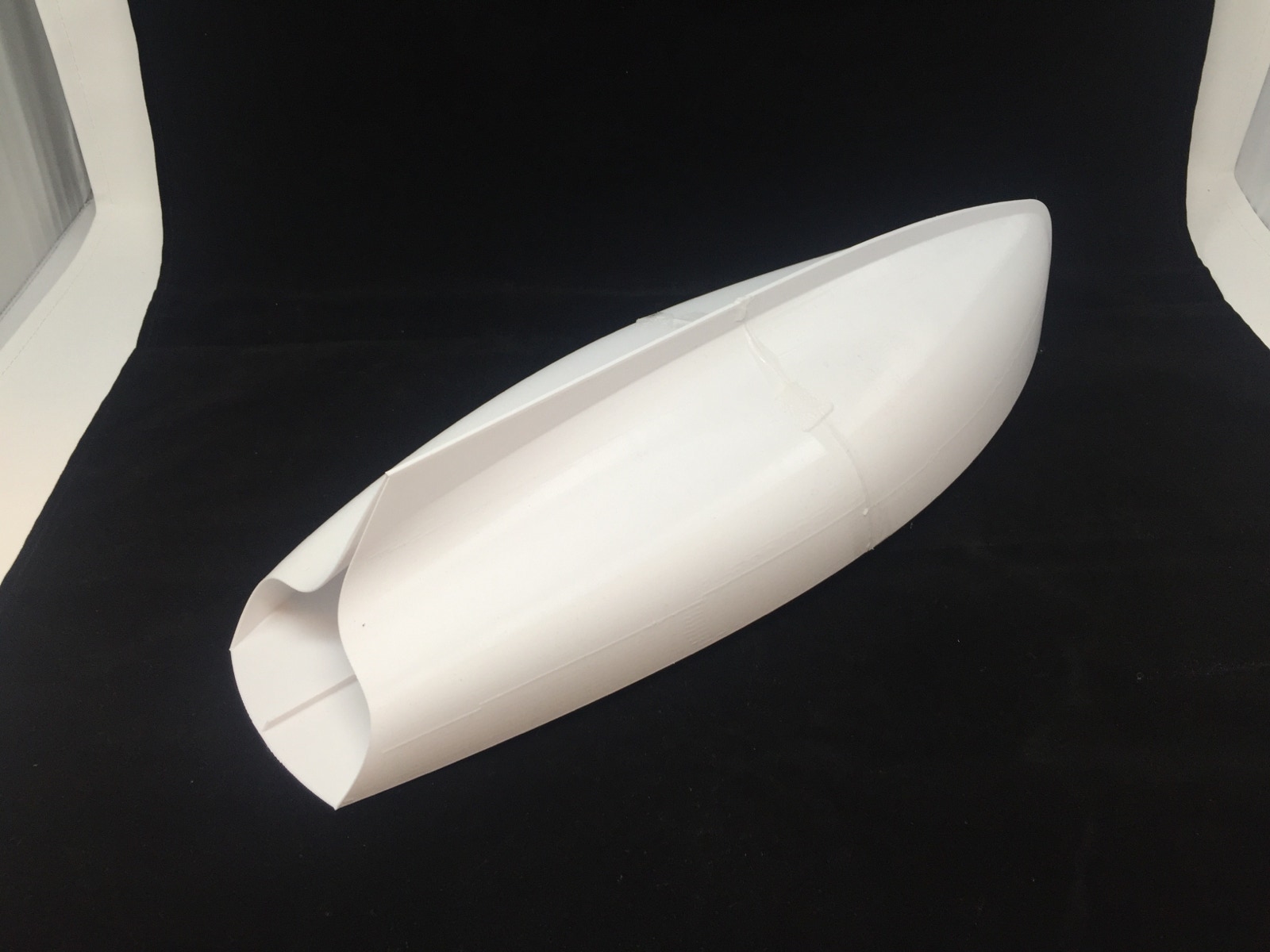

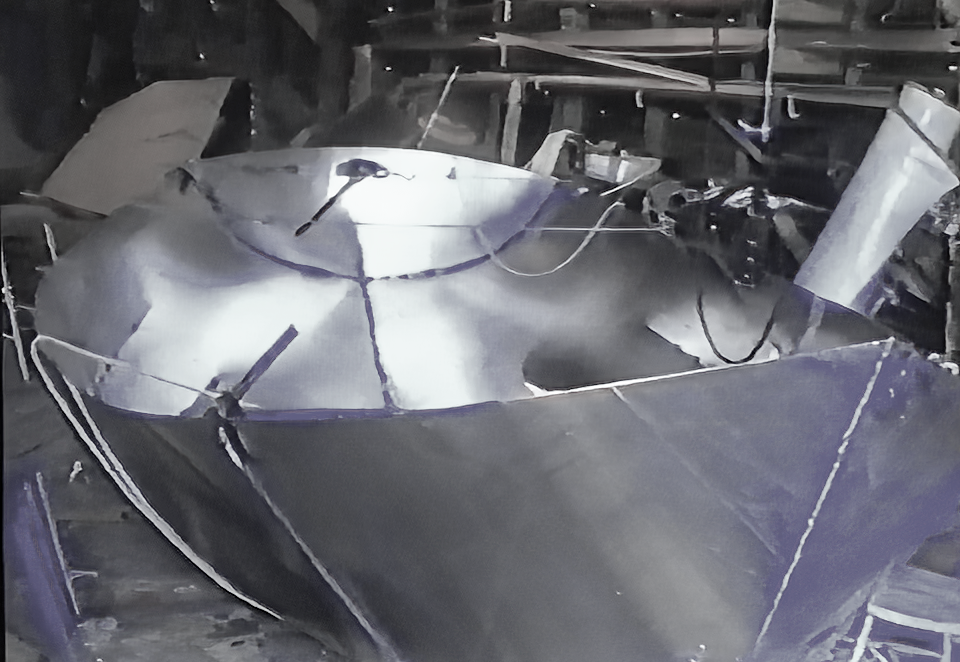

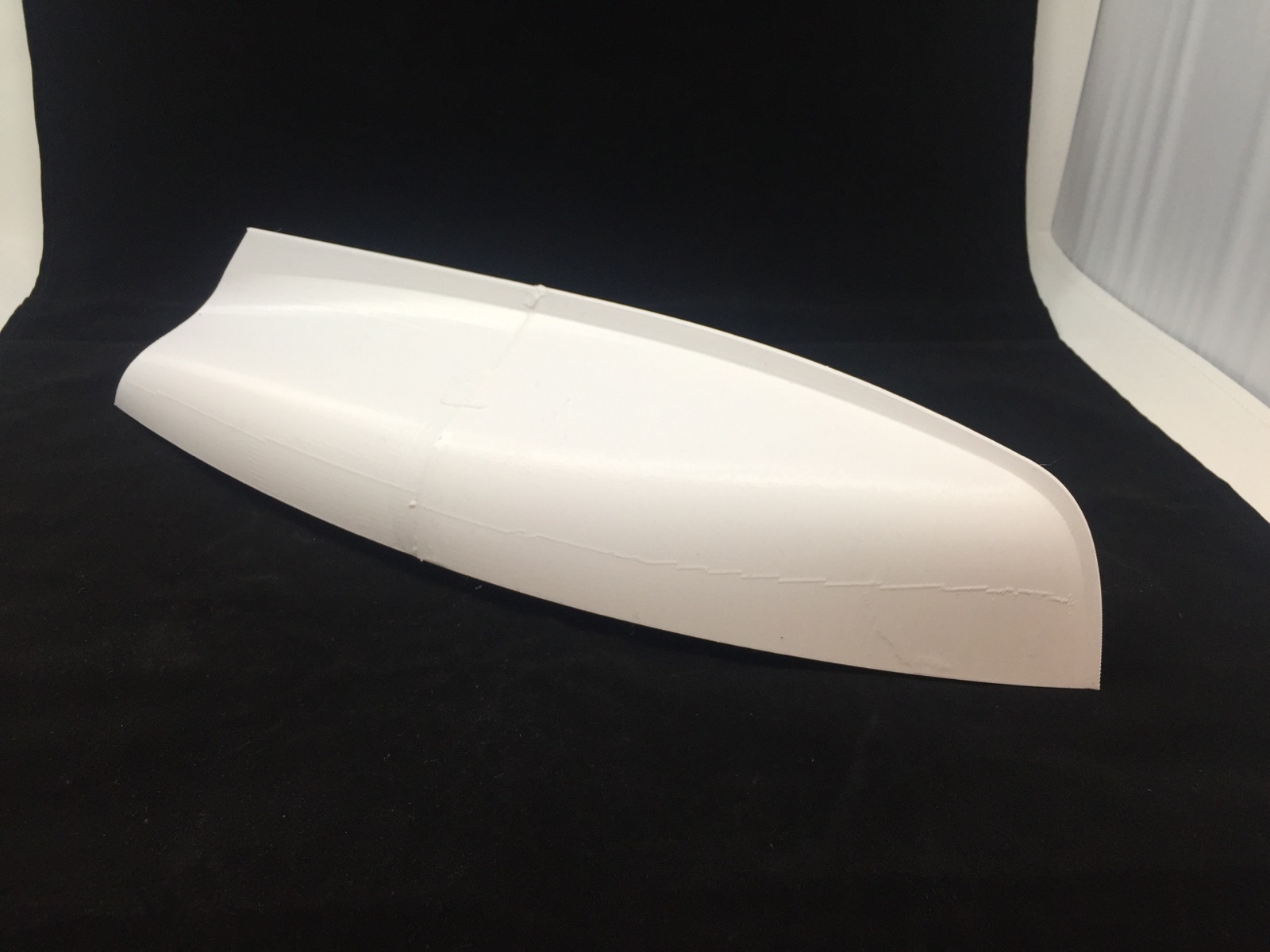

Boat design, mainly smaller leisure and work boats, but also sailboats. In total, around 80 realized design projects with between 1000 and 2000 boats built. Lundstrom Design is also the developer of a folding system for building boat hulls without using jigs or fixtures or internal frames during the building process. Advantages include surprisingly smooth and rounded shapes, fast assembly, extensive use on the skin of cross-reference marks that dramatically reduce the need for extensive manual cross-reference measuring during assembly.

Nine meter long steam boat designed by Claes Lundström Design

Nine meter long steam boat designed by Claes Lundström Design 2

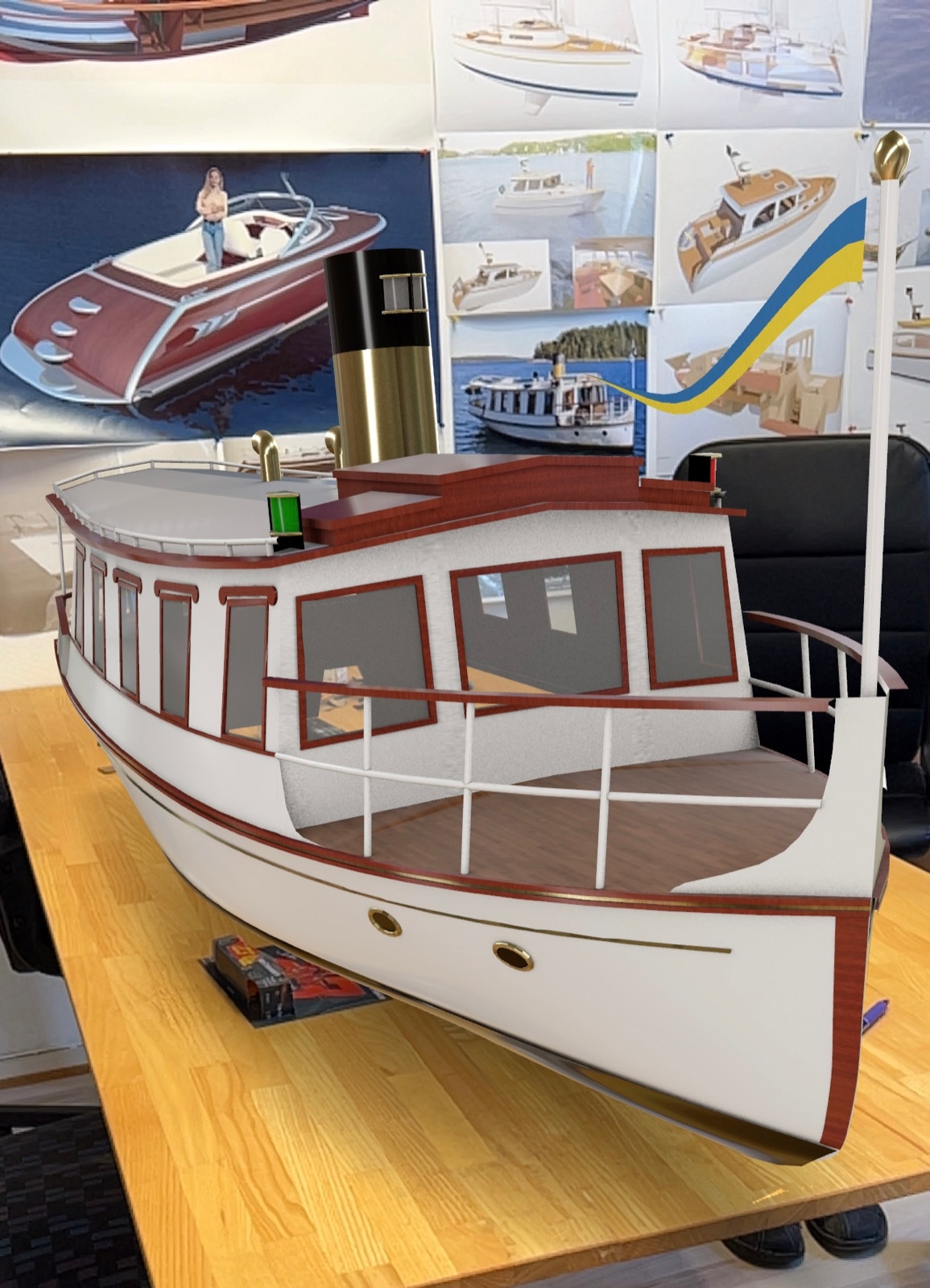

Nine meter long steam boat designed by Claes Lundström Design, augmented reality

Nine meter long steam boat designed by Claes Lundström Design, real boat

Nine meter long steam boat designed by Claes Lundström Design Sjöjeepen 43

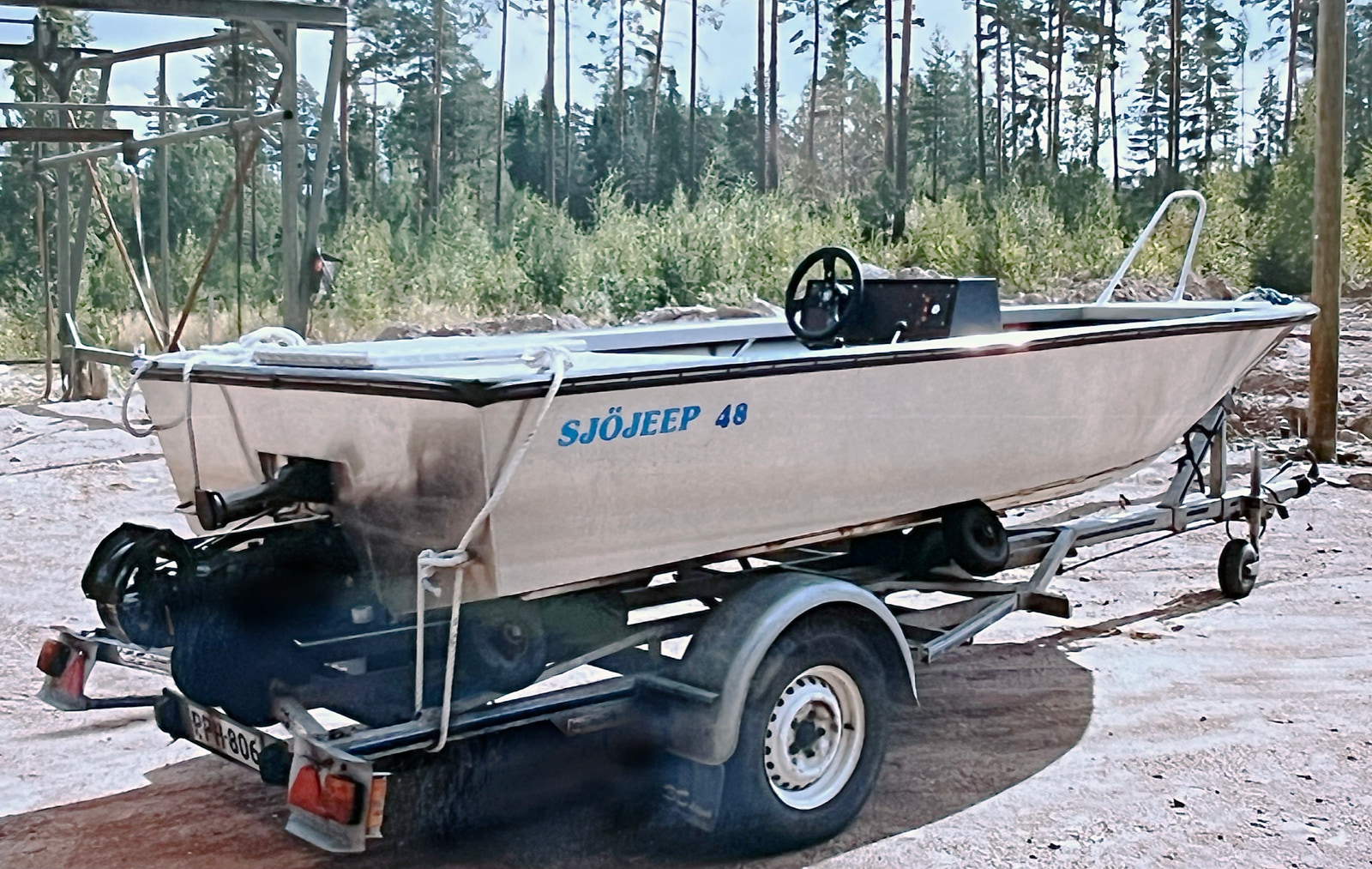

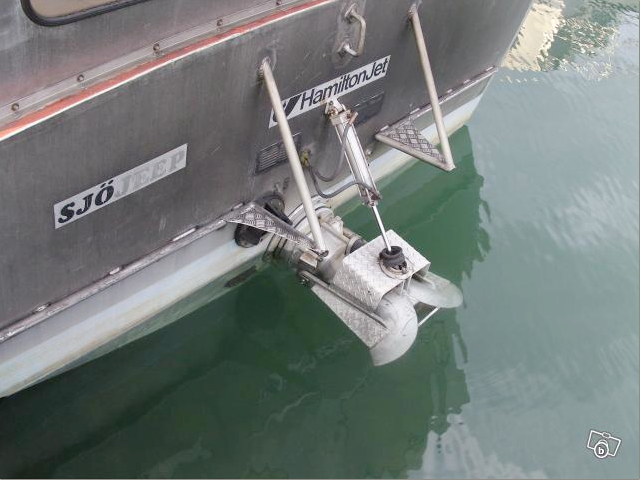

Nine meter long steam boat designed by Claes Lundström Design, Sjöjeepen 48 with water jet

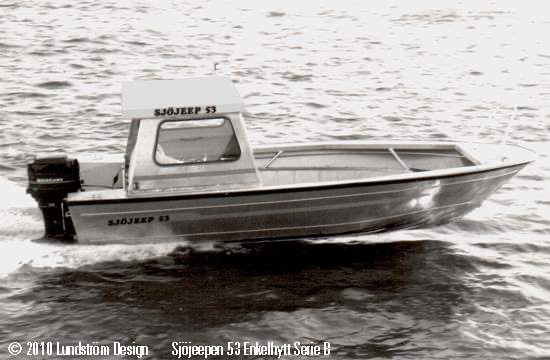

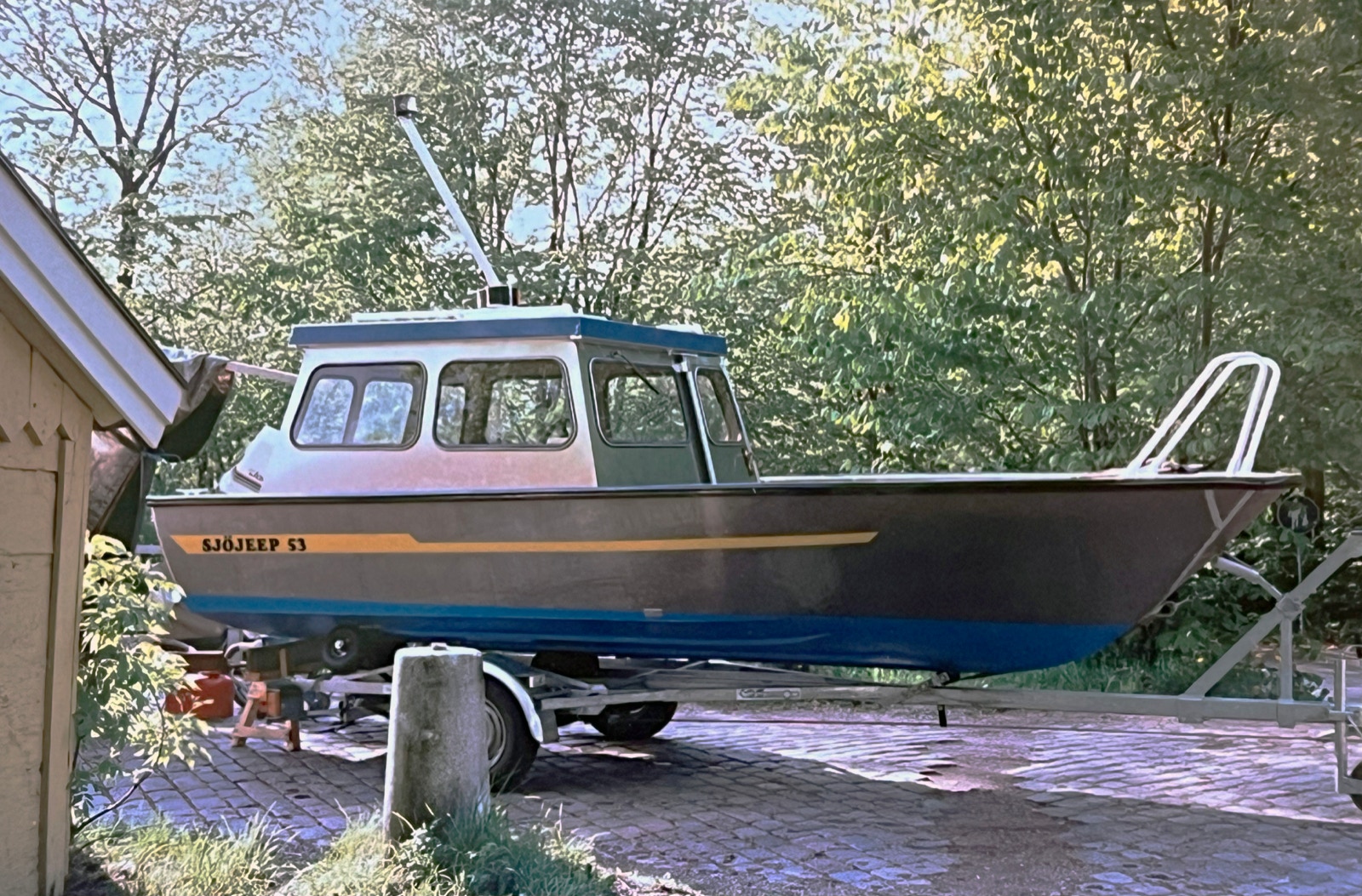

Nine meter long steam boat designed by Claes Lundström Design, Sjöjeepen 53

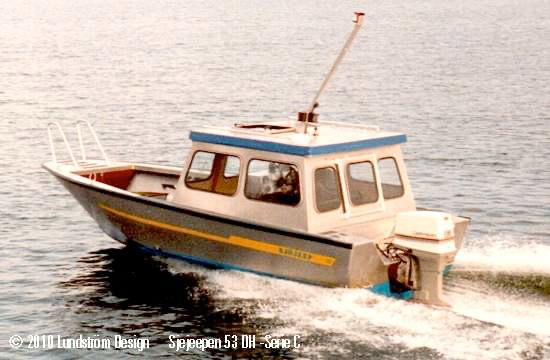

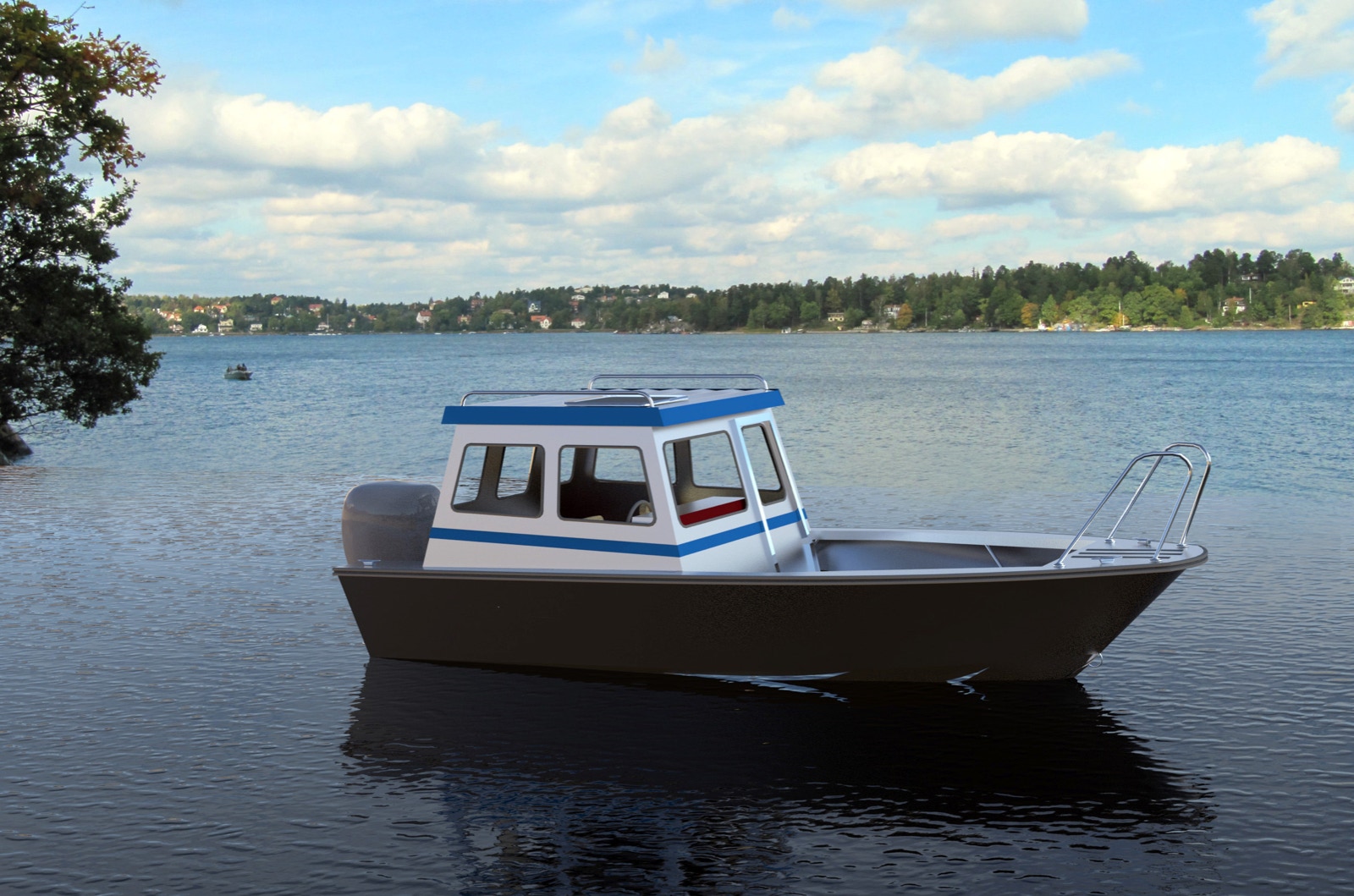

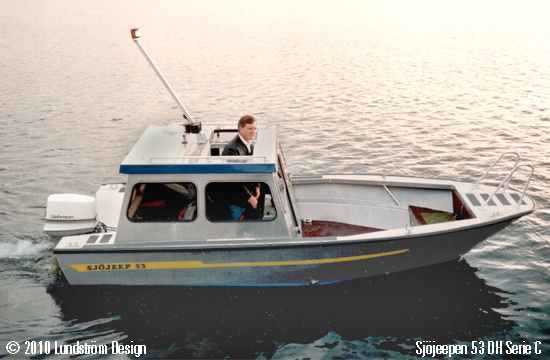

Nine meter long steam boat designed by Claes Lundström Design, Sjöjeepn 53 Double cabin

Nine meter long steam boat designed by Claes Lundström Design, Sjöjeepen 53 Double Cabin

Designed by Claes Lundström Design, Double Cabin

Designed by Claes Lundström Design, Sjöjeepen 63 Double Cabin

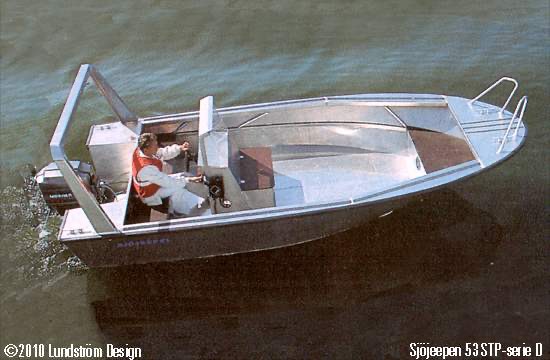

Designed by Claes Lundström Design, Sjöjeepen 53 Doble Cabin Series D

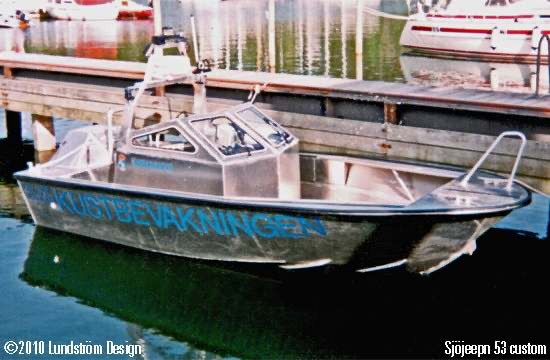

Designed by Claes Lundström Design, Sjöjeepen 53 Center Console Custom

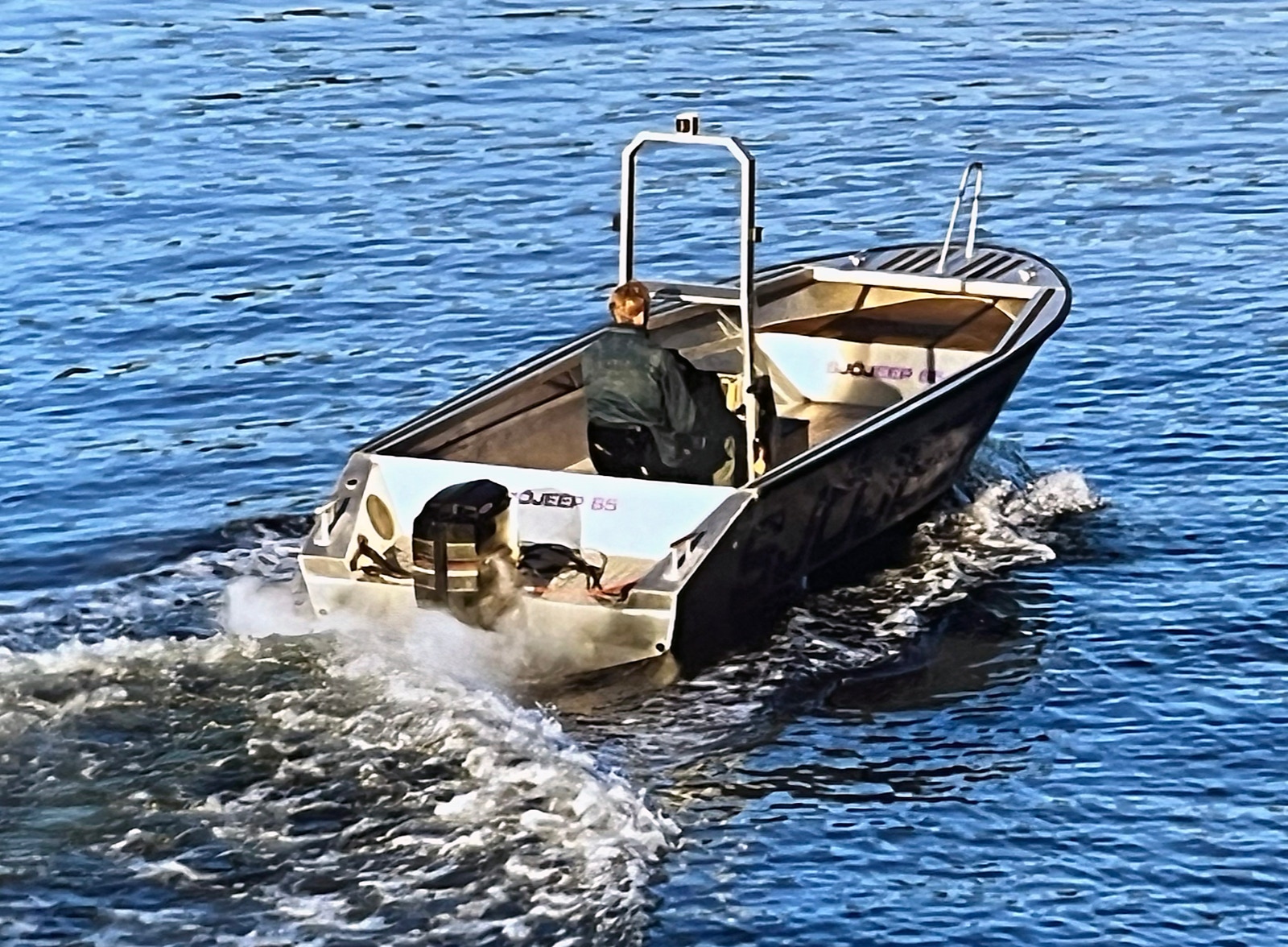

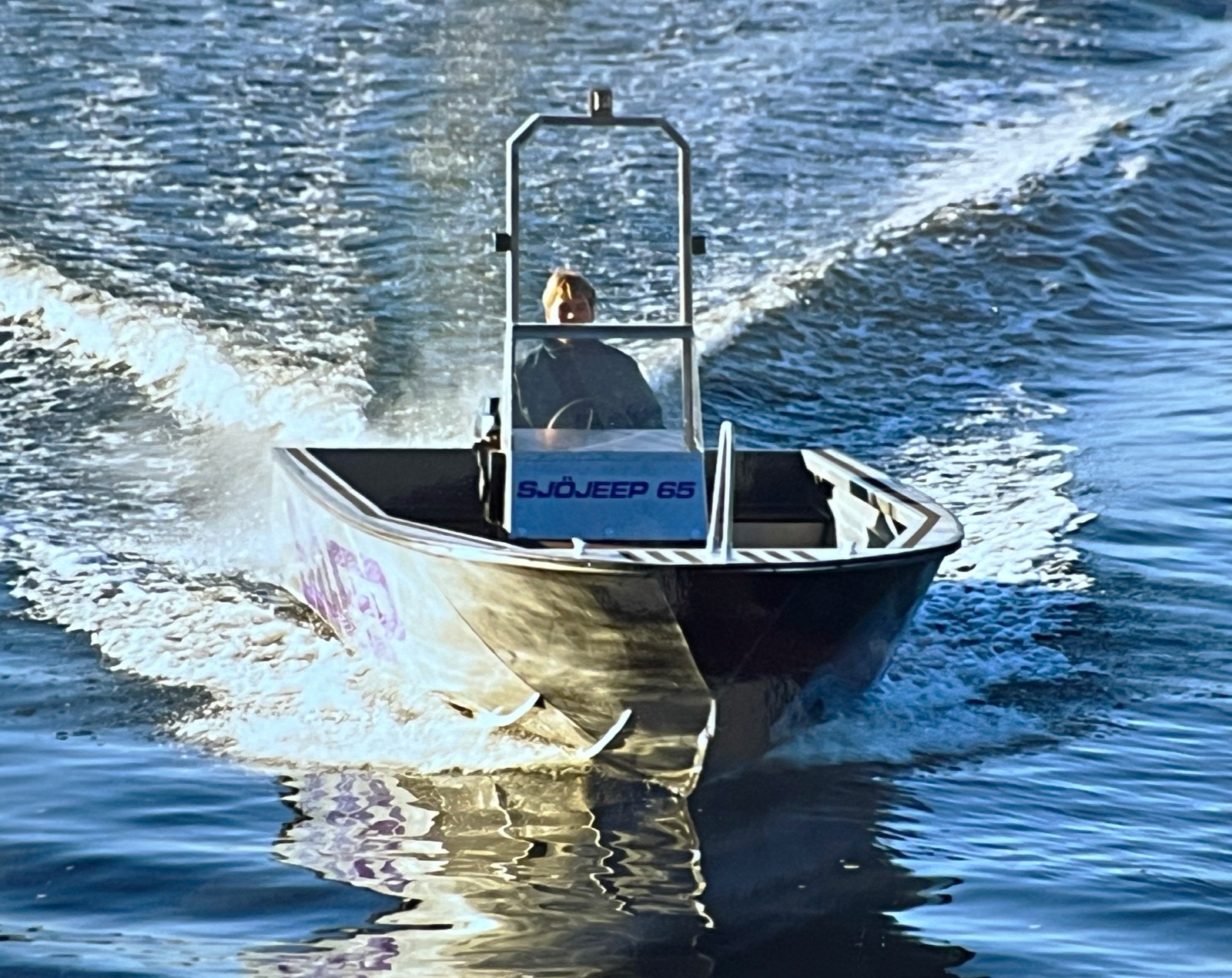

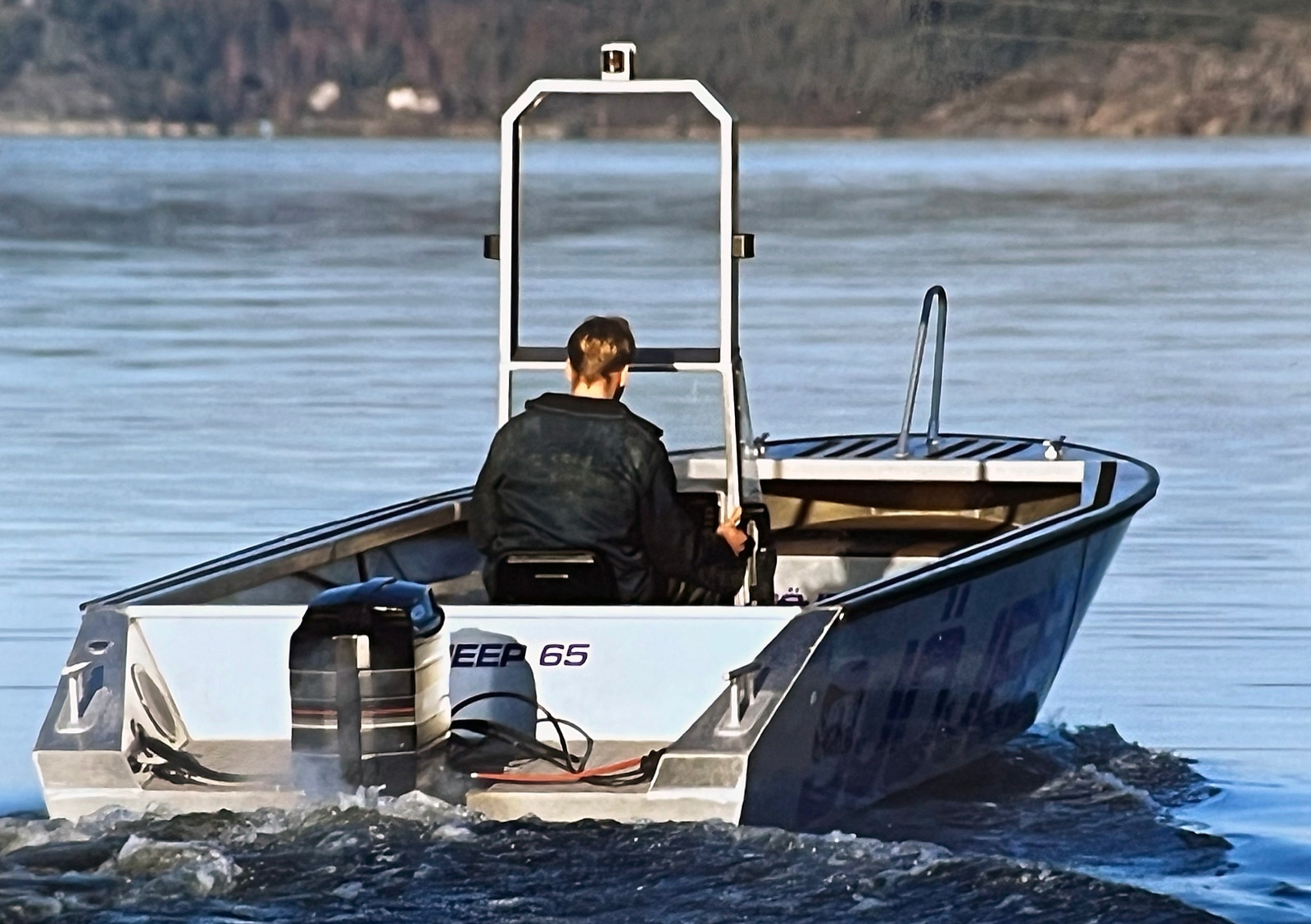

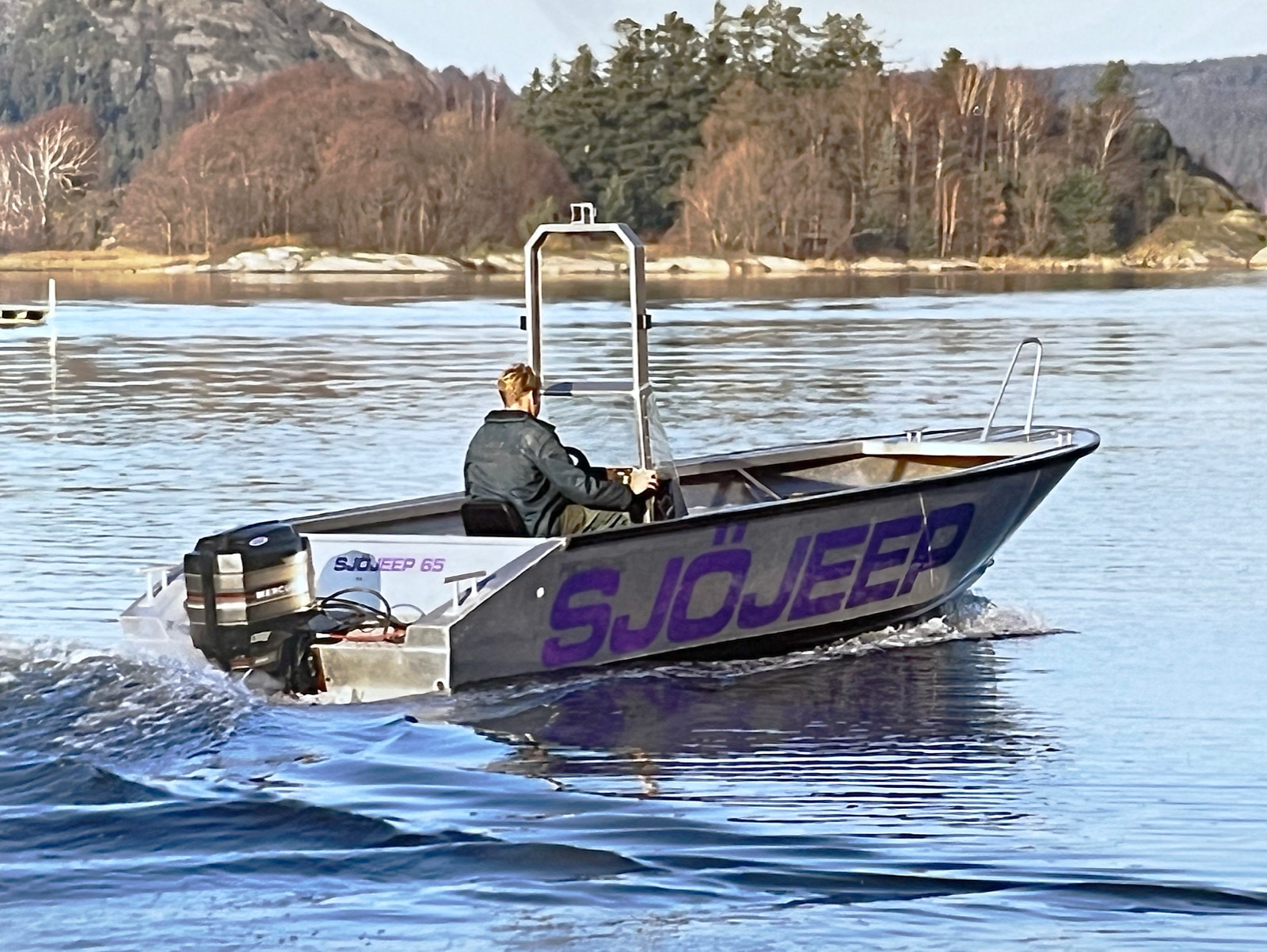

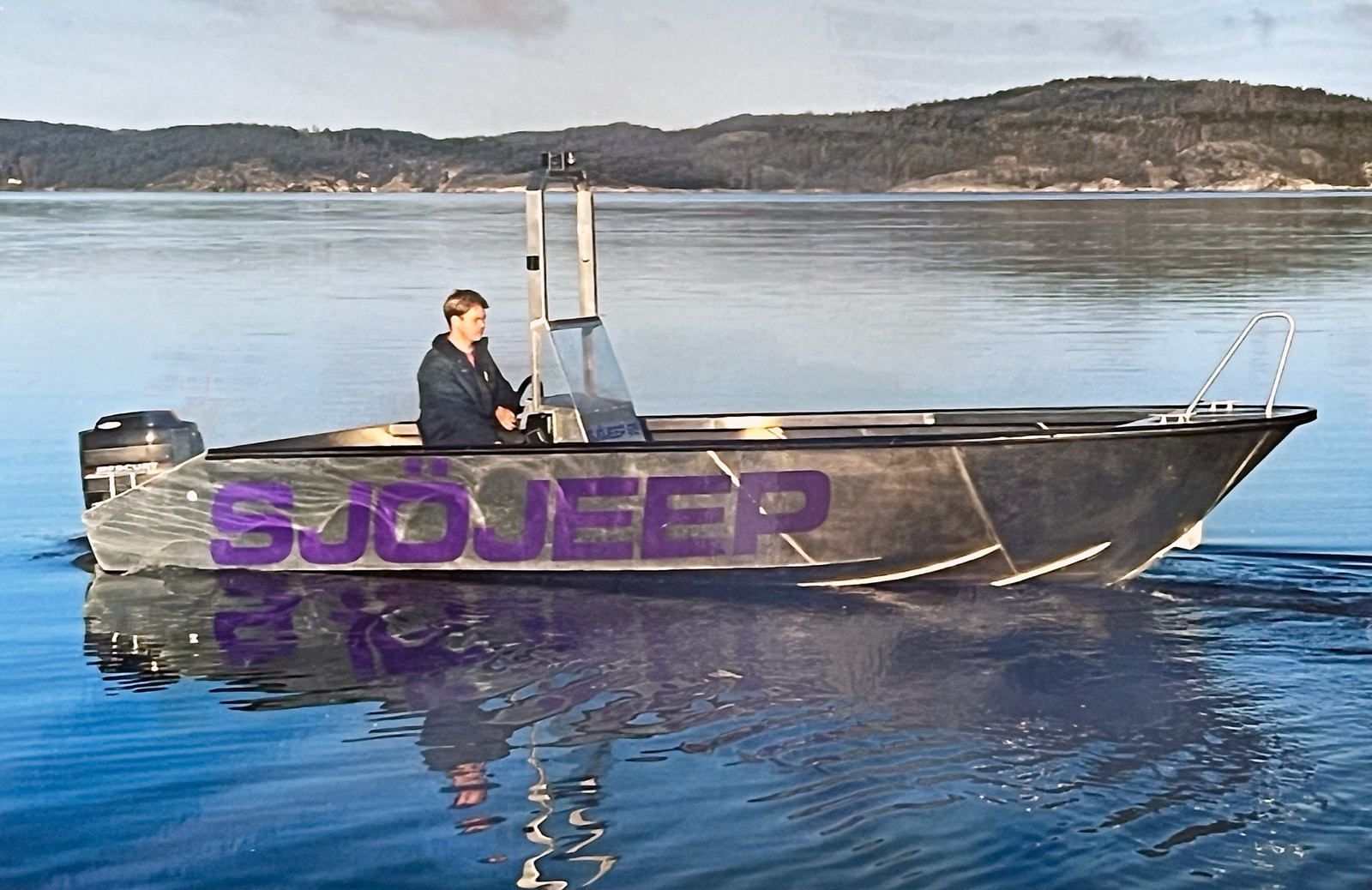

Designed by Claes Lundström Design, Sjöjeepen 65 Center Console Custom

Designed by Claes Lundström Design, Sjöjeepen 65 Double Cabin with front ramp

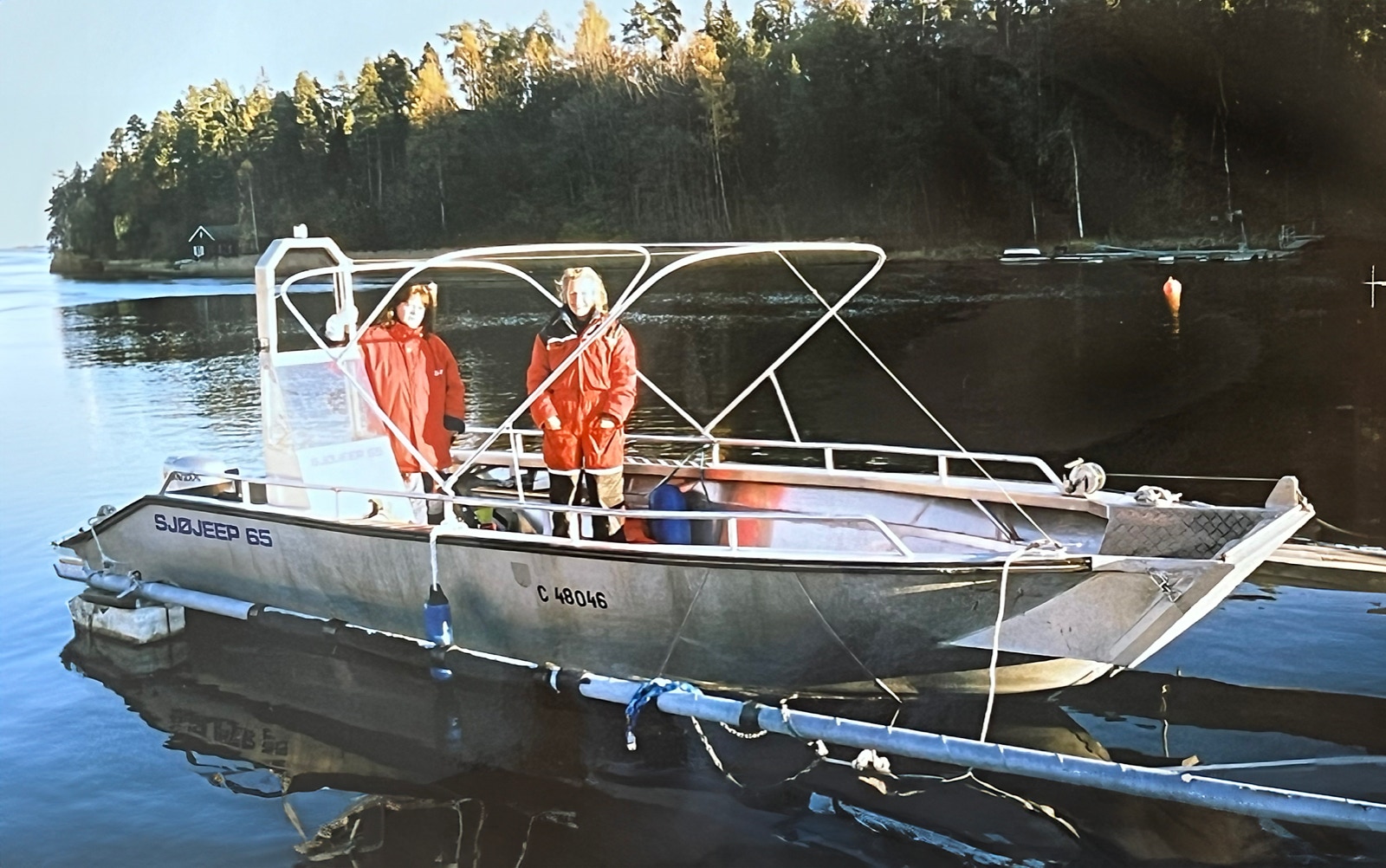

Designed by Claes Lundström Design, Sjöjeepen 65 Double Cabin

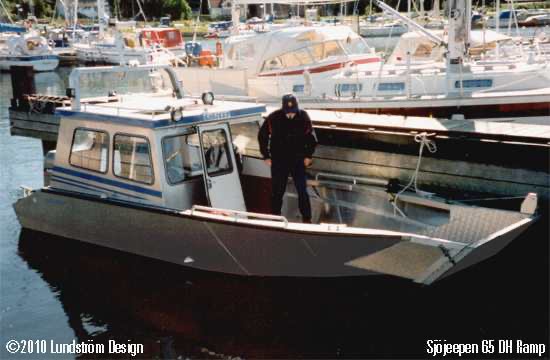

Designed by Claes Lundström Design, Sjöjeepen 65 Double Cabin with ramp

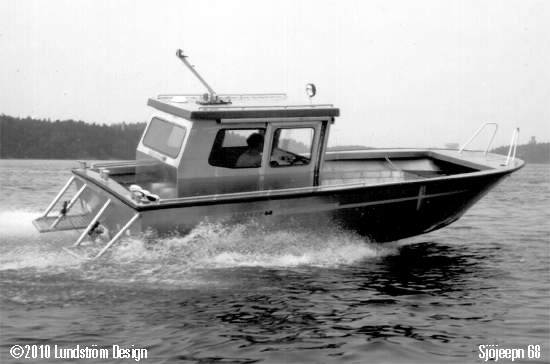

Designed by Claes Lundström Design, Sjöjeepen 68 with walk around cabin

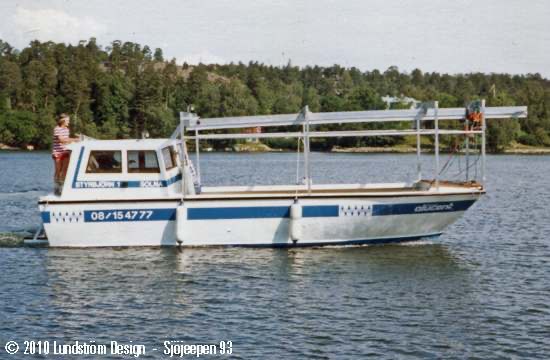

Designed by Claes Lundström Design, Sjöjeepen 93 with center telfer crane

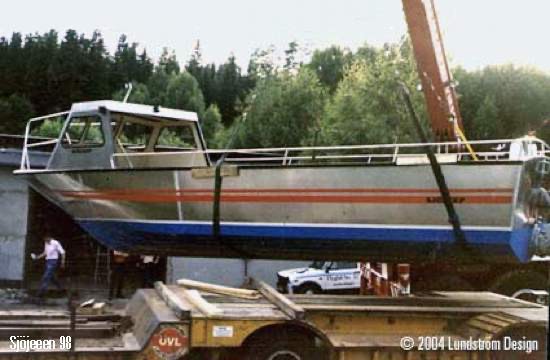

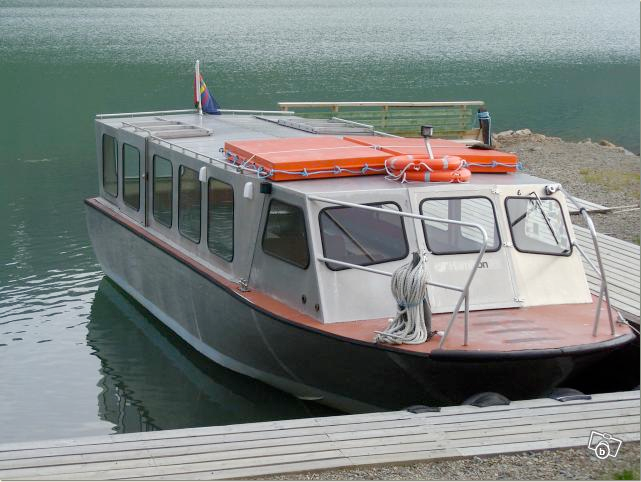

Designed by Claes Lundström Design, Sjöjeepen 98 Passenger boat with waterjet

Designed by Claes Lundström Design, Sjöjeepen 30 dingy

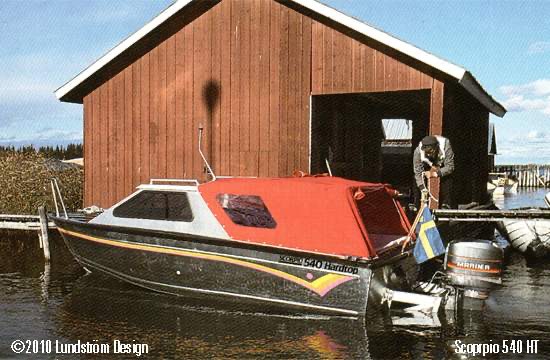

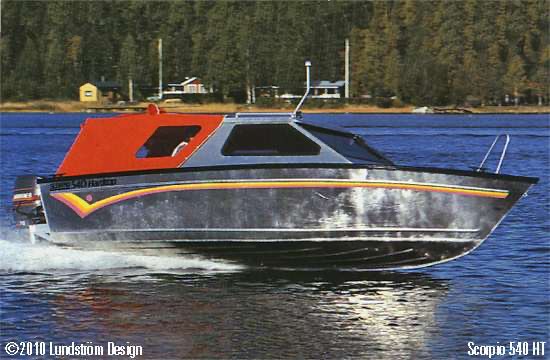

Designed by Claes Lundström Design, Scorpio 540 HT

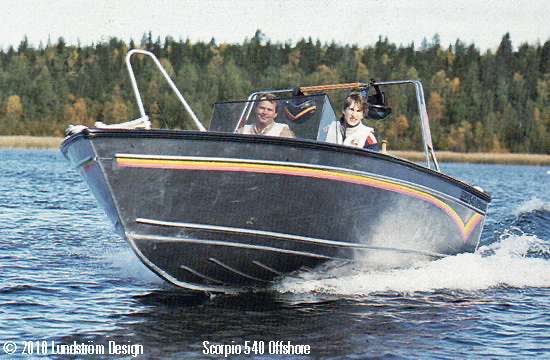

Designed by Claes Lundström Design, Scorpio 540 Center console

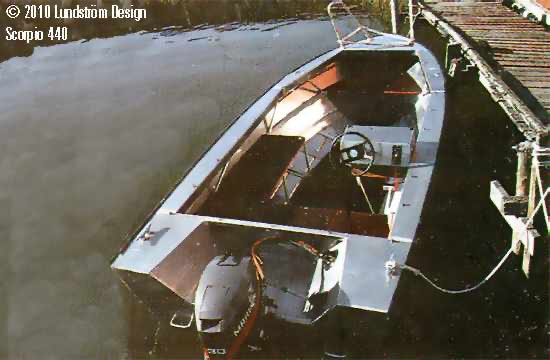

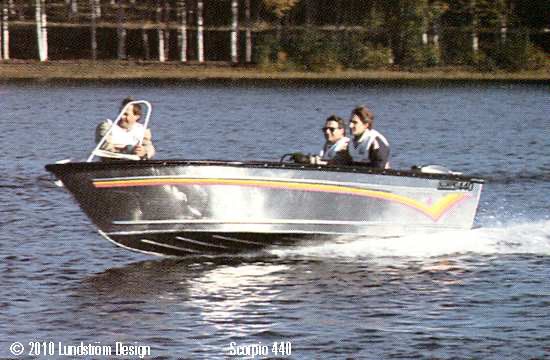

Designed by Claes Lundström Design, Scorpio 440

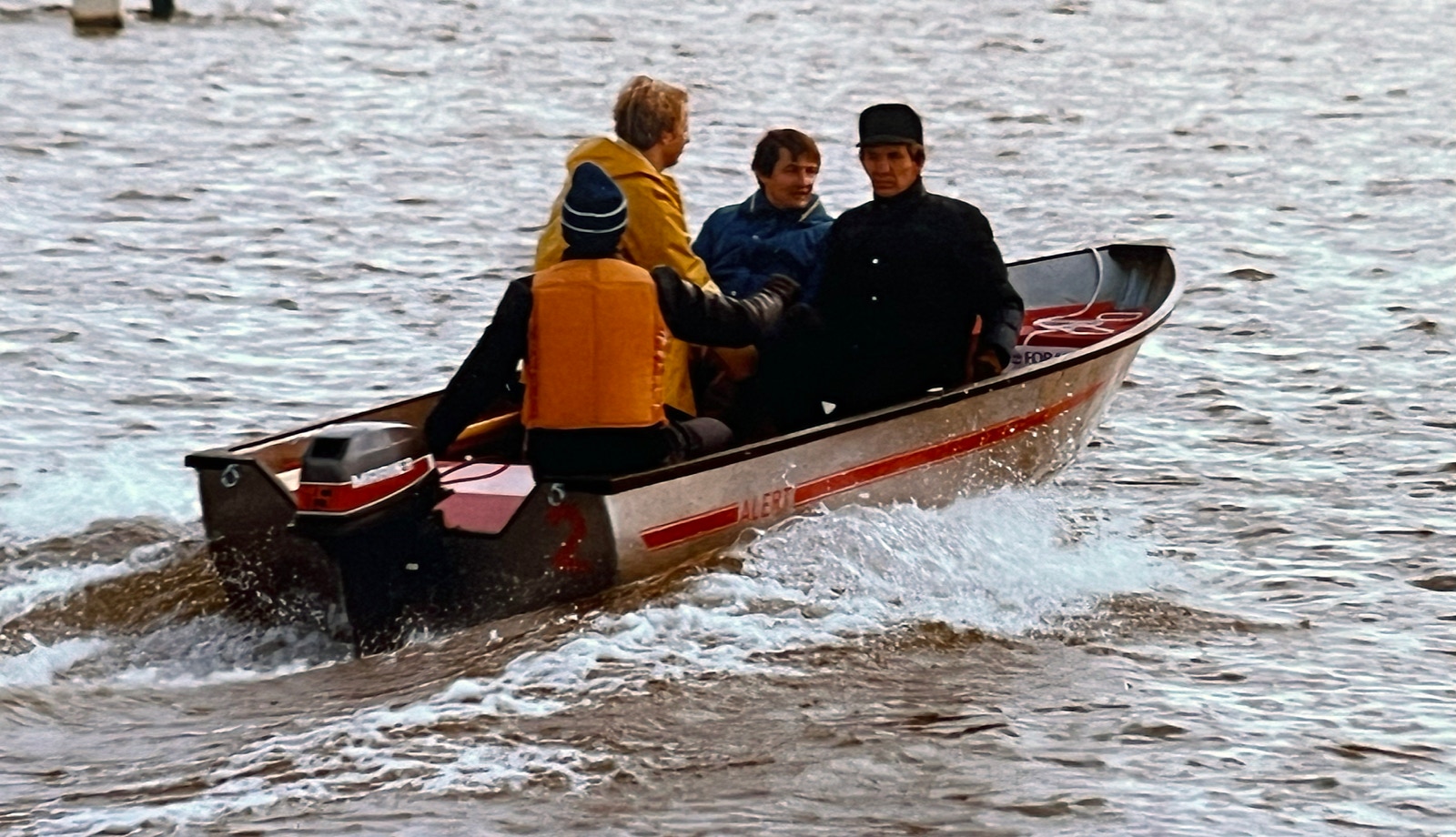

Designed by Claes Lundström Design, Alert

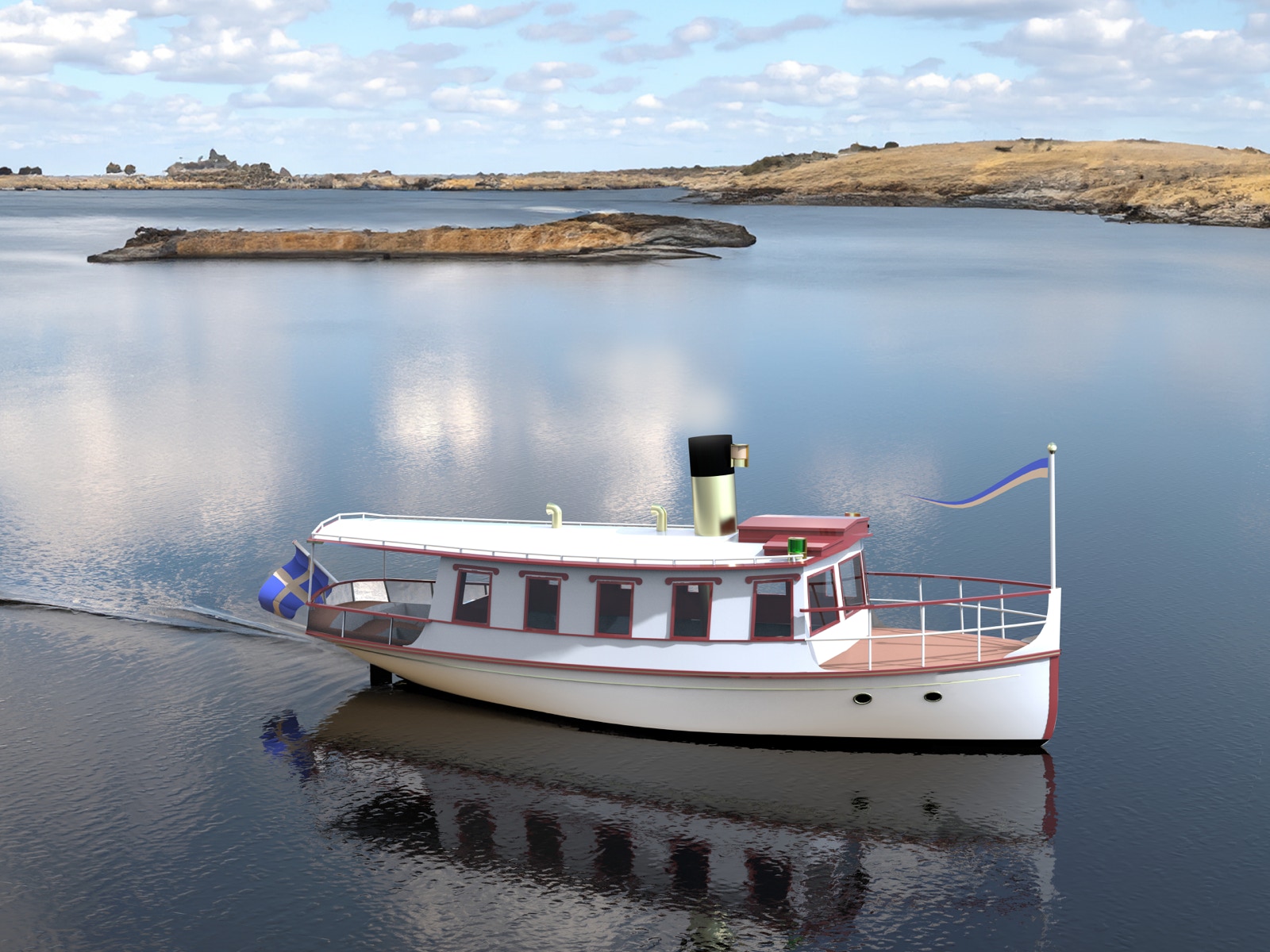

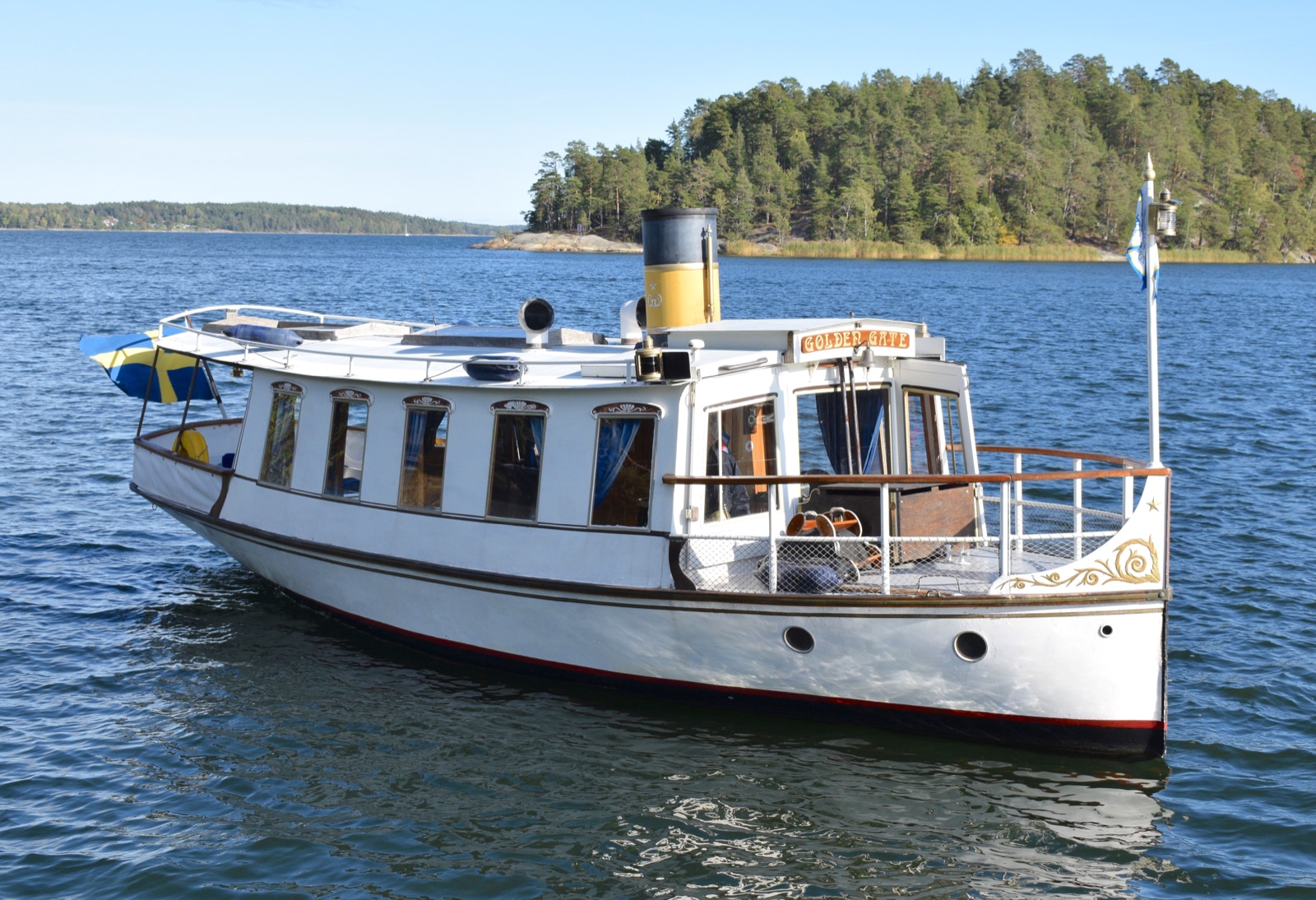

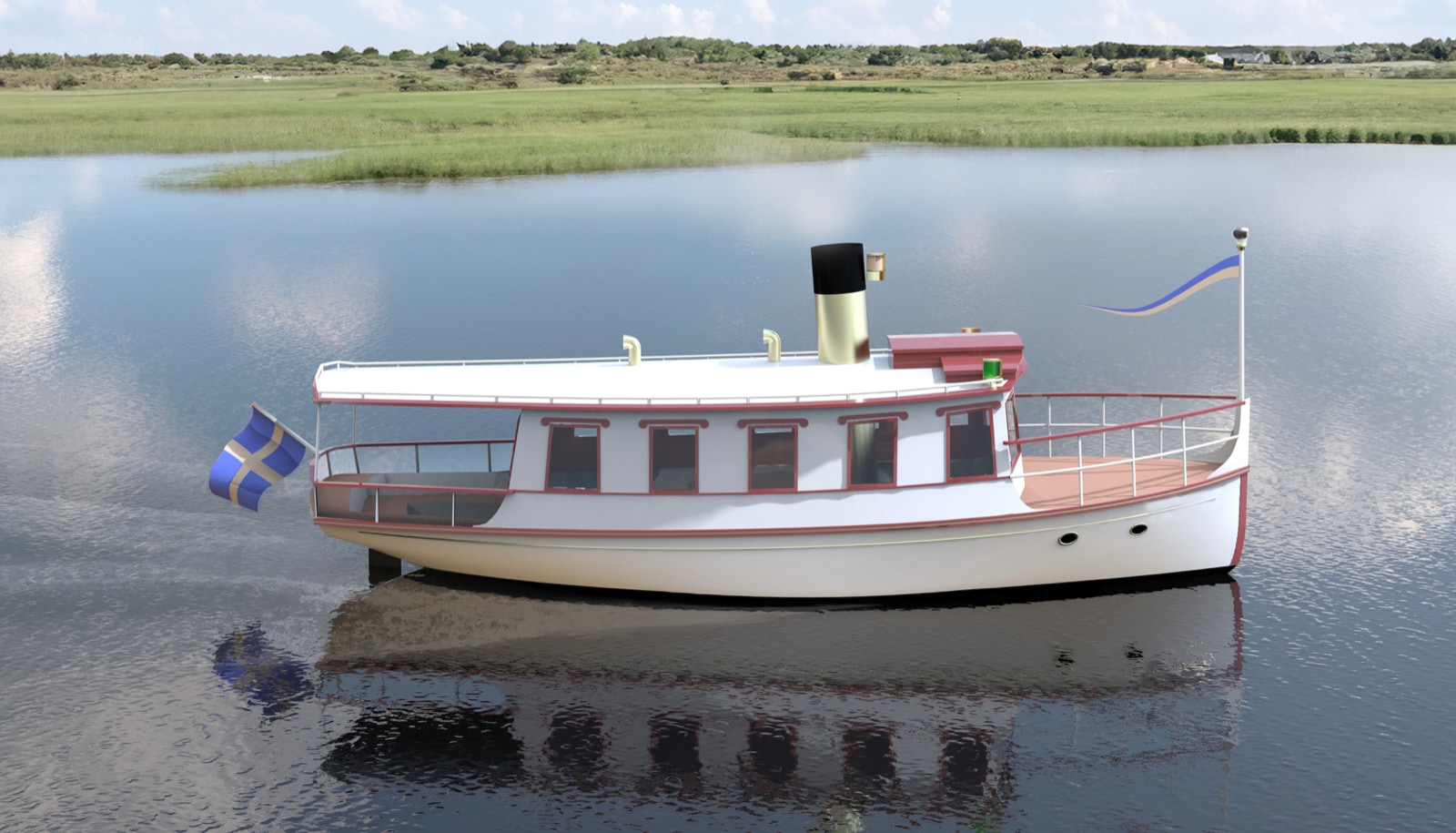

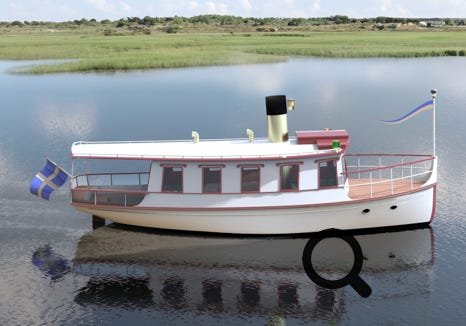

”Golden Gate” Steamer

Aluminium steamer 9,1 x 2,85 m, Powered by a 3 cylinder steam engine. The hull was built using our folding system for maximum strength and rounded shape.

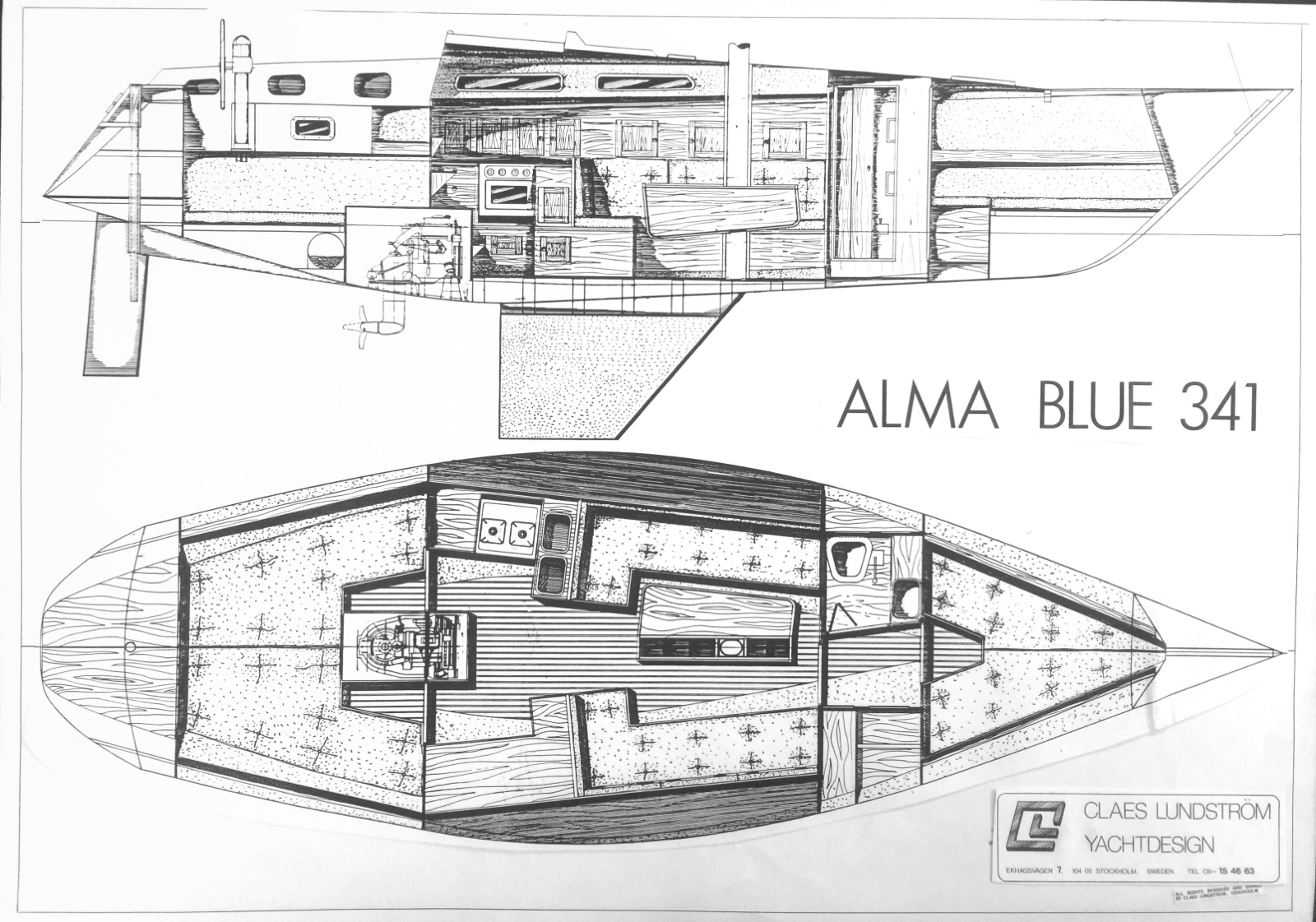

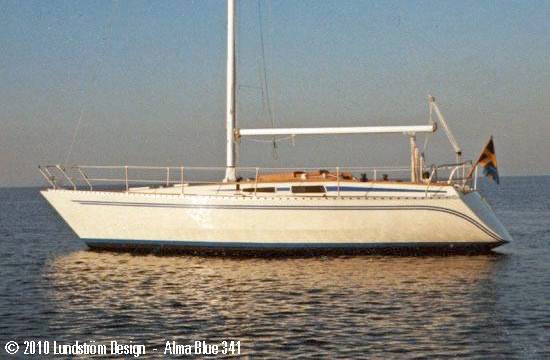

Designed by Claes Lundström Design, Alma Blue 341

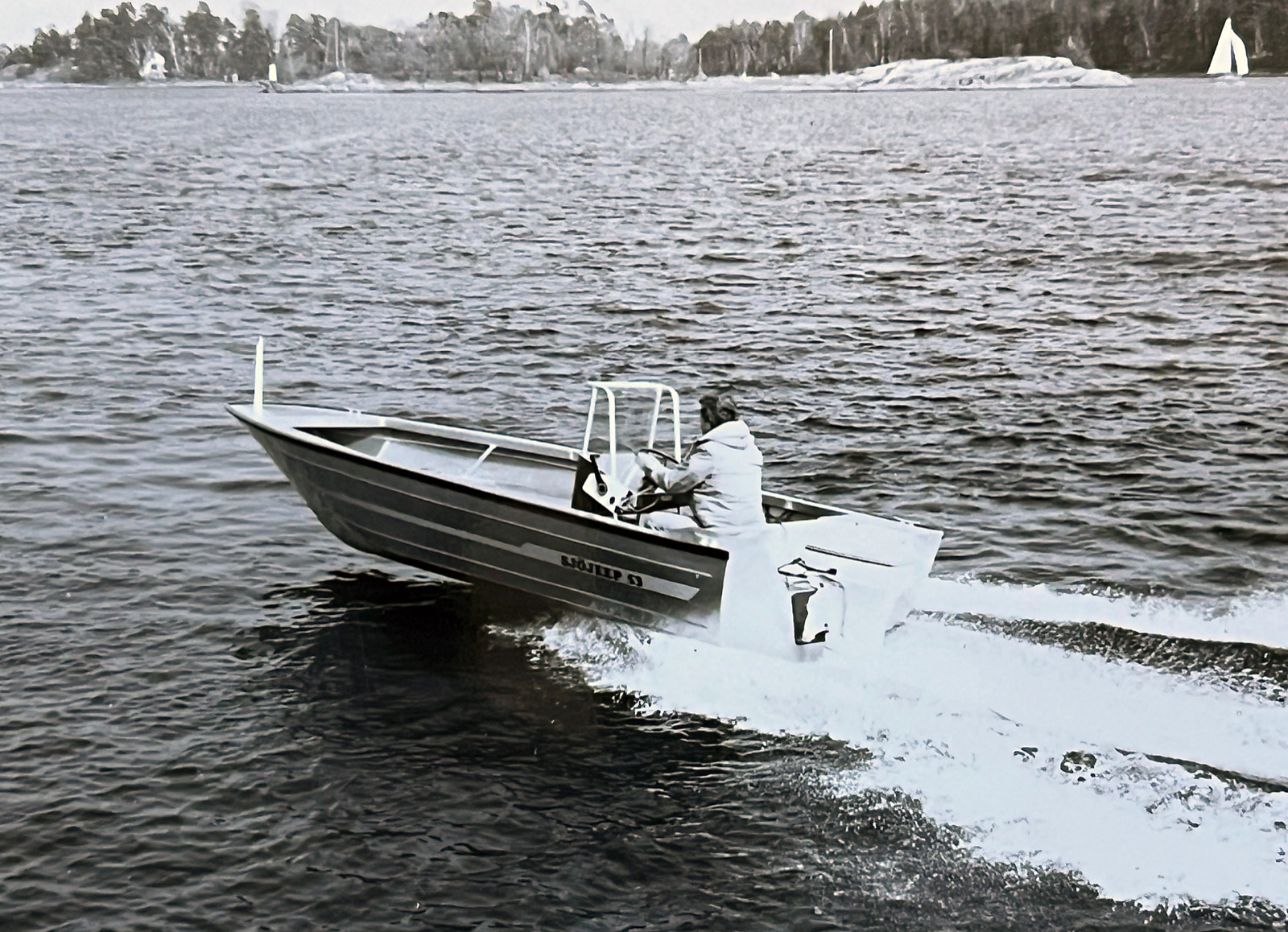

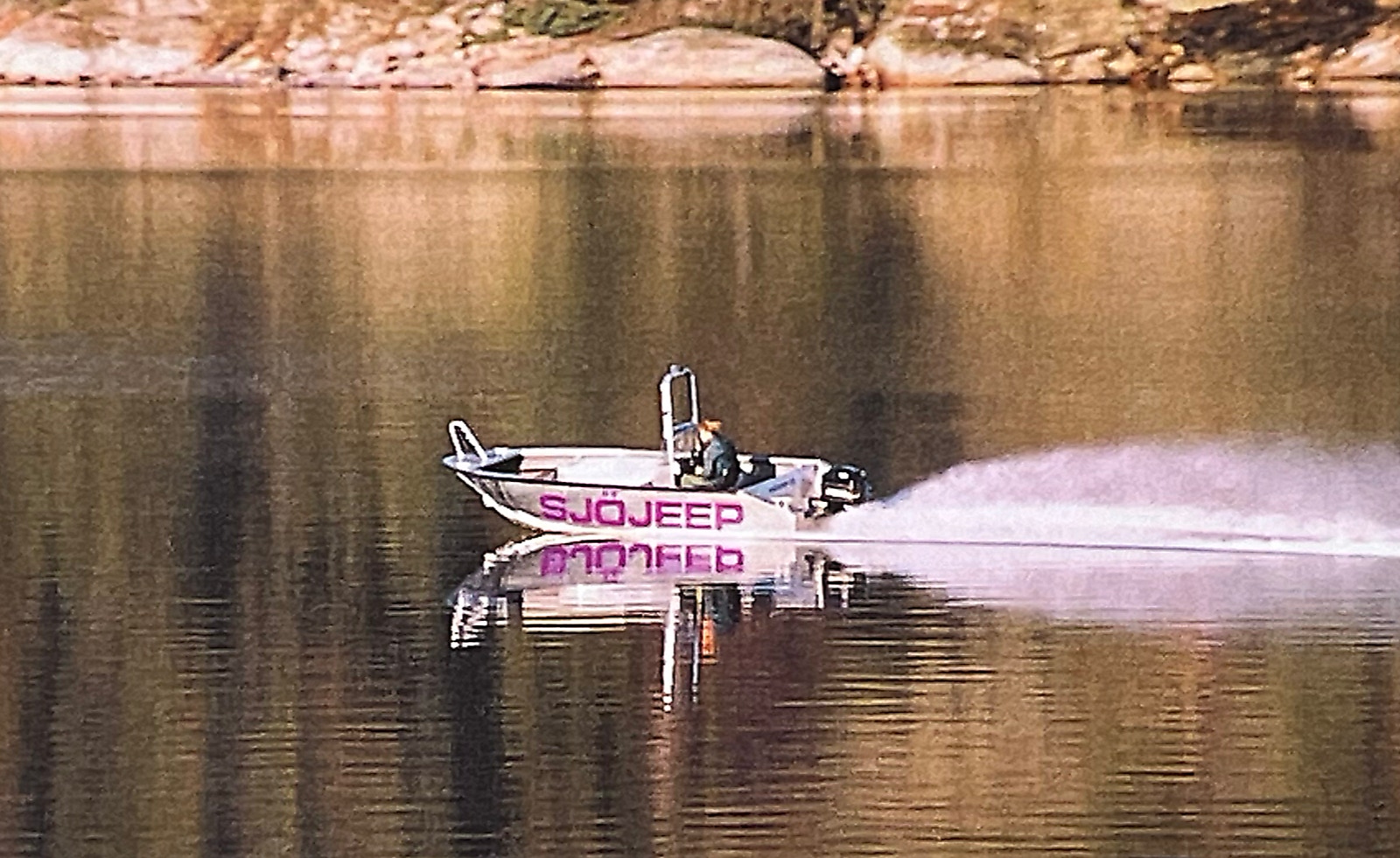

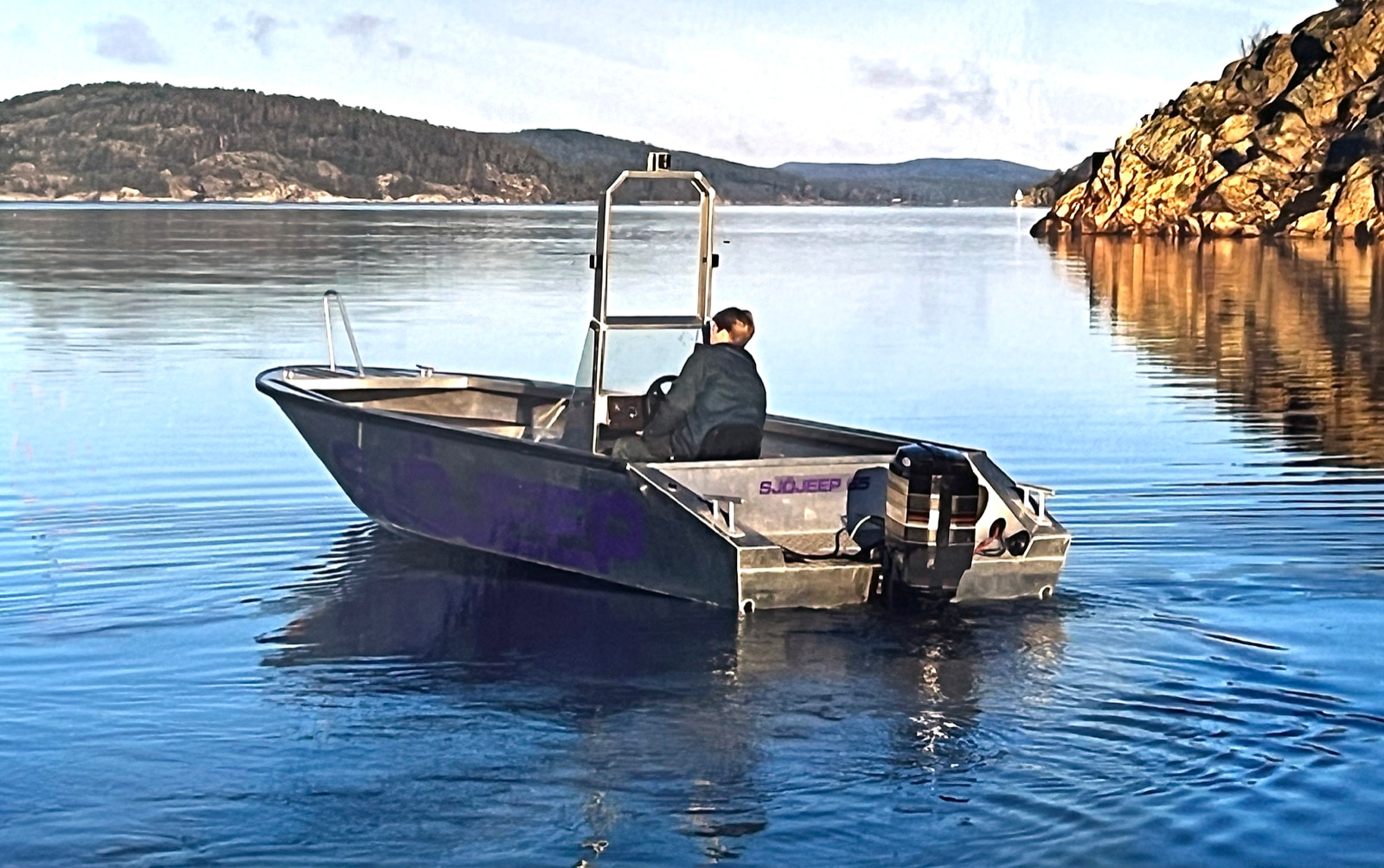

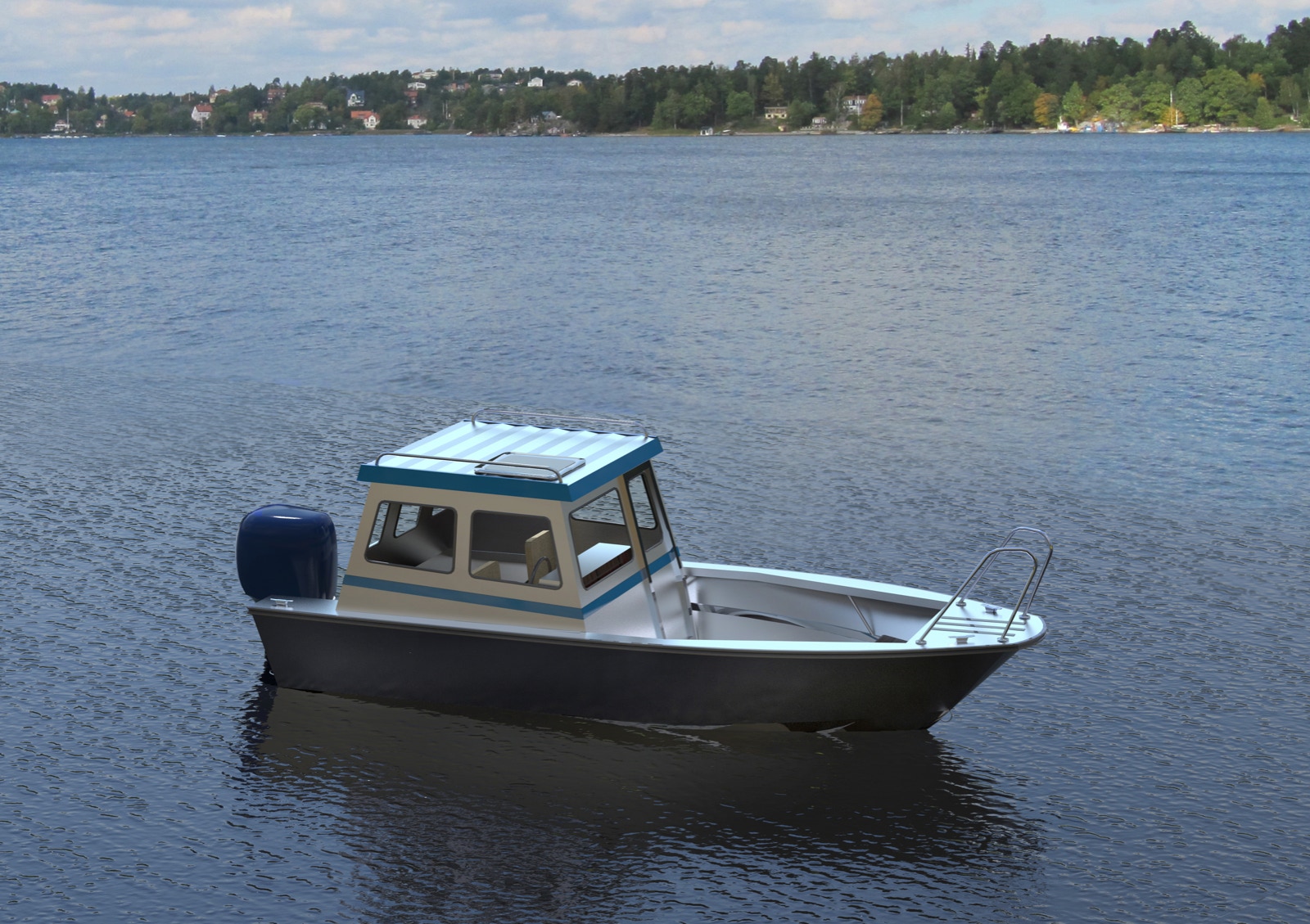

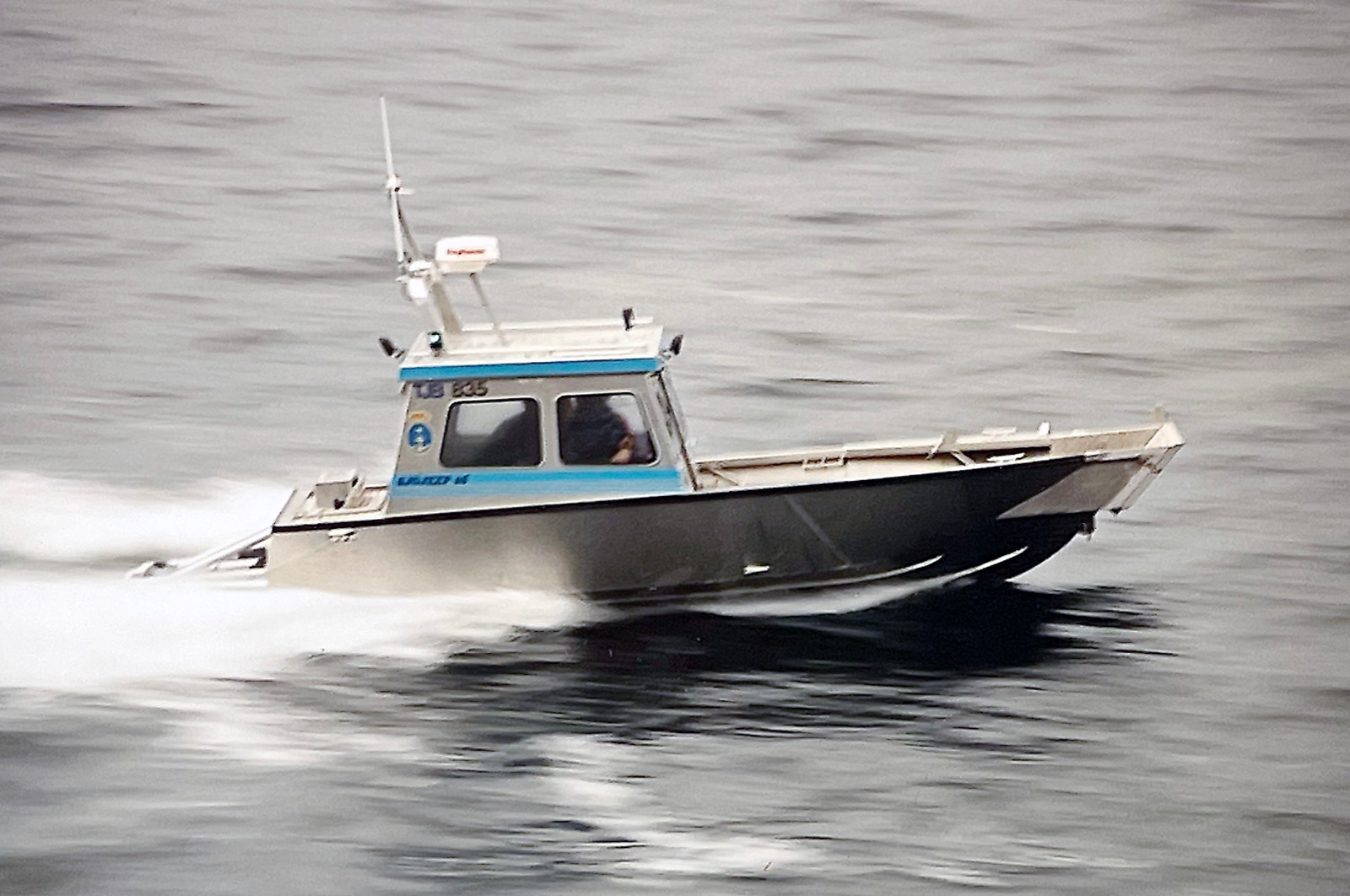

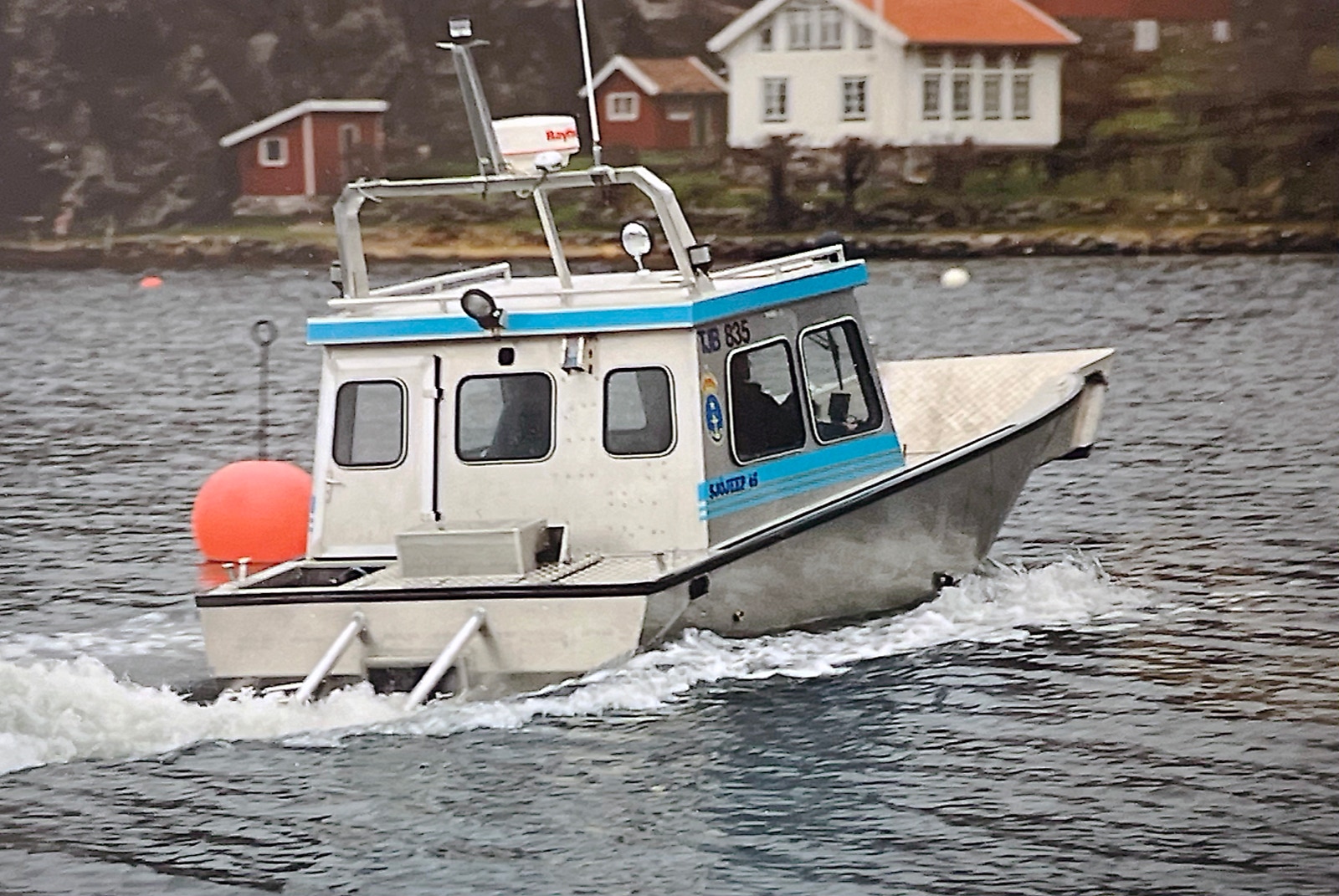

The Sjöjeepen line-up

The Sjöjeepen series first came into production in 1978 and consisted of models from 3.0 to 10.5 meters long, both as open boats with a steering console as well as boats with a cabin. The hull lineup consisted of 3.0, 3.8, 4.3, 4.8, 5.3, 5.8, 6.3, 6.8, 7.3, 7.8, 9.3 and 9.8 meter. The hulls where built with our folding system for maximum strength and rounded shape.

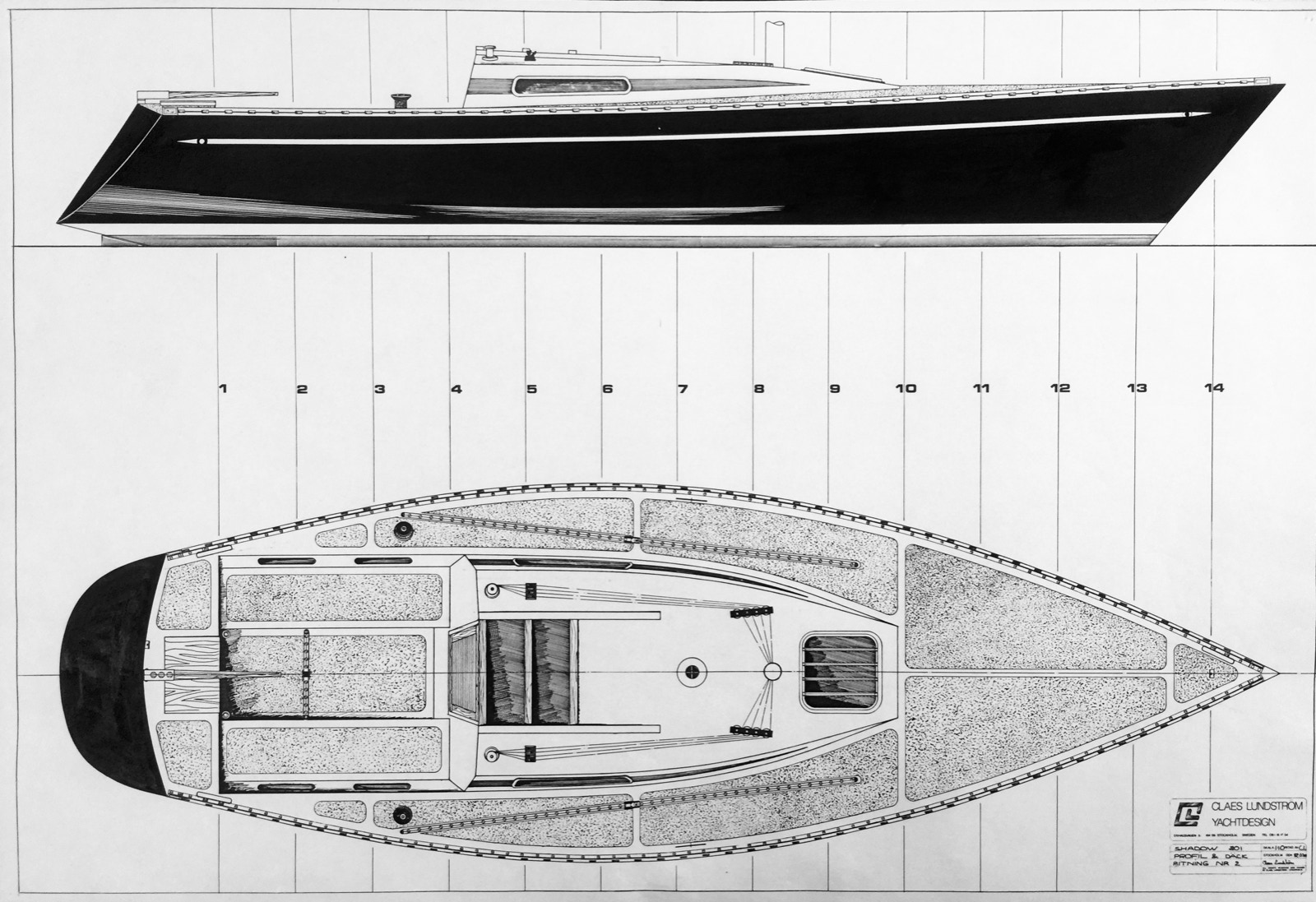

Designed by Claes Lundström Design, Shadow 801

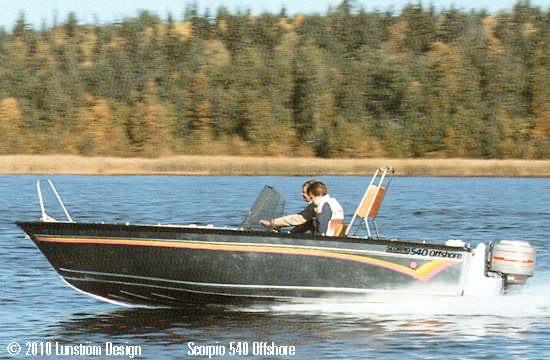

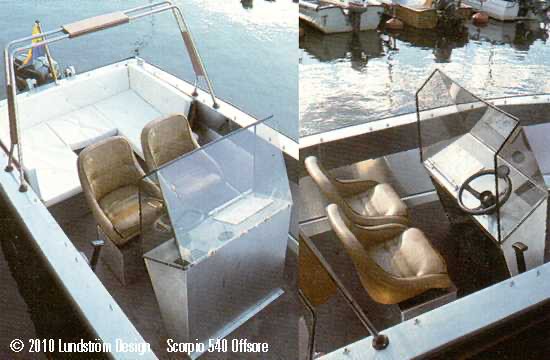

The Scorpio line-up

The Scorpio range consisted of models ranging from 4.4 to 5.4 meters in length, with both open console versions and cab versions. The hulls where built with our folding system for maximum strength and rounded shape.

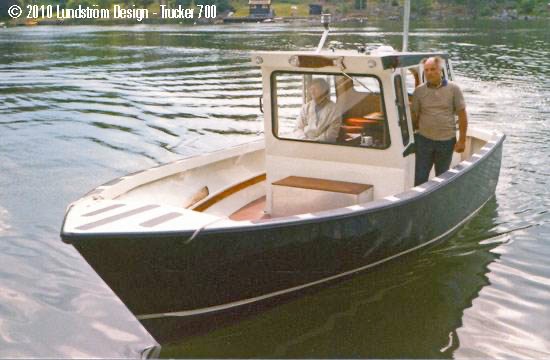

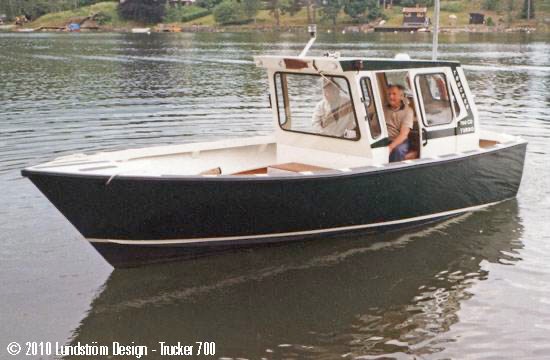

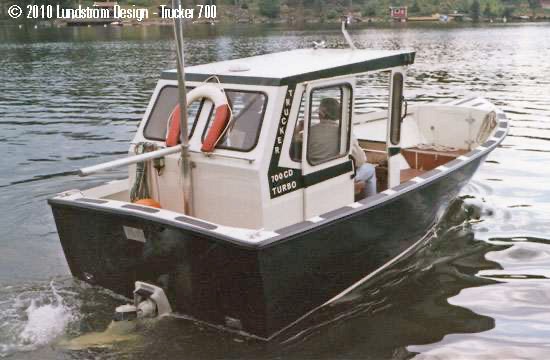

Designed by Claes Lundström Design, Trucker 700

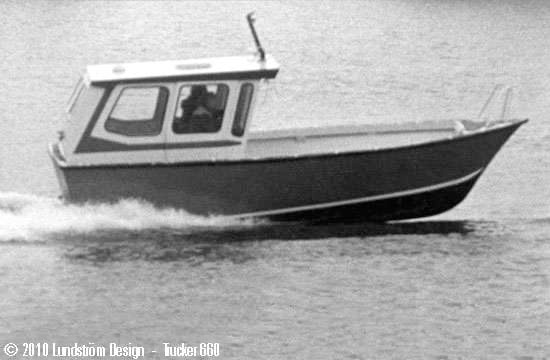

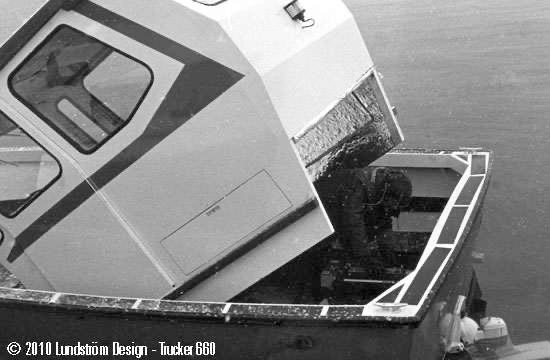

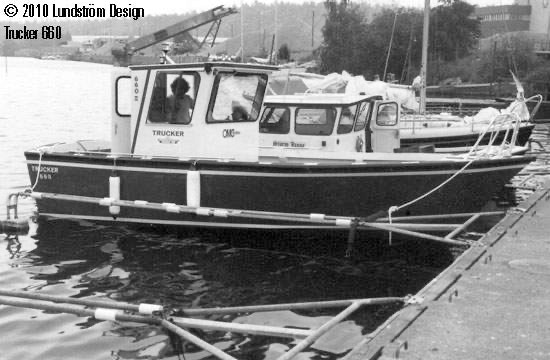

Designed by Claes Lundström Design, Trucker 660

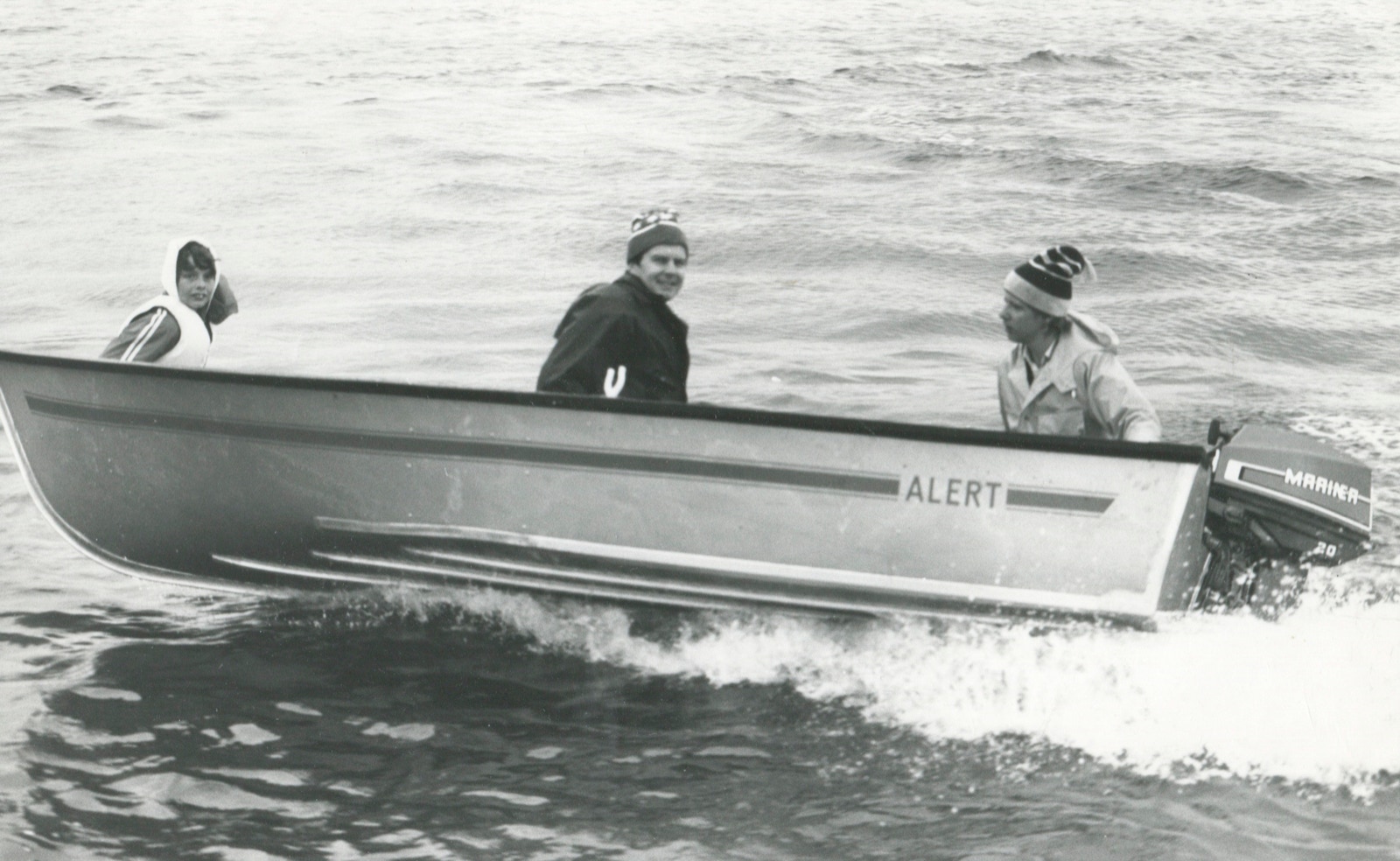

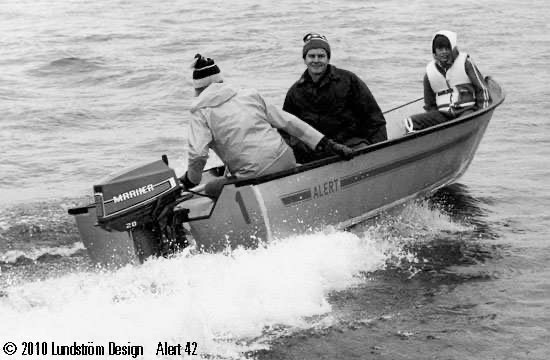

Alert

The Alert lineup was a small aluminium boat designed for Gränges Aluminium in Sweden. The hull was built using our folding system for maximum strength and rounded shape.

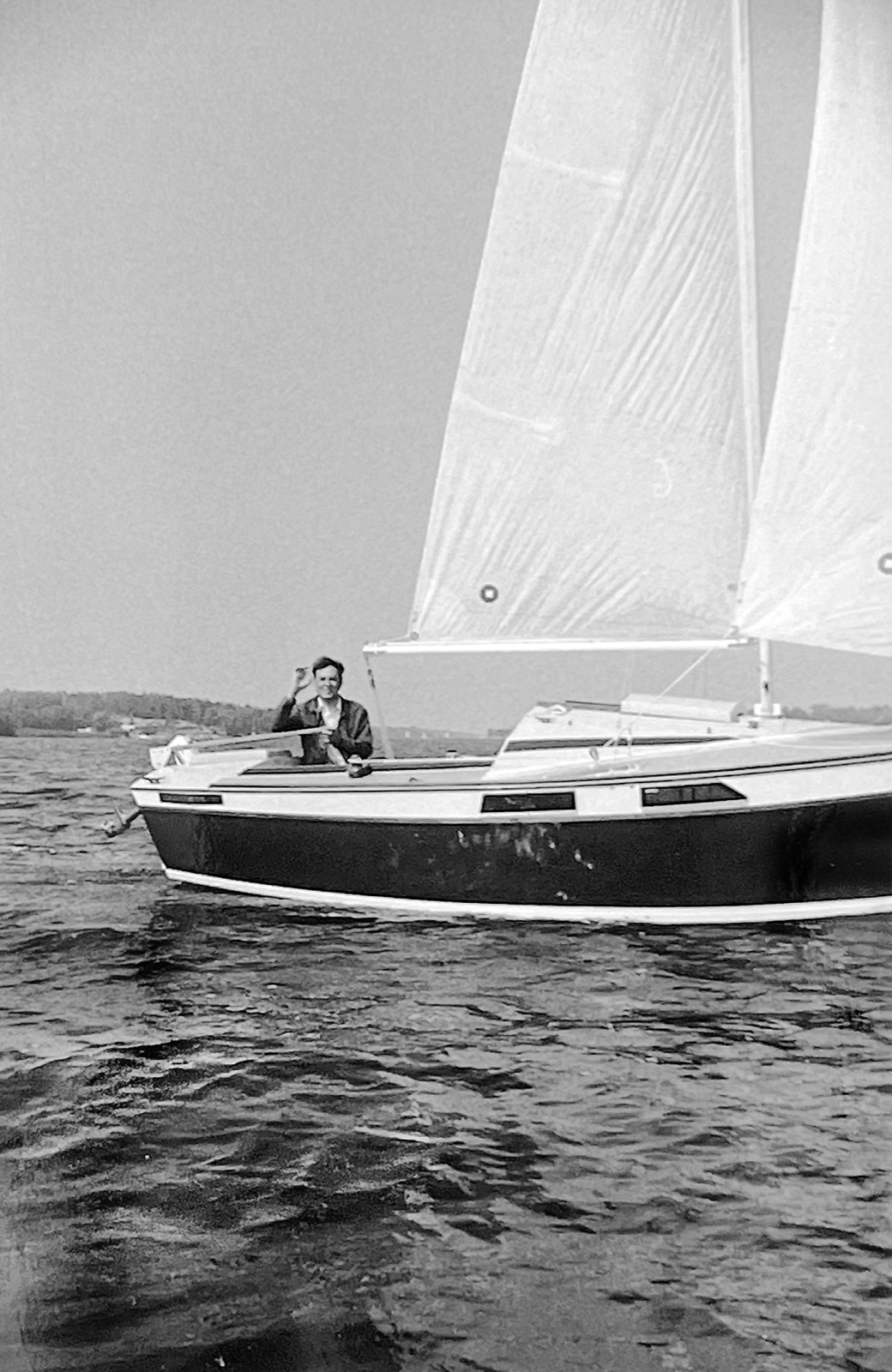

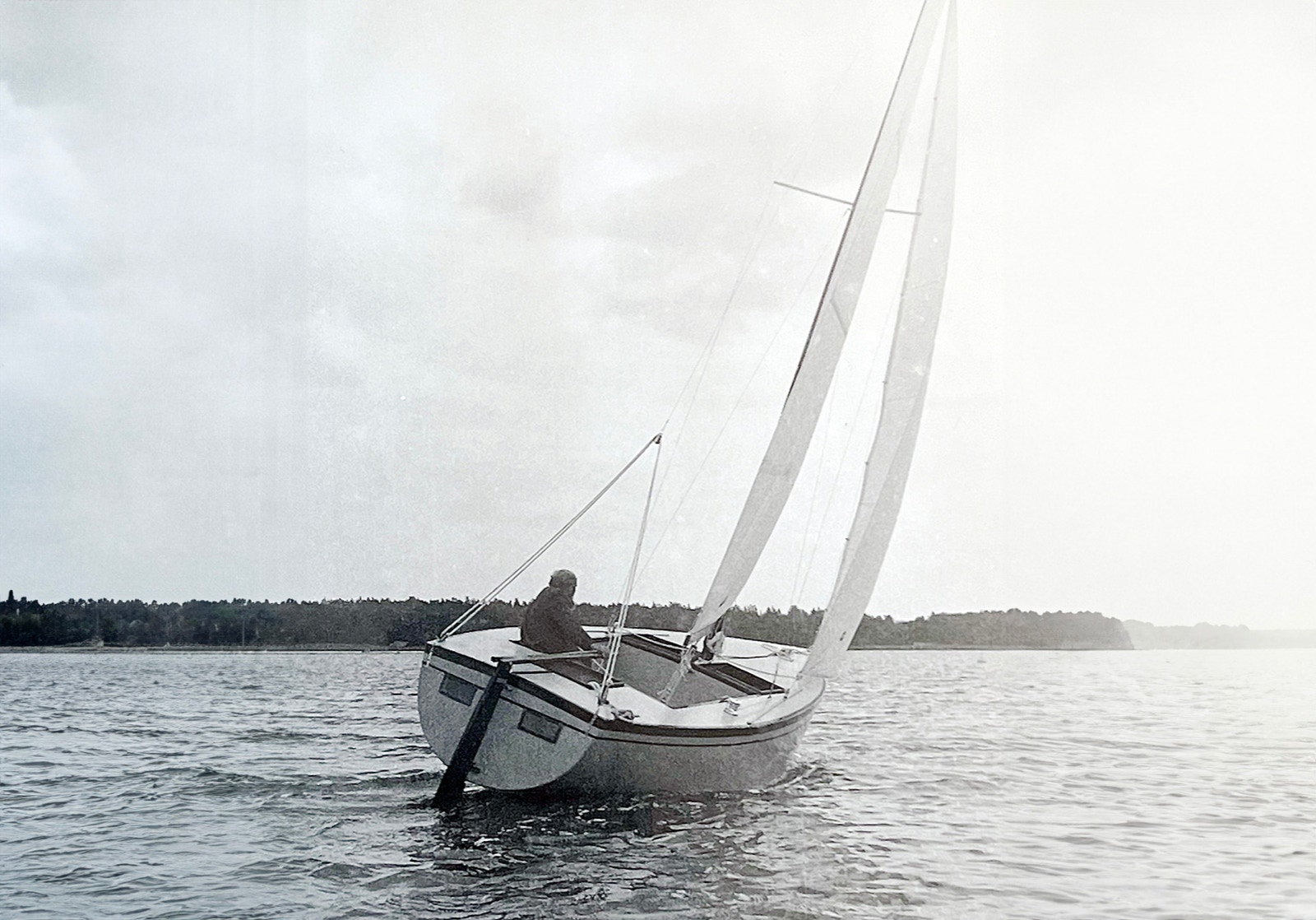

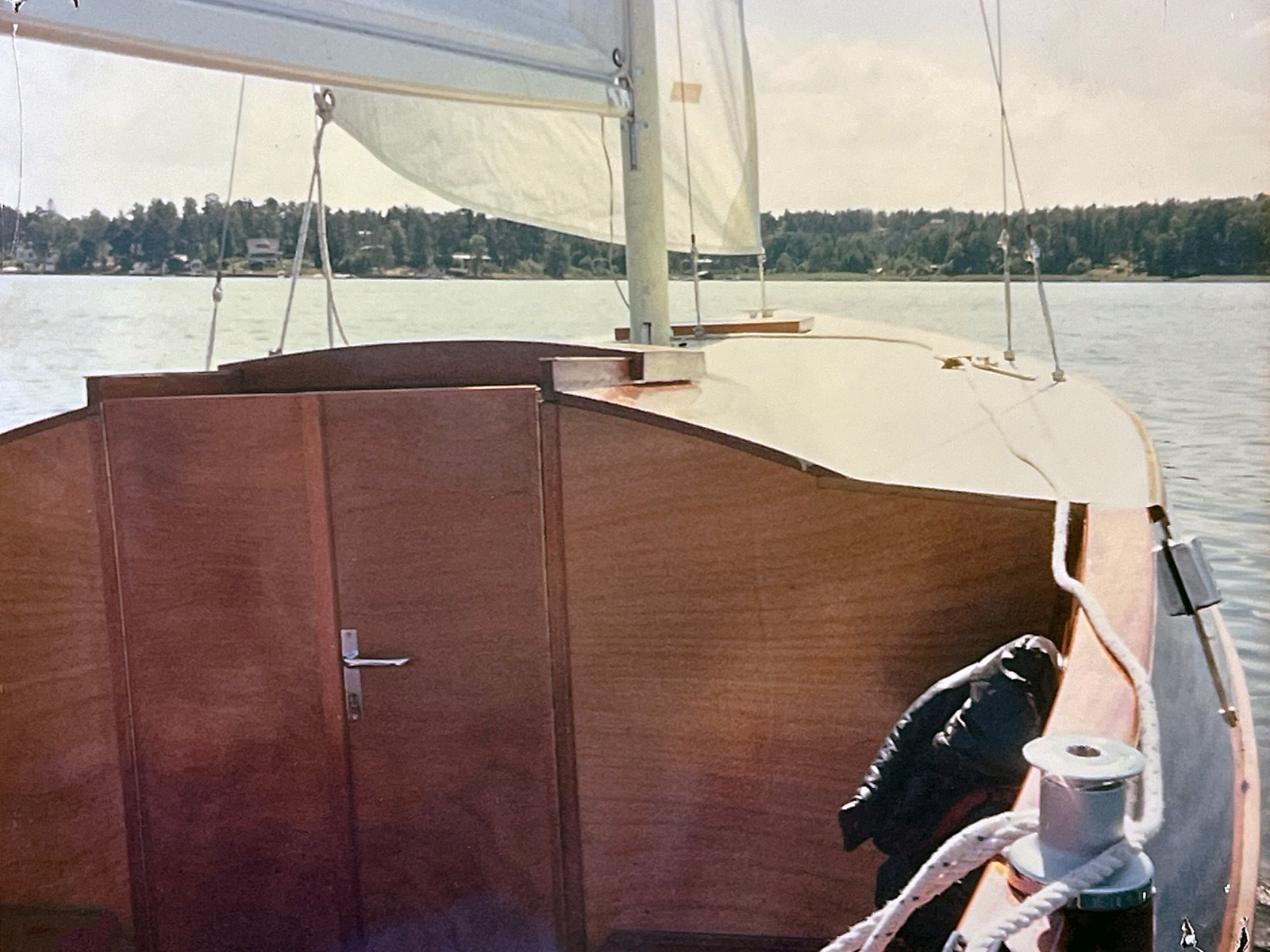

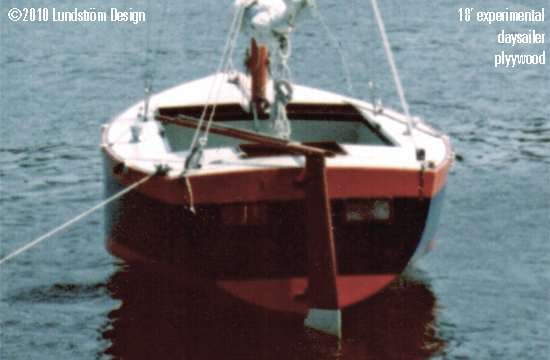

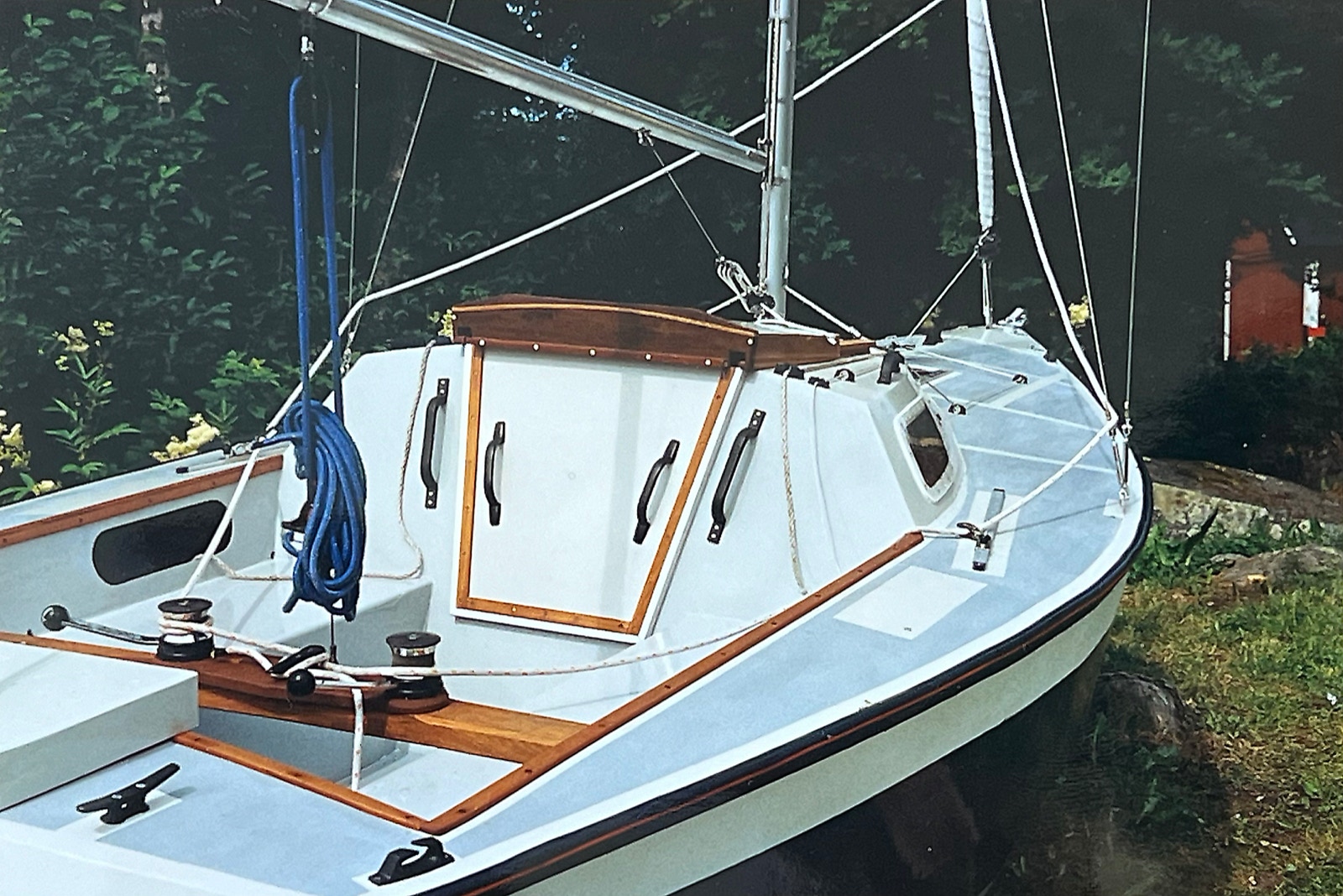

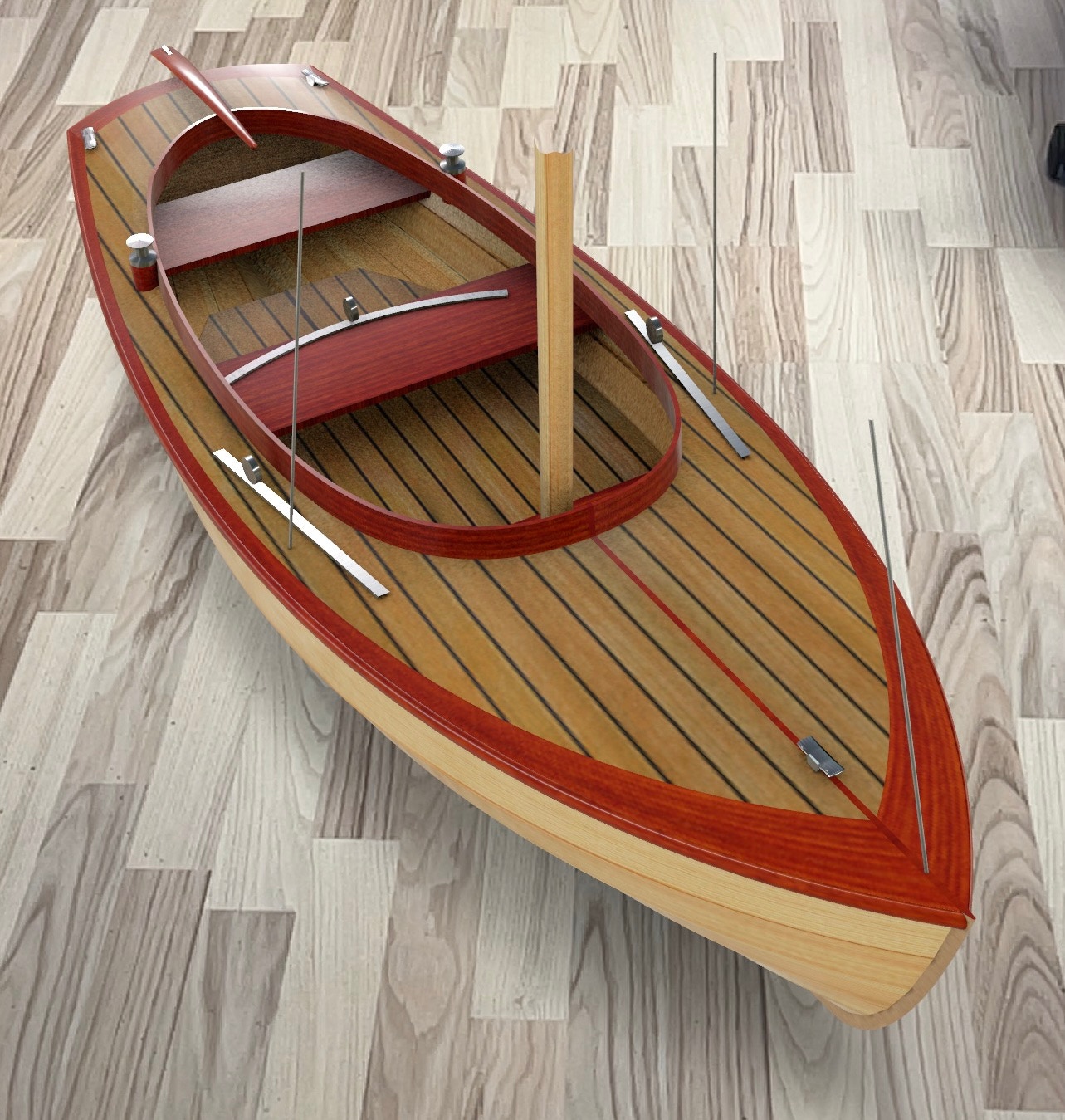

Designed by Claes Lundström Design, Plywood daysailer

Designed by Claes Lundström Design, Plywood daysailer stitch and glue

Designed by Claes Lundström Design, Plywood daysailer Aluminium

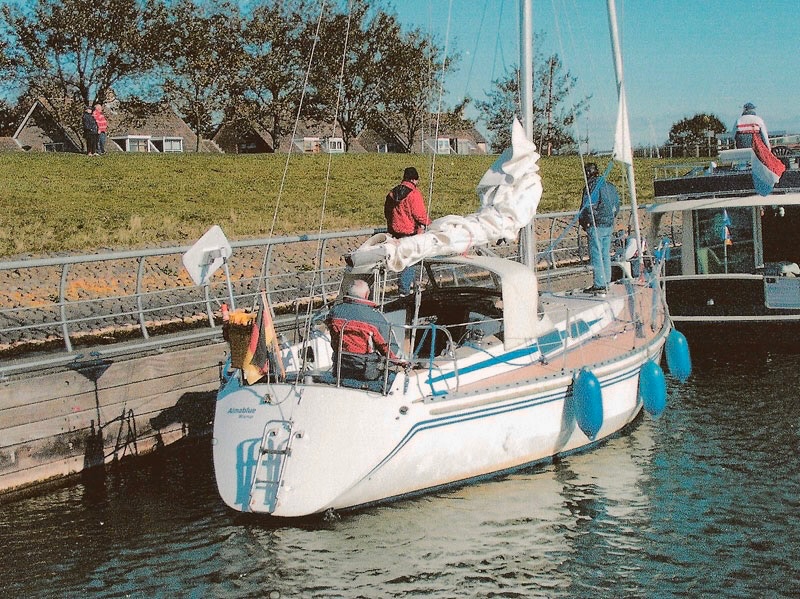

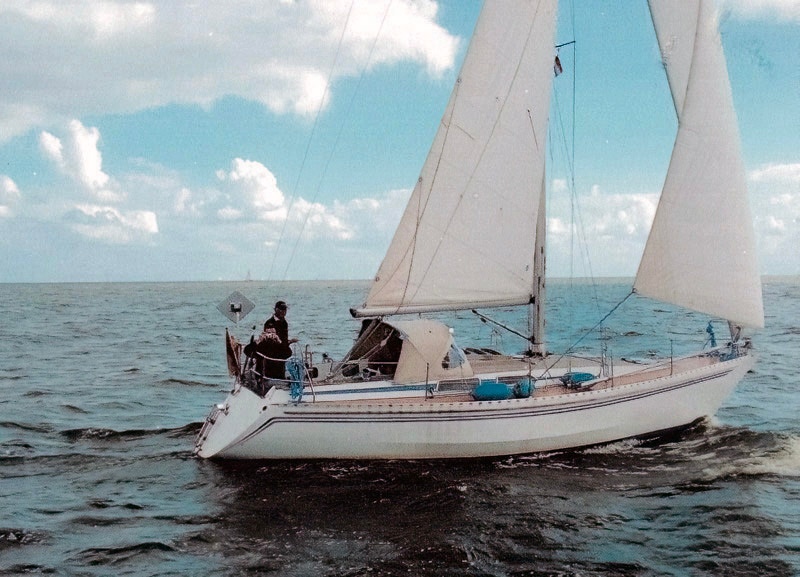

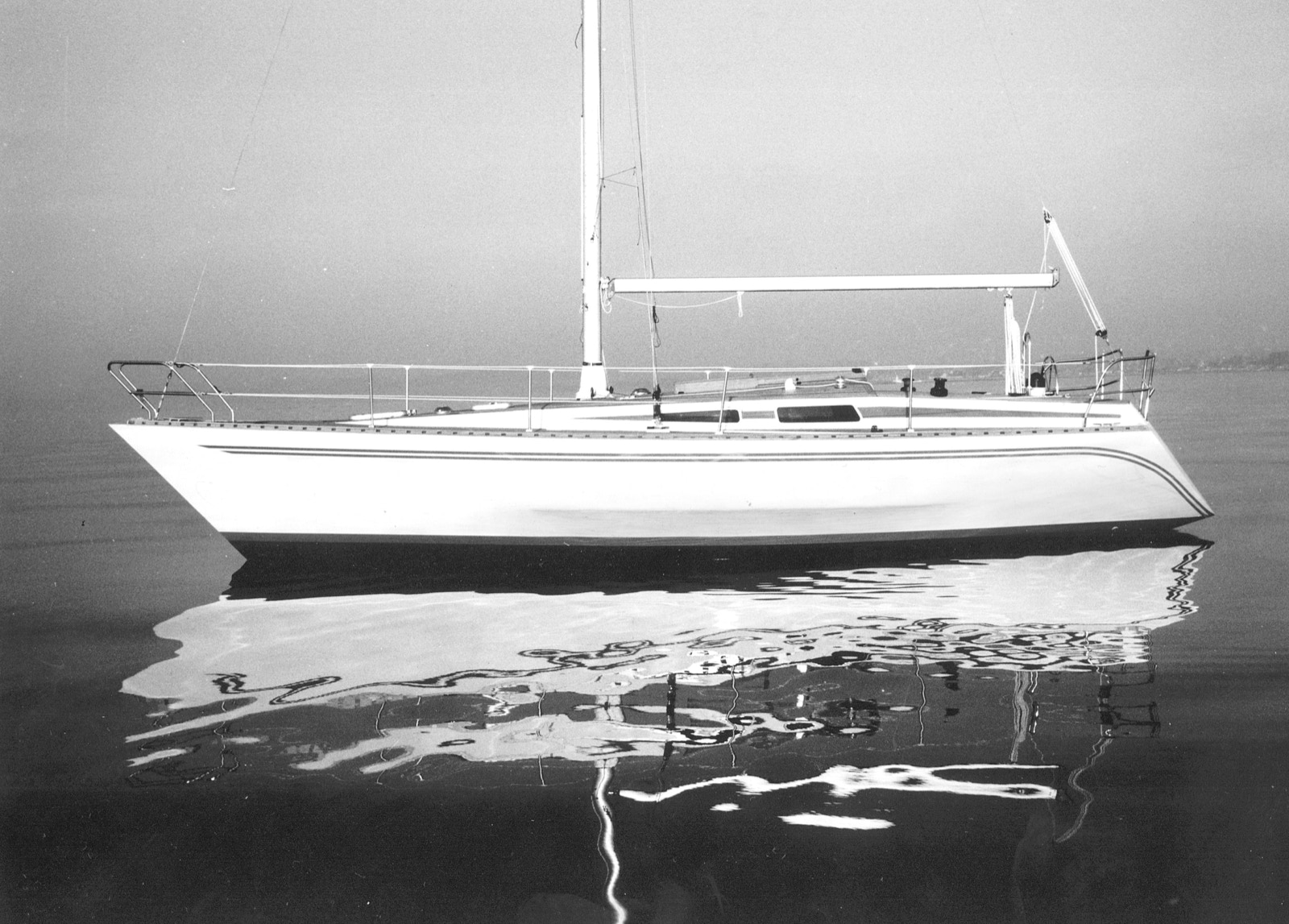

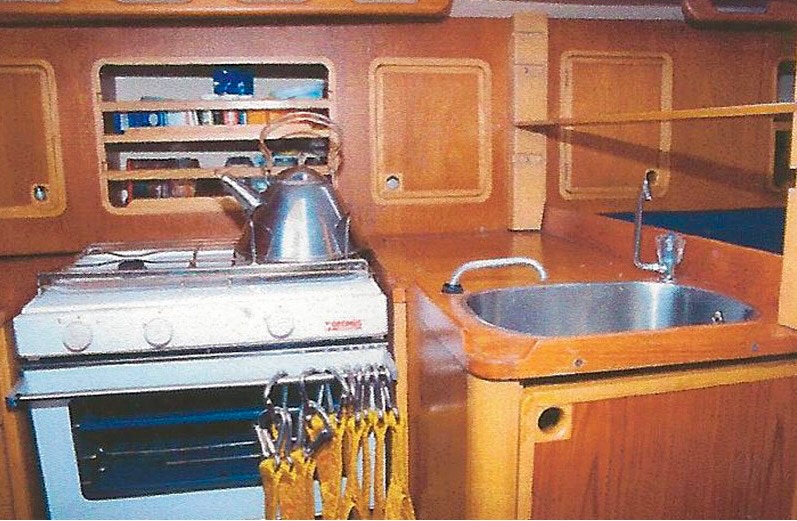

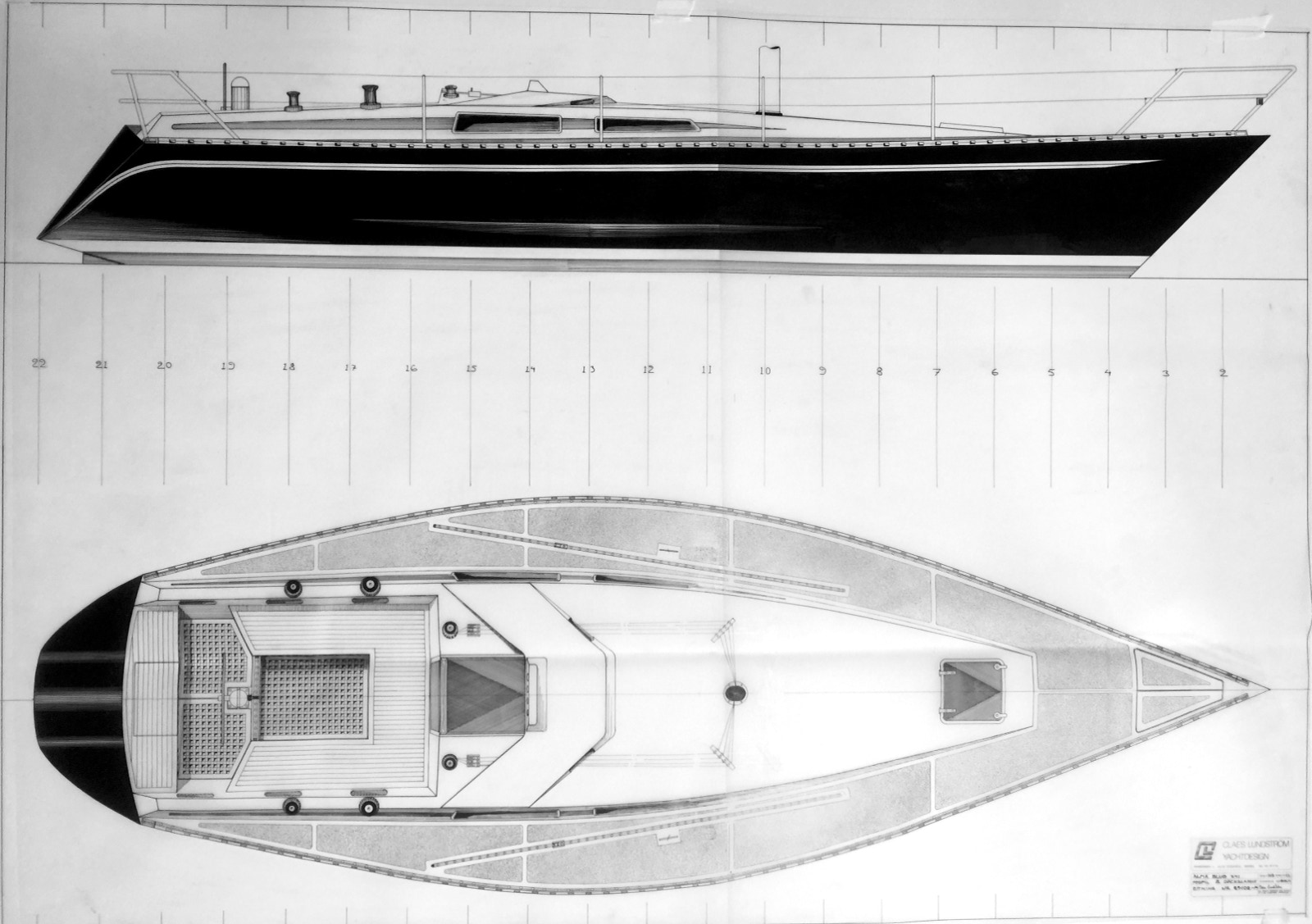

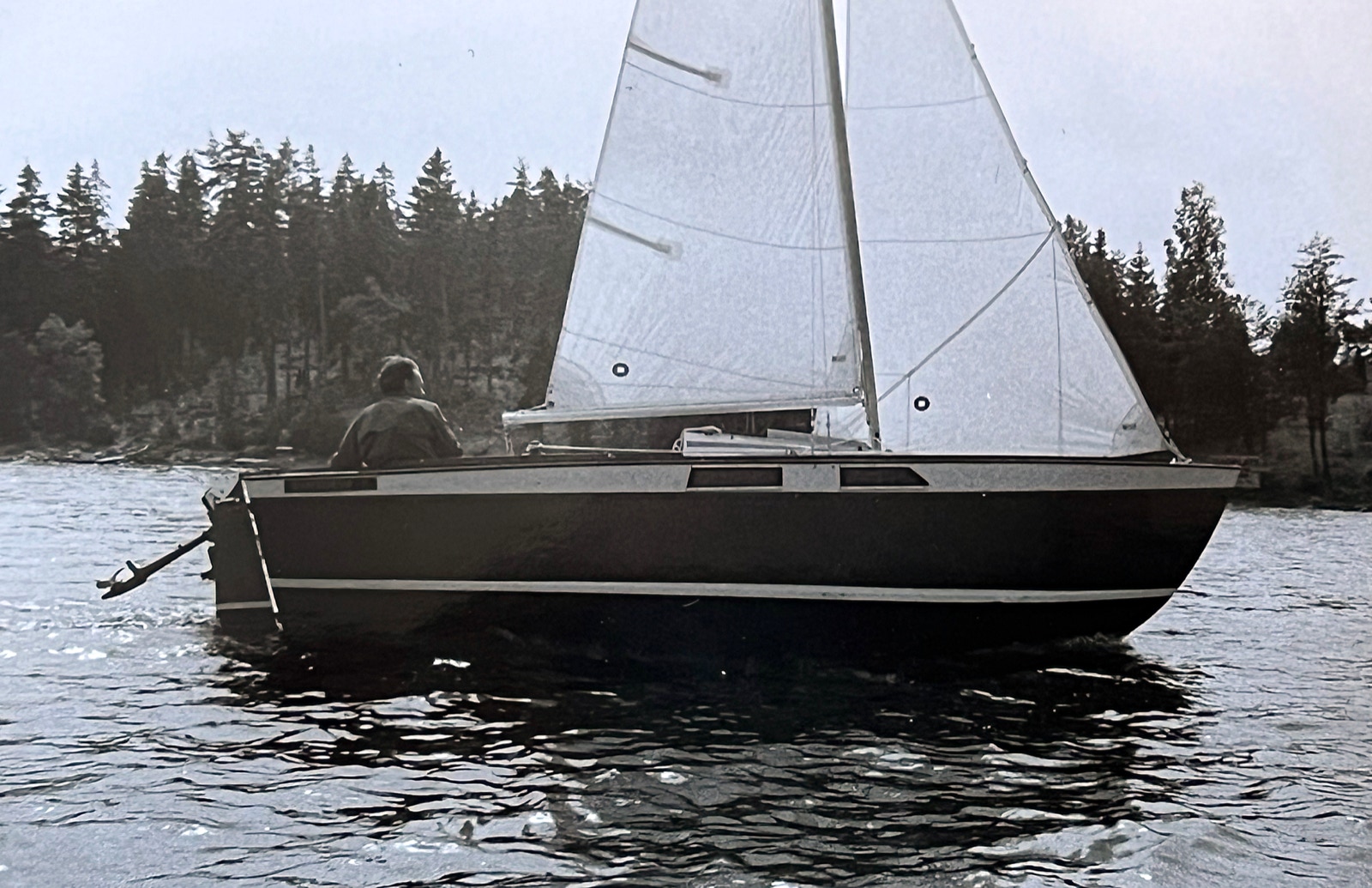

Alma Blue 345

Alma Blue 345 was an aluminium sailboat 10.5 x 3.5 m, built at Landskronavarvet in southern Sweden. The hull was built using our folding system for maximum strength and rounded shape.

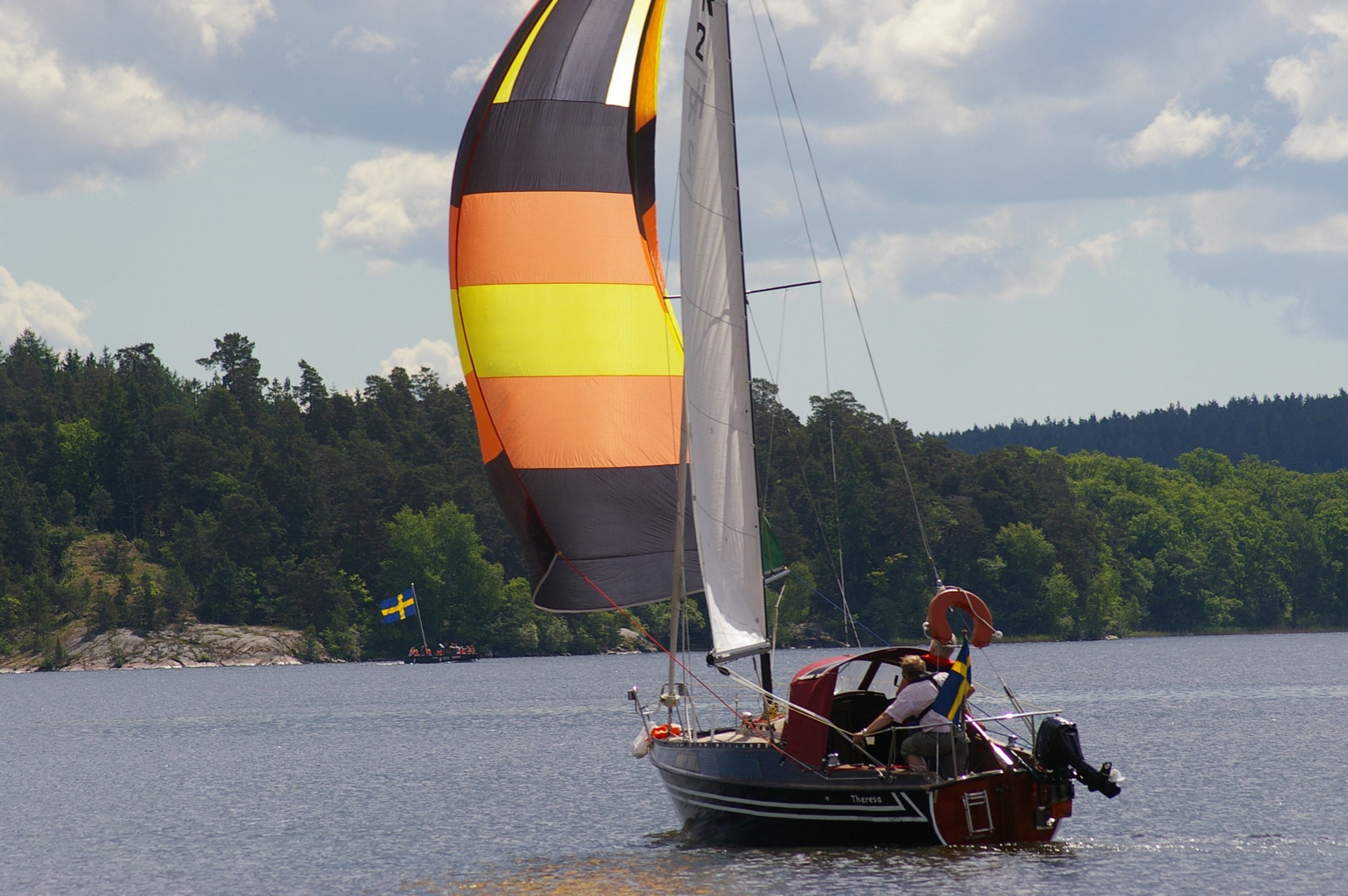

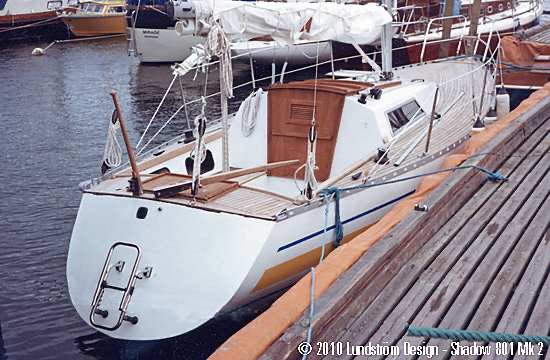

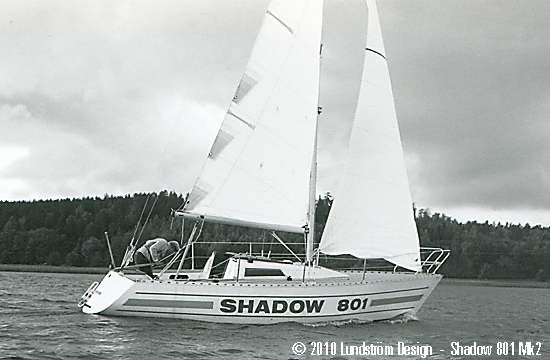

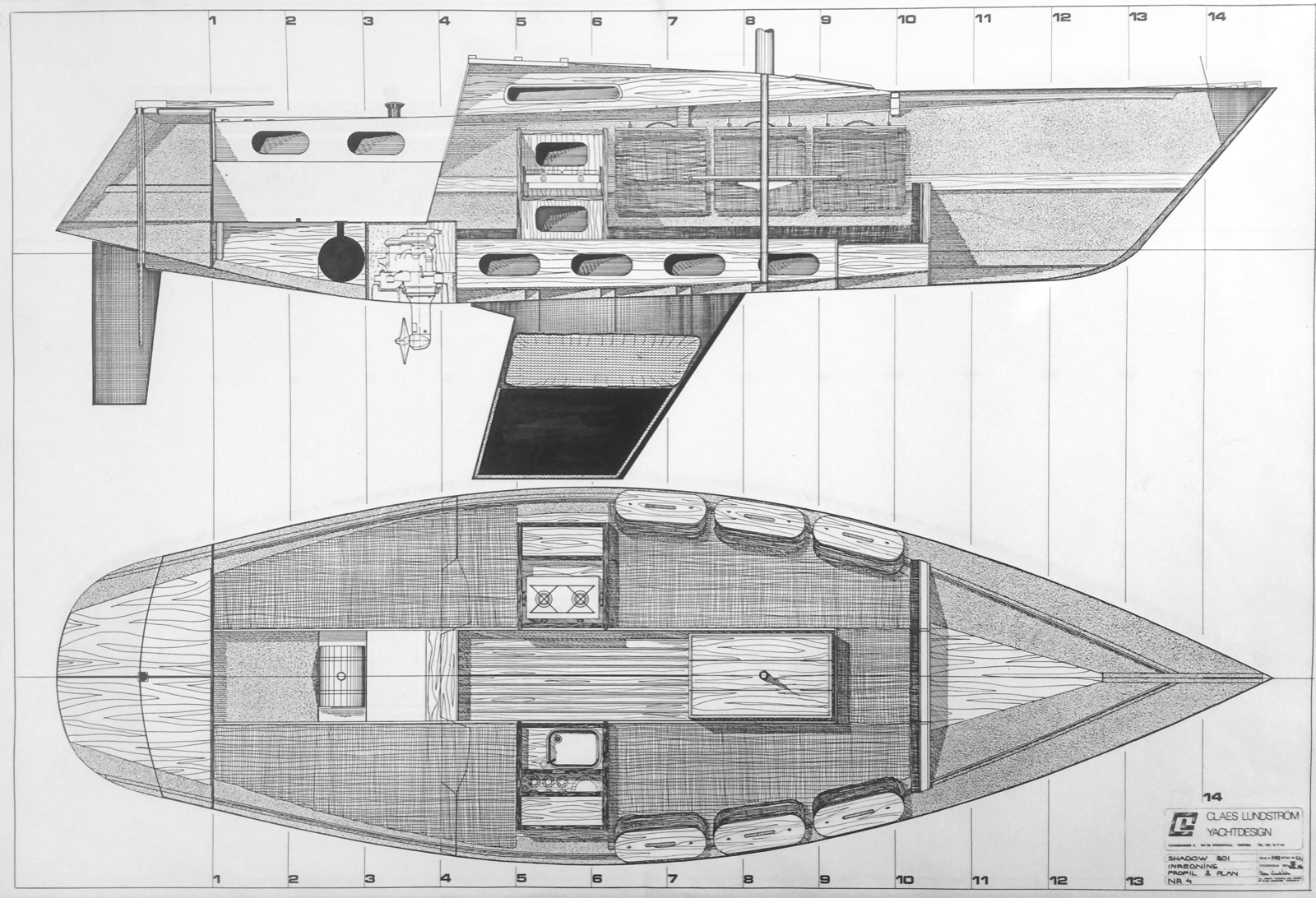

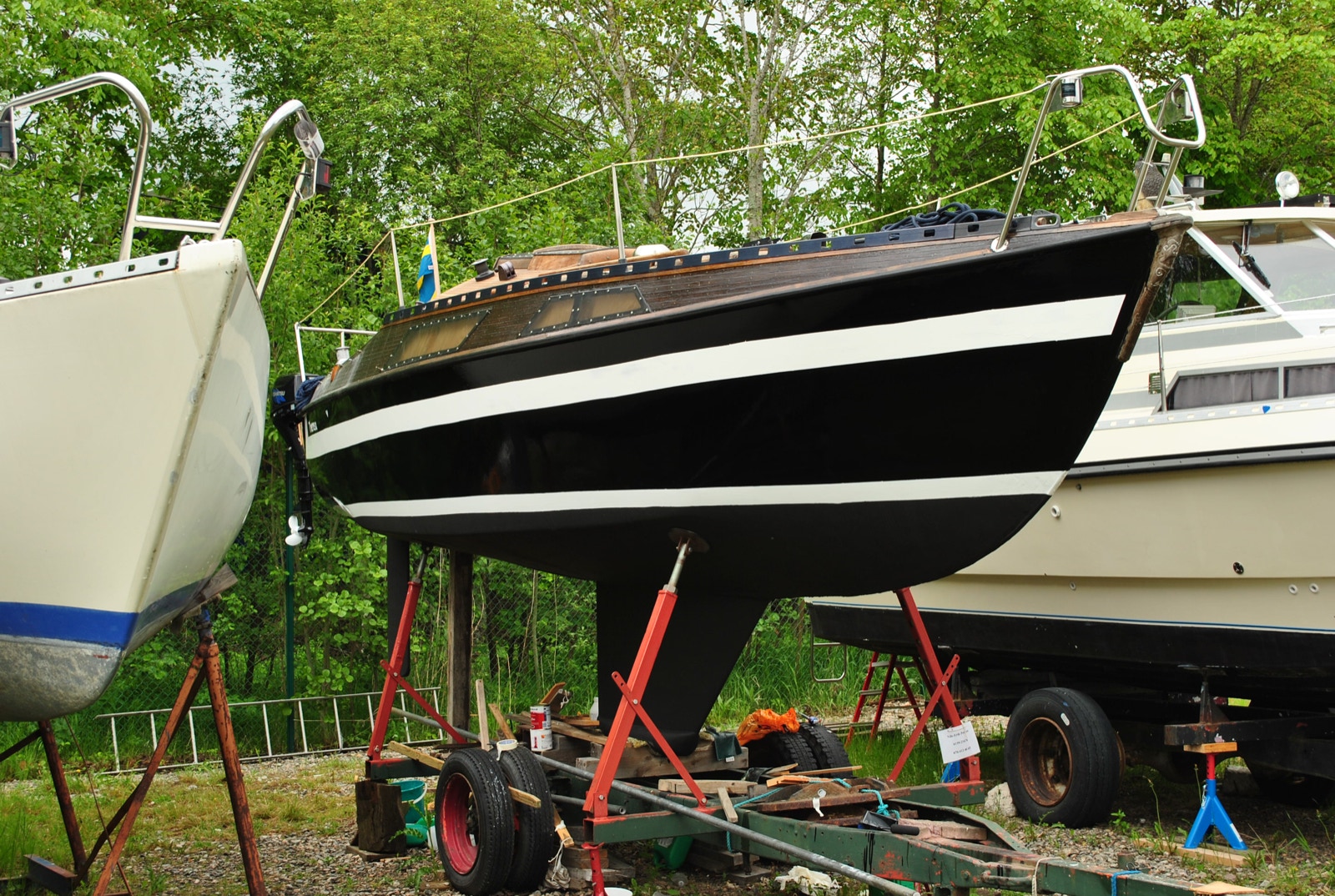

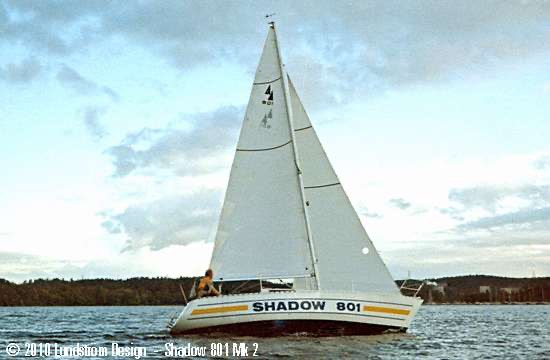

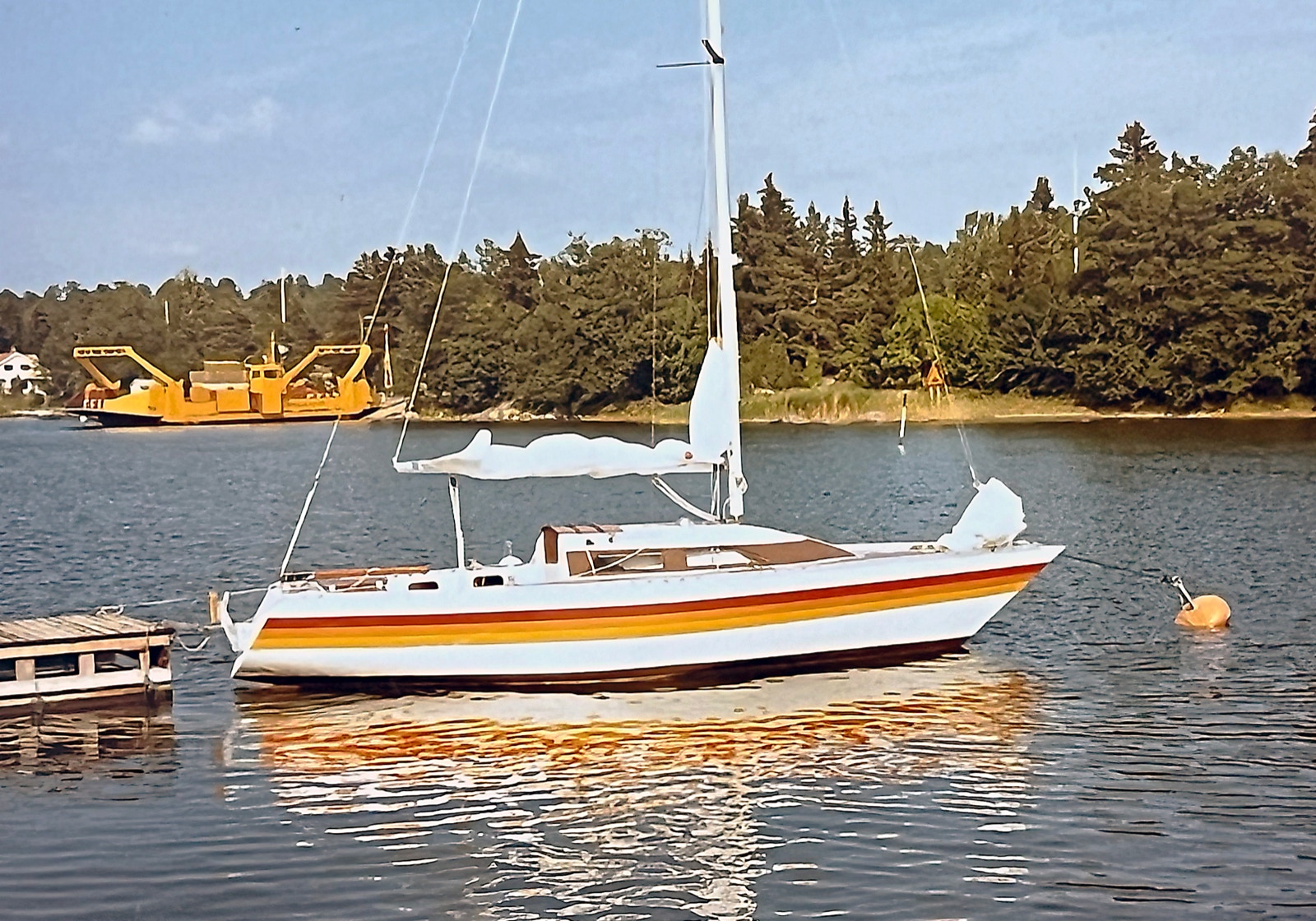

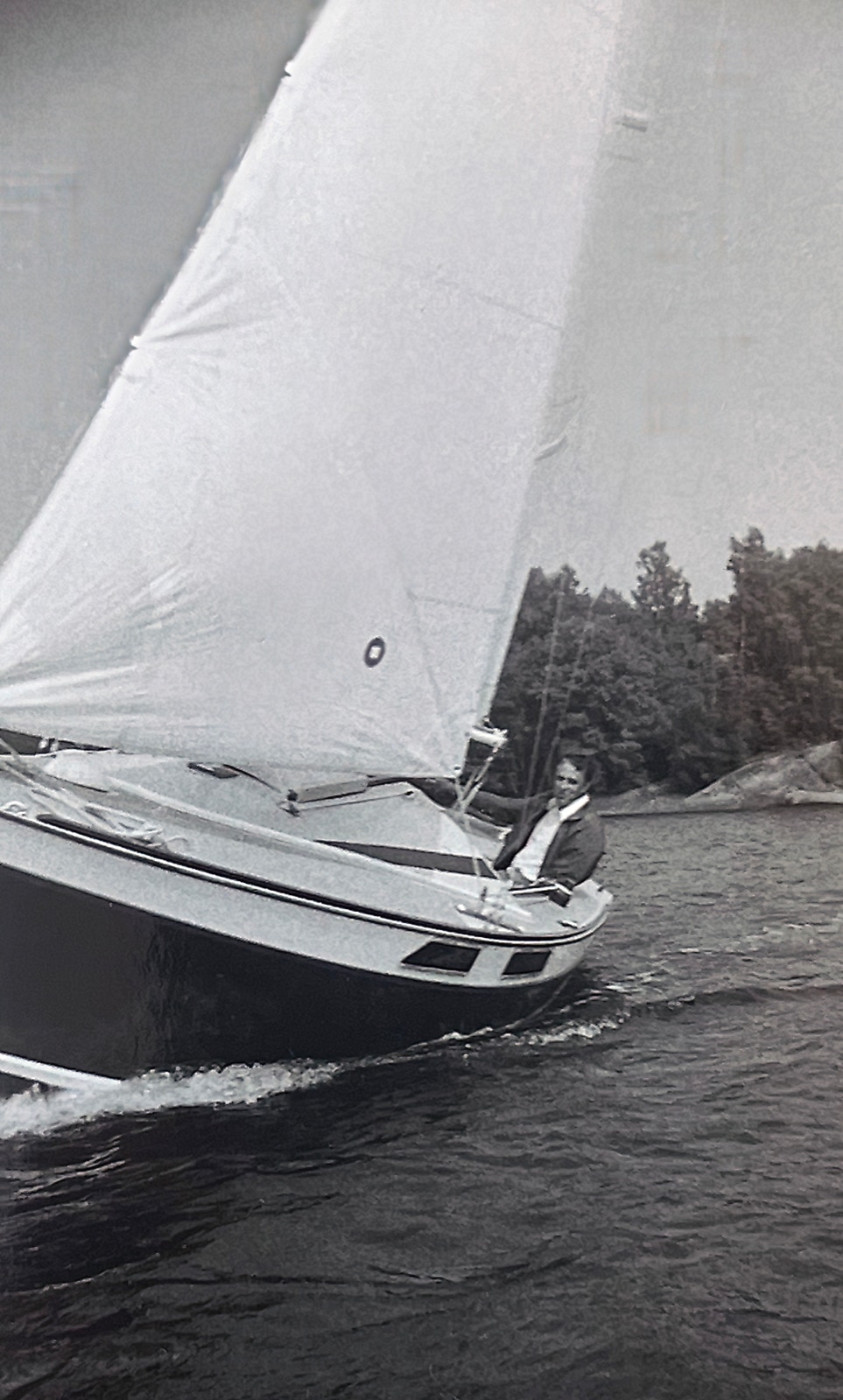

Shadow 801

Shadow 801 was an aluminium sailboat 8 x 2.6 m. The hull was built using our folding system for maximum strength and rounded shape.

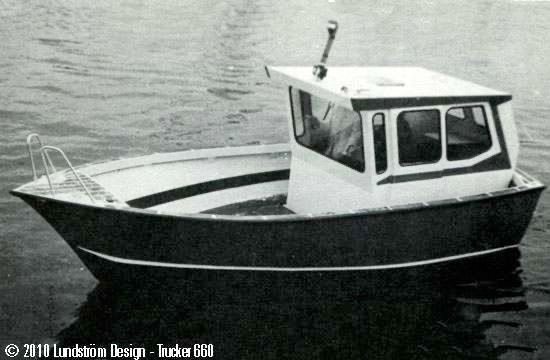

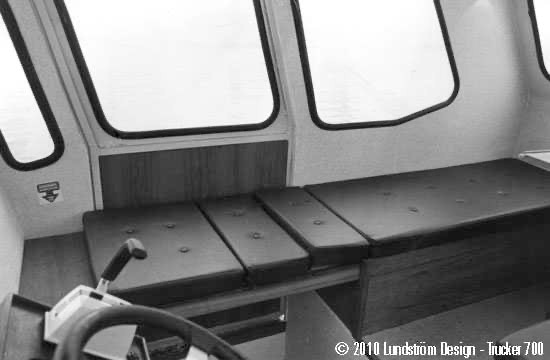

Trucker 660 & 700

The Trucker was an aluminium lineup consisted of two models from 6.6 to 7.0 meters in length, with a walk around cabin. The hull was built using our folding system for maximum strength and rounded shape.

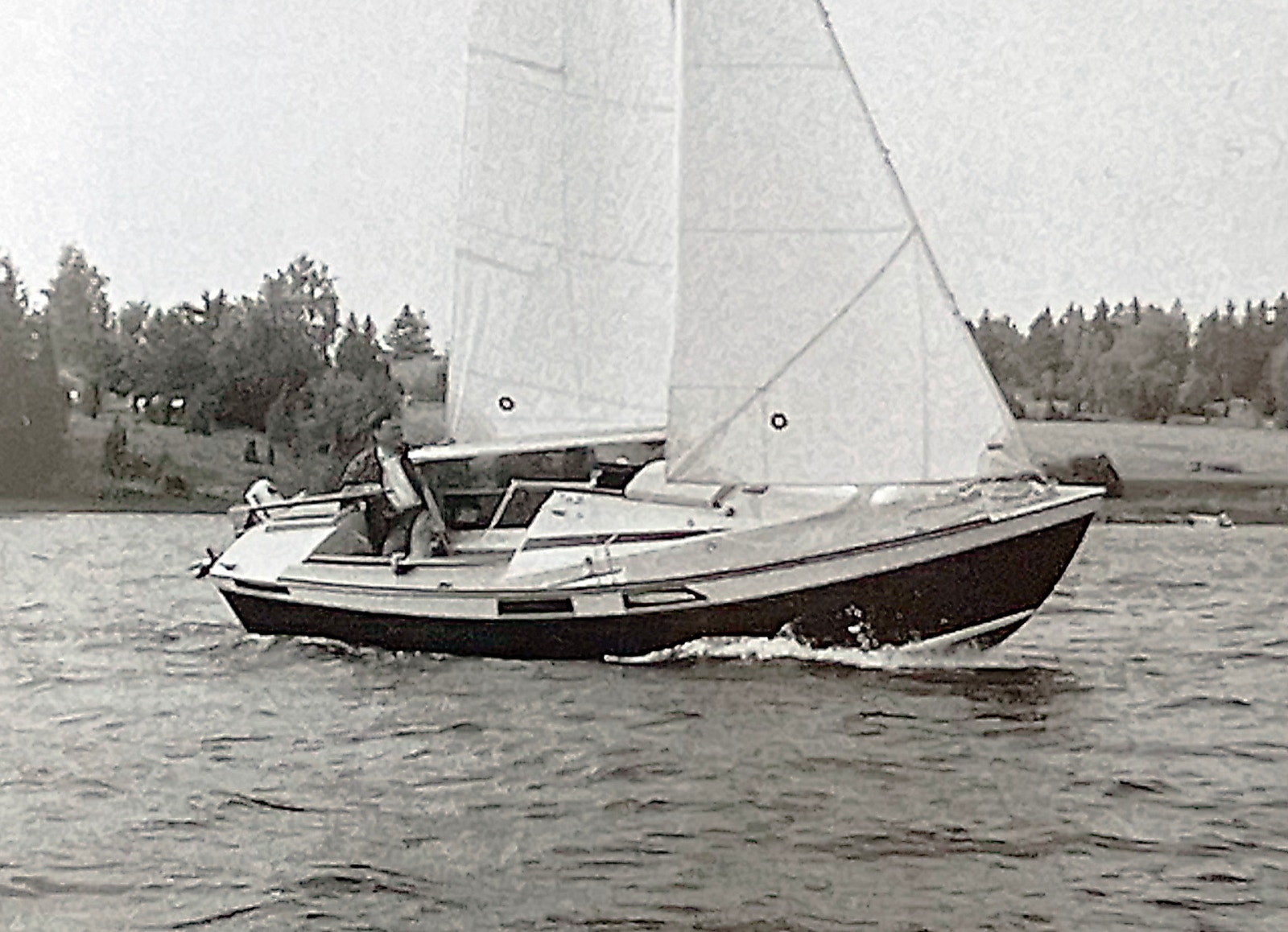

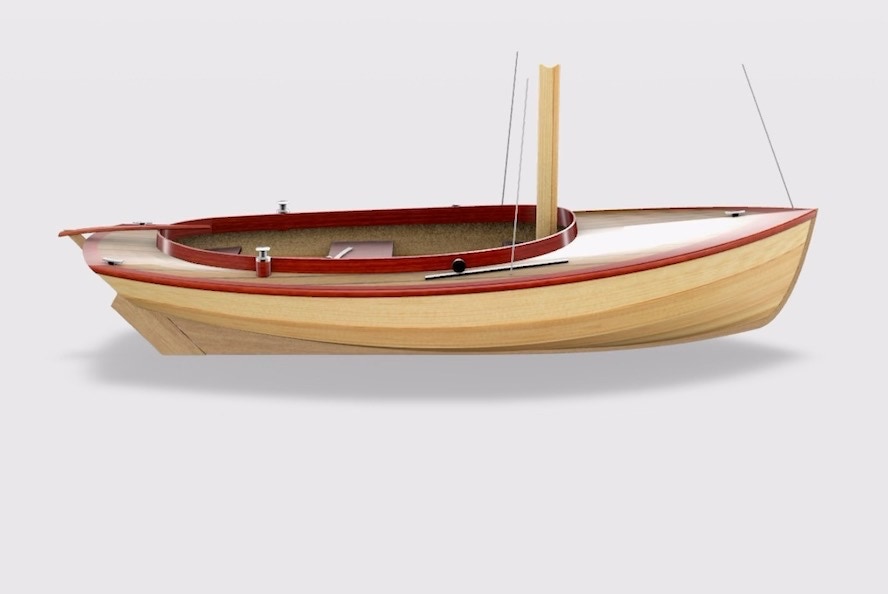

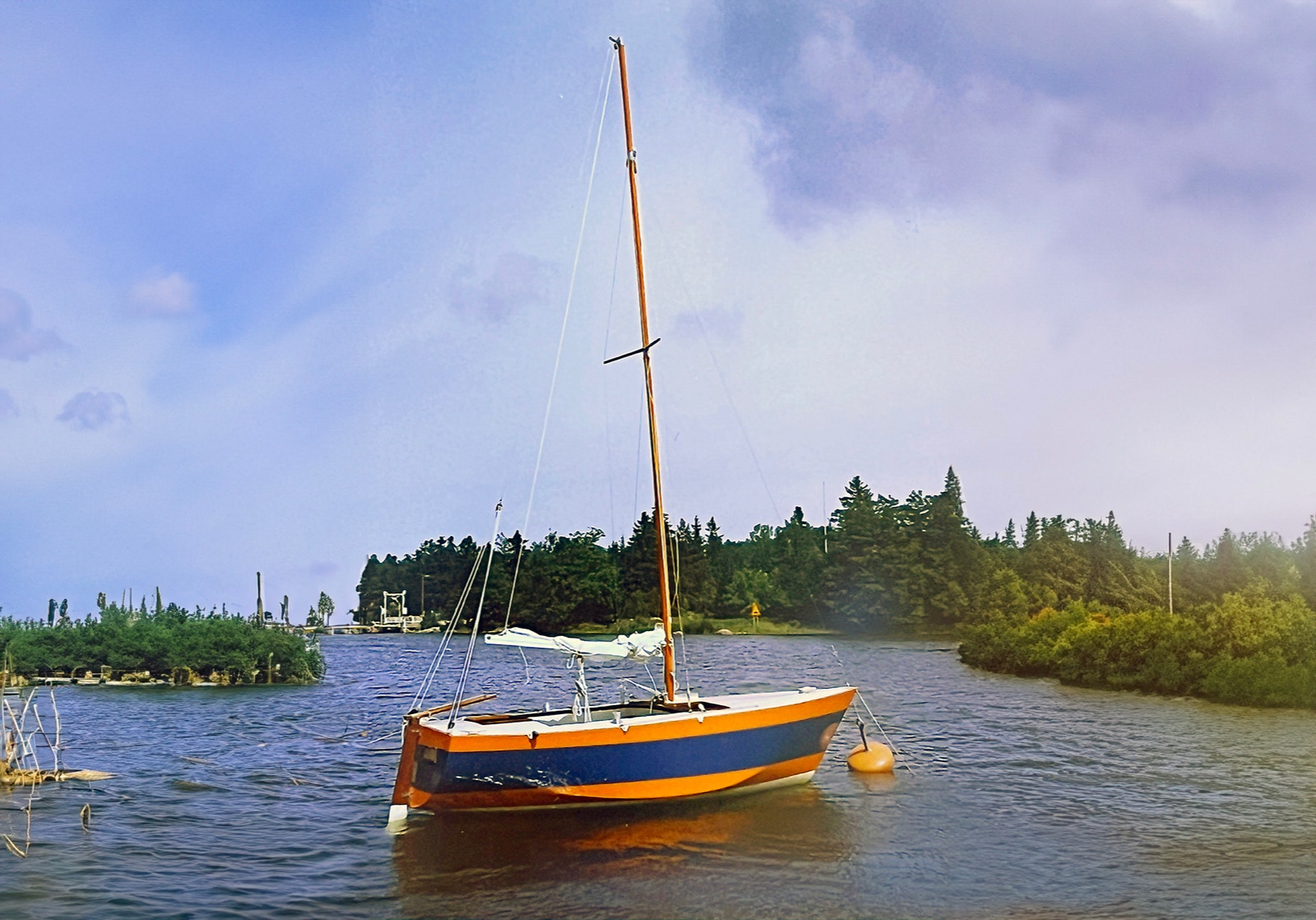

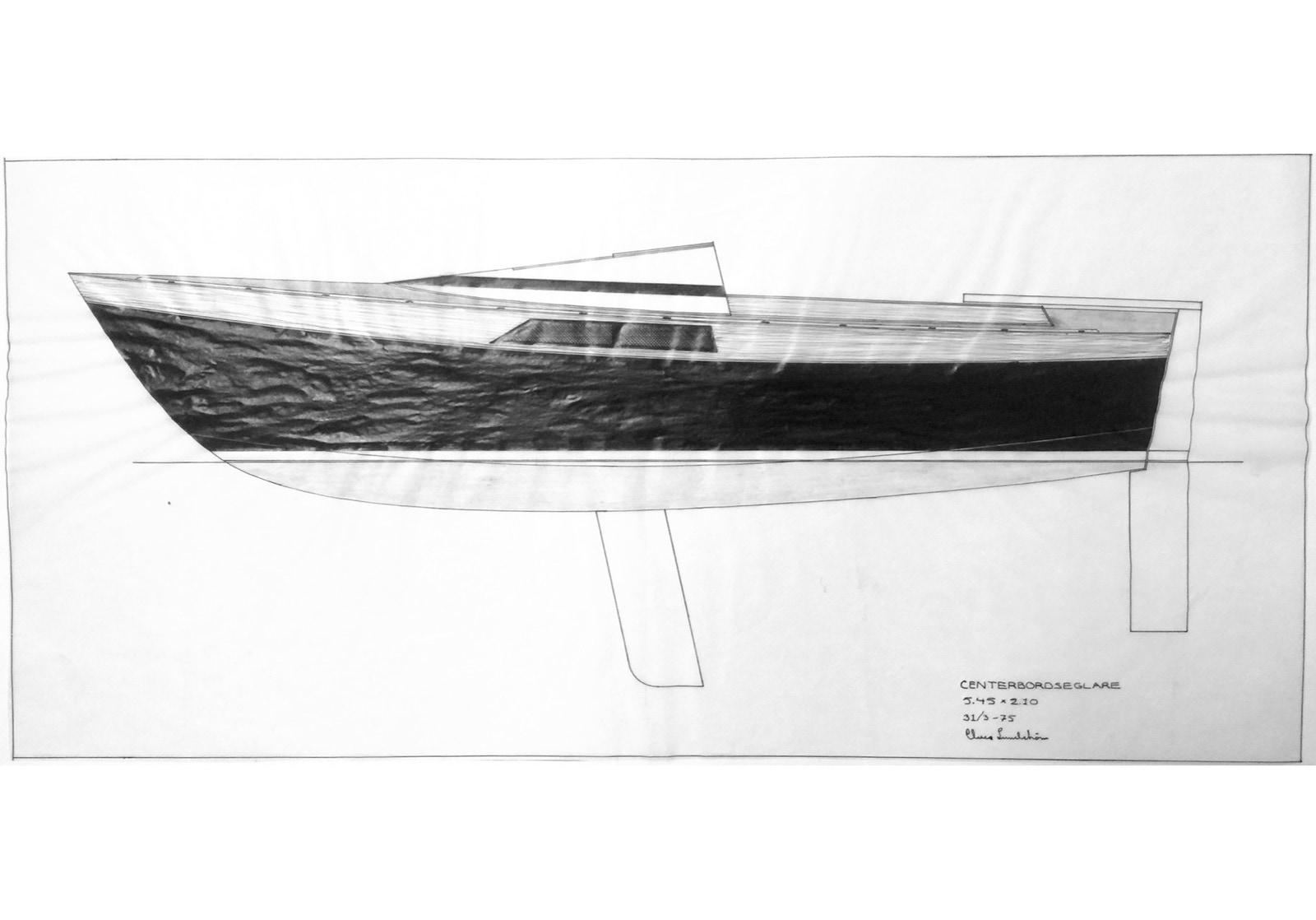

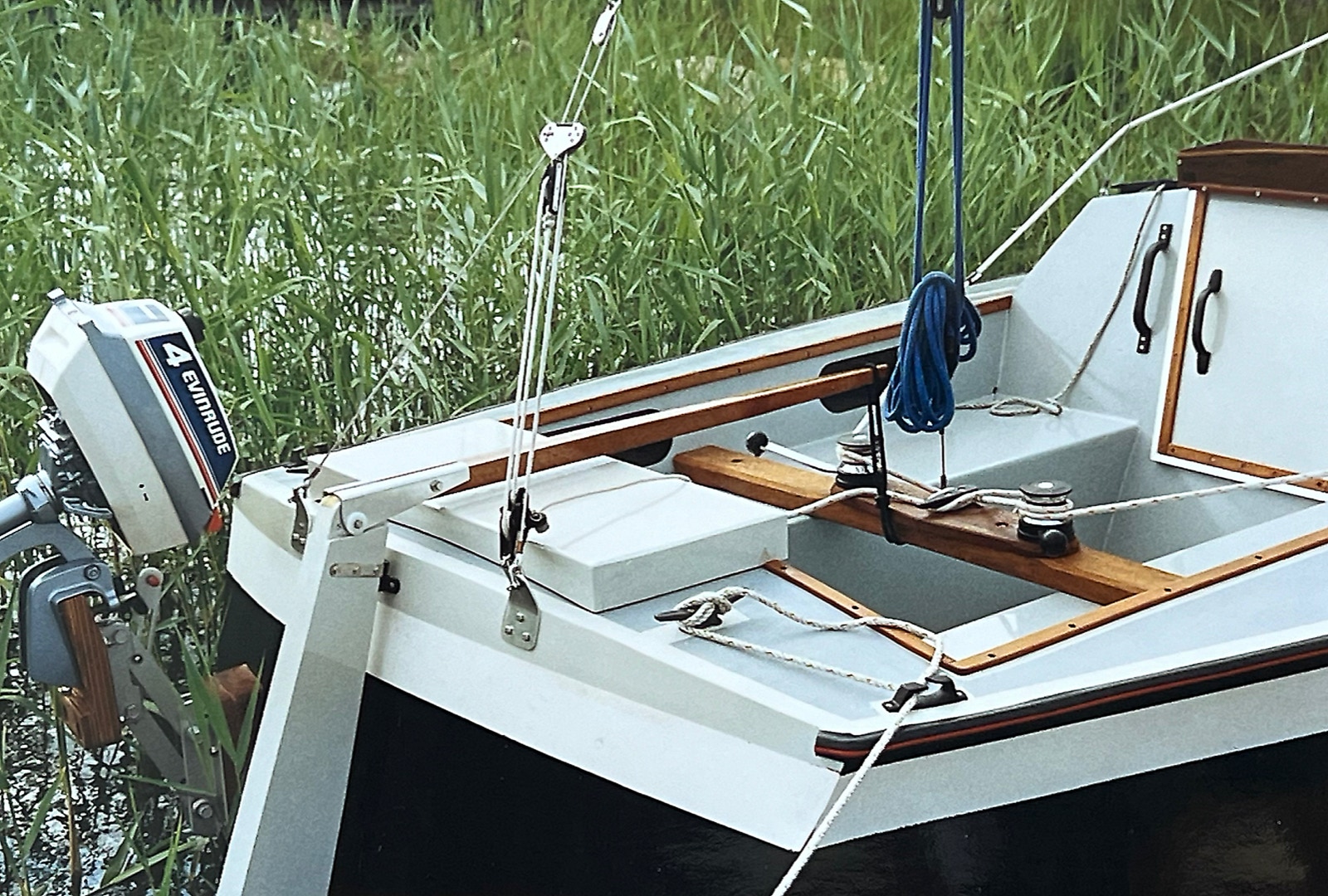

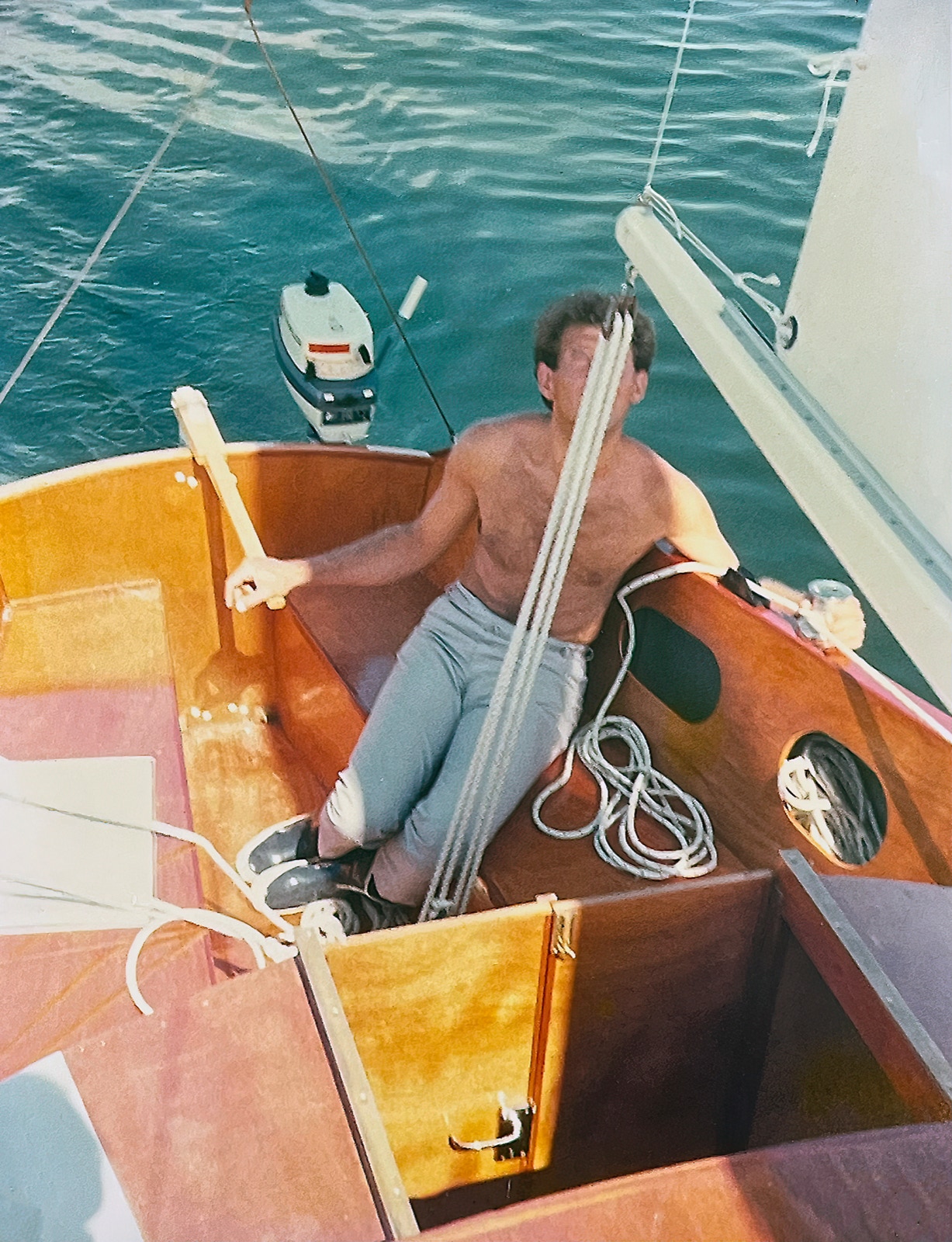

Three daysailers

Three experimental centerboard daysailers all 5.2 x 2.2 meters. One conventional plywood frame build, one a folding built stitch and glue plywood hull, and one welded aluminium folding built hull.

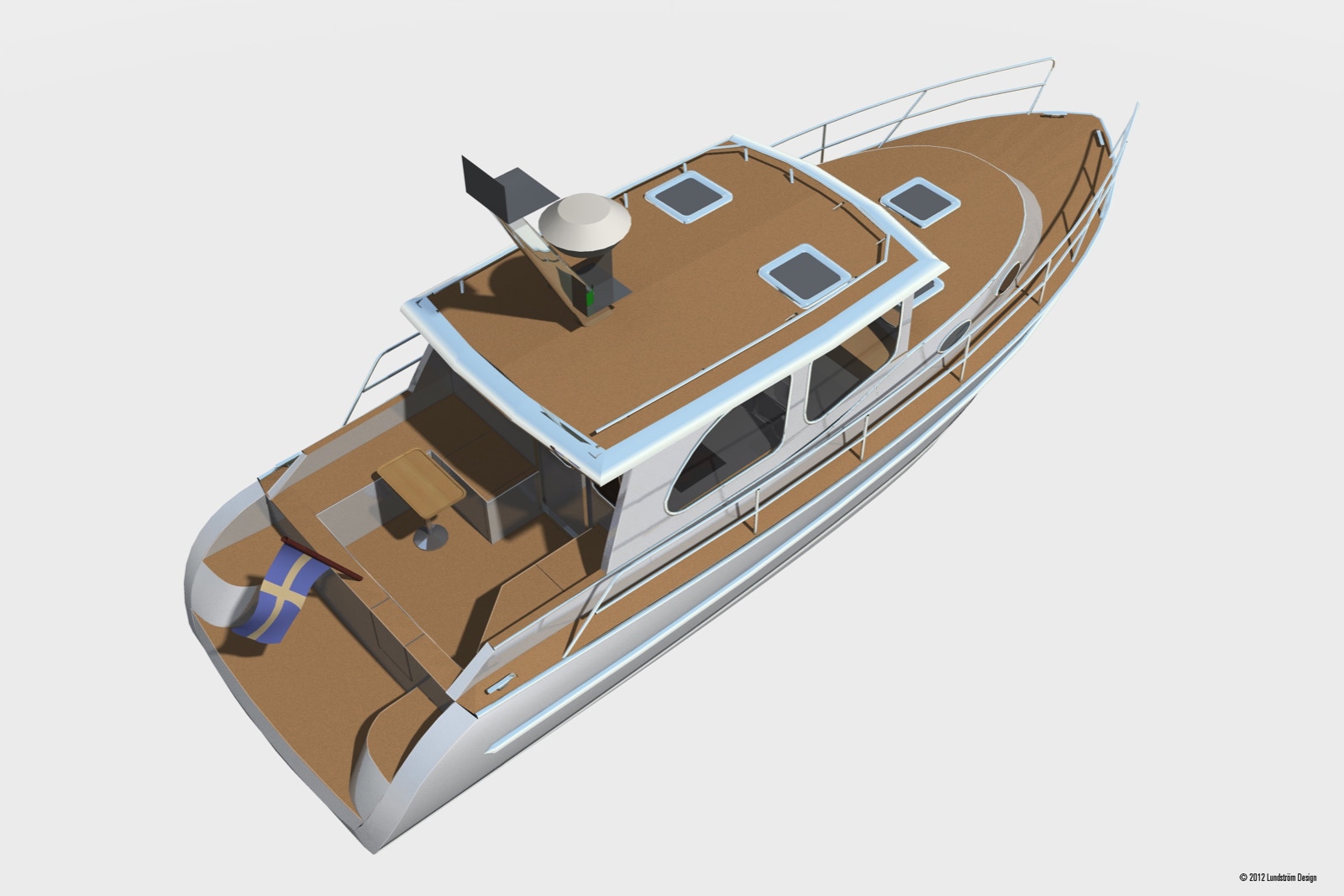

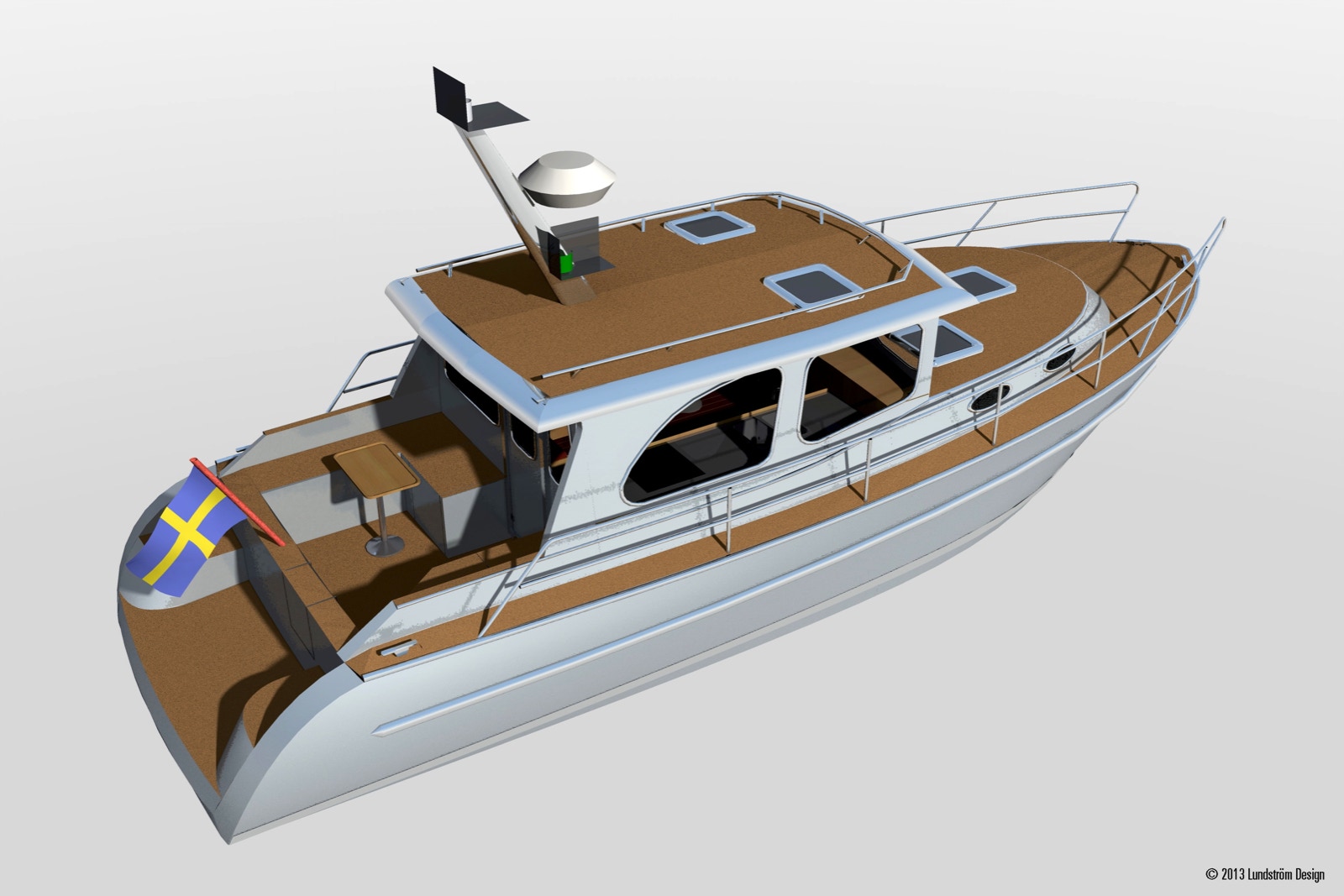

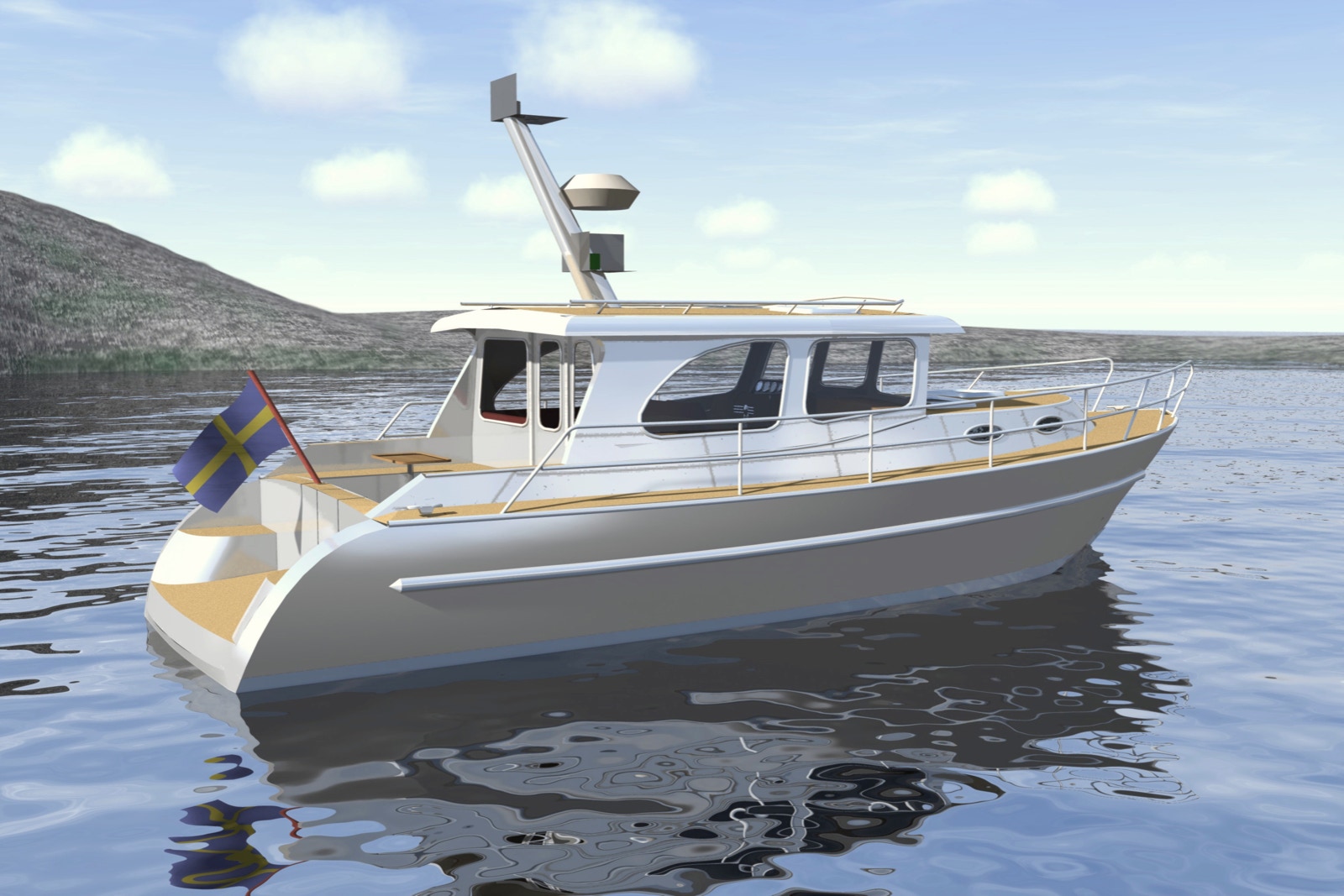

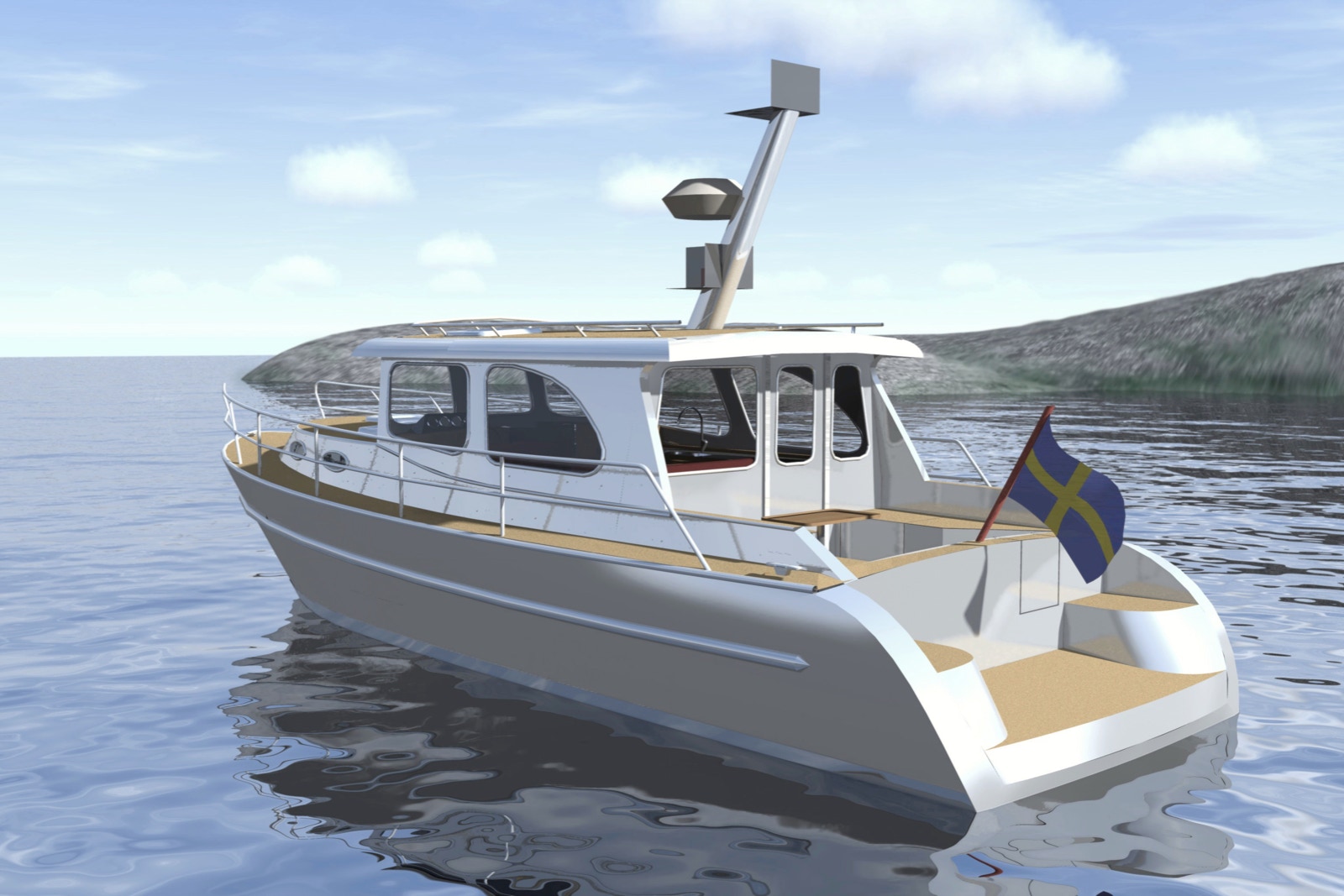

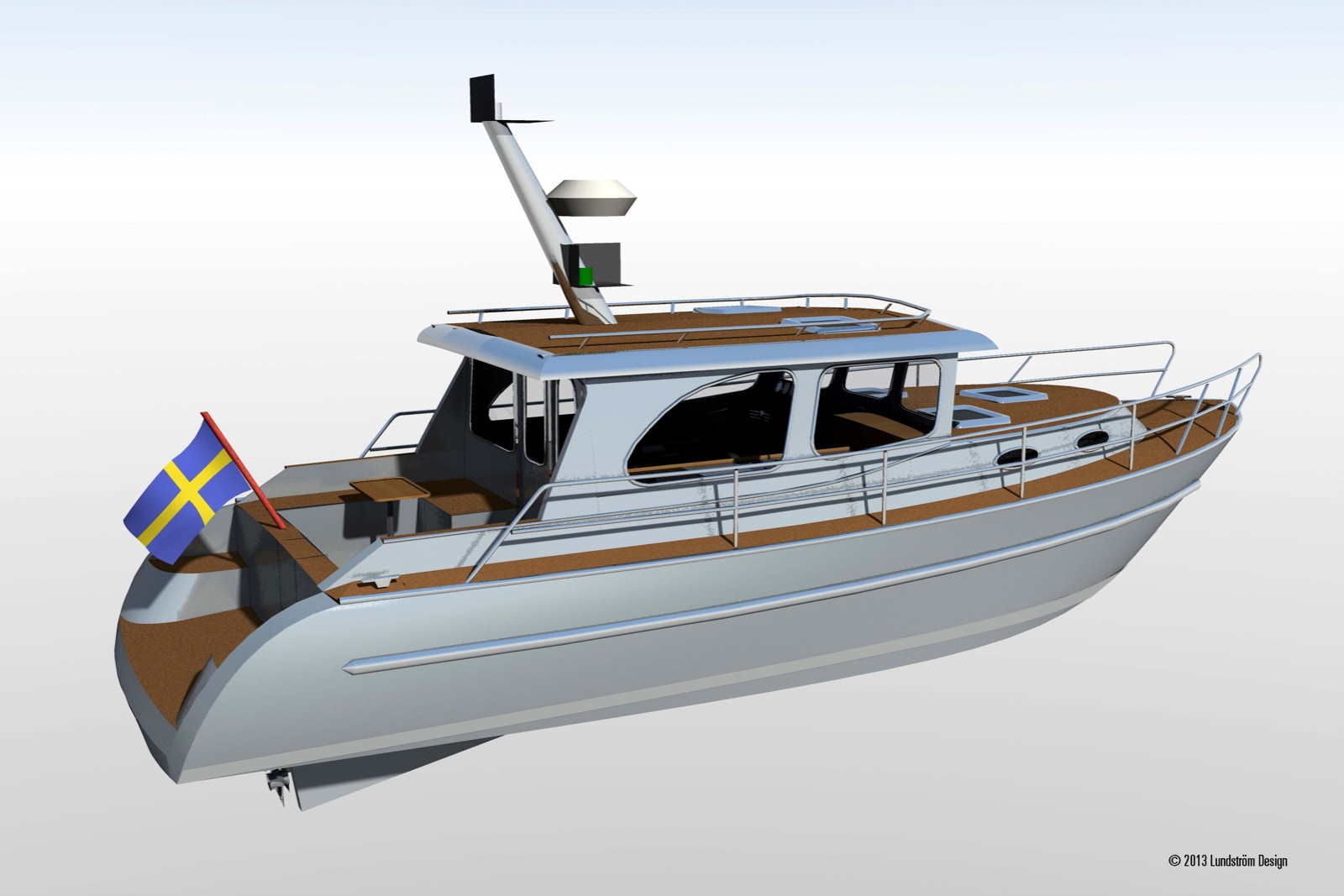

Designed by Claes Lundström Design, Stainless Steel boat 10.5 m

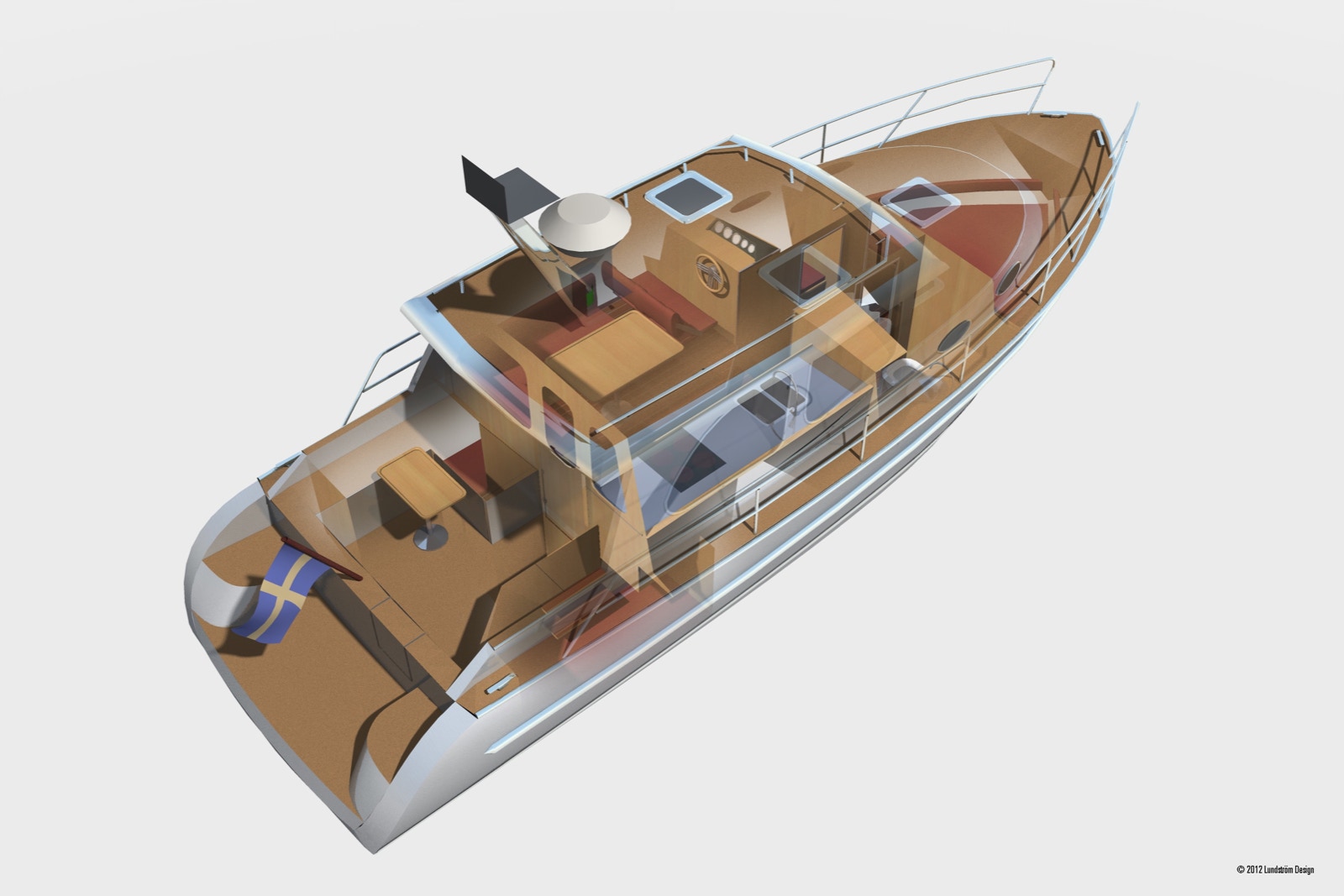

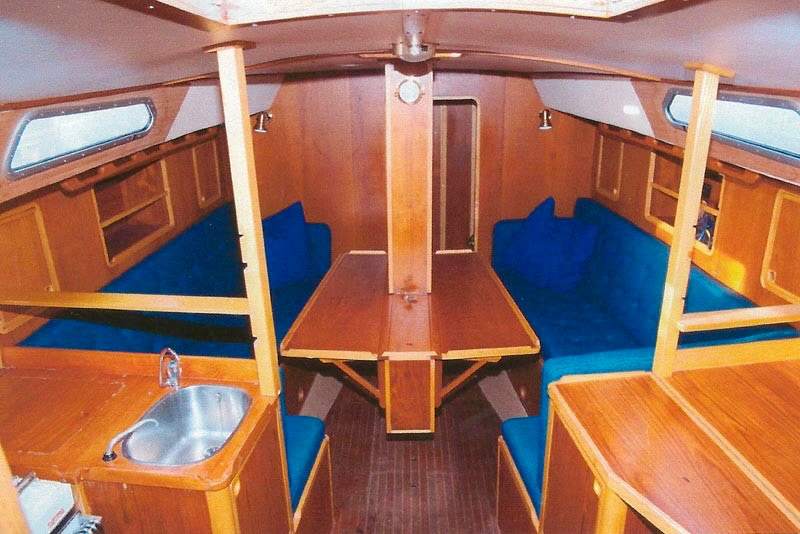

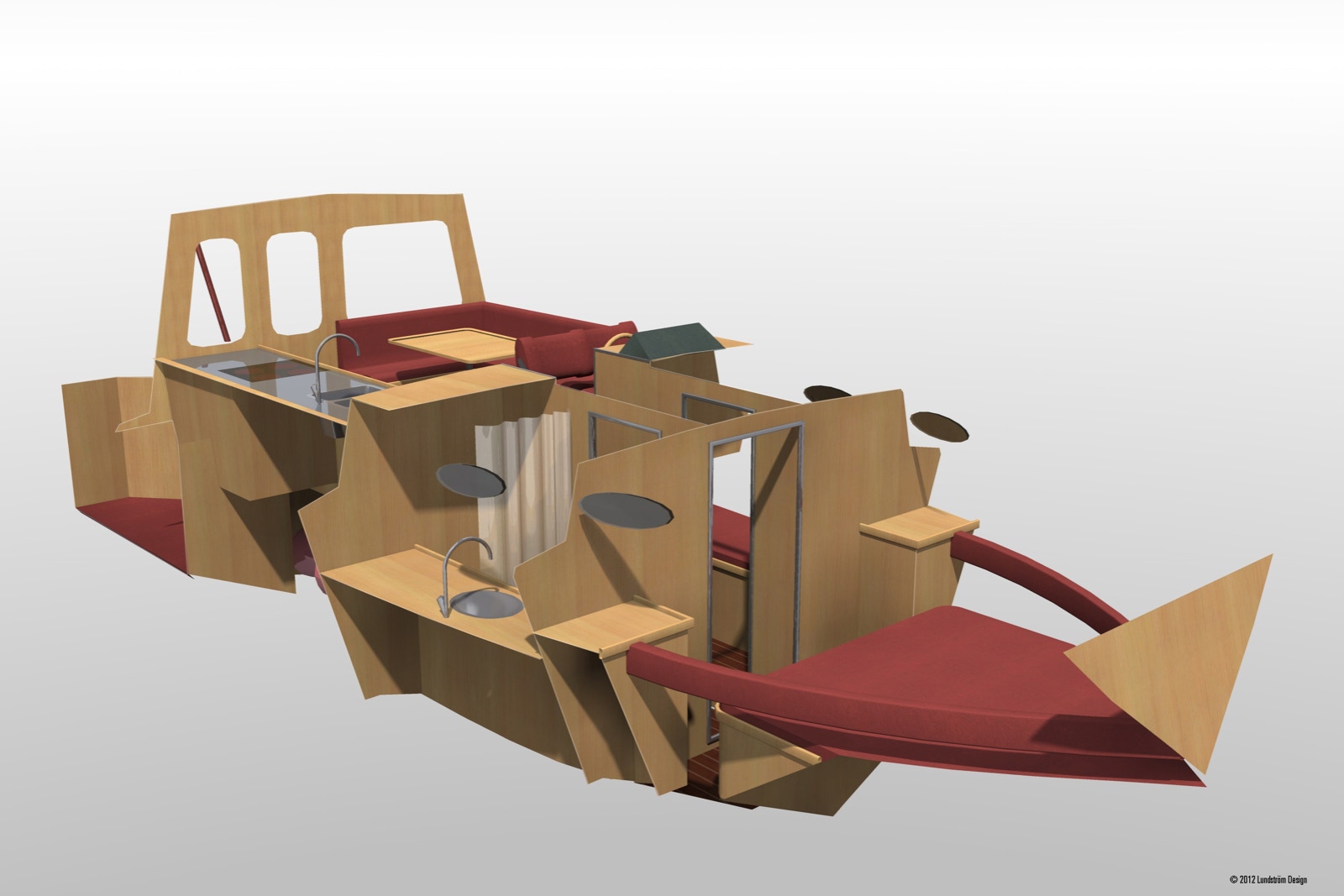

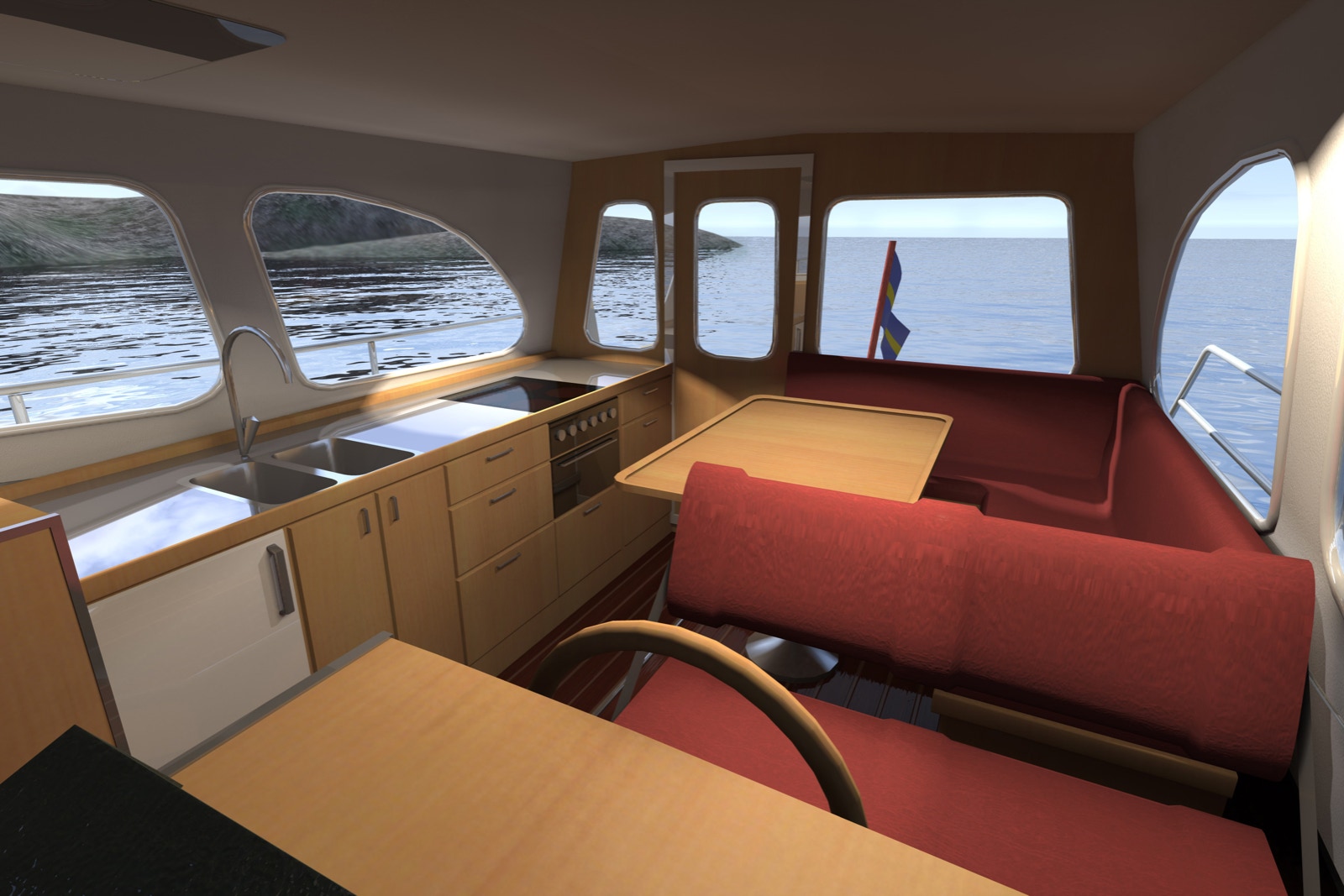

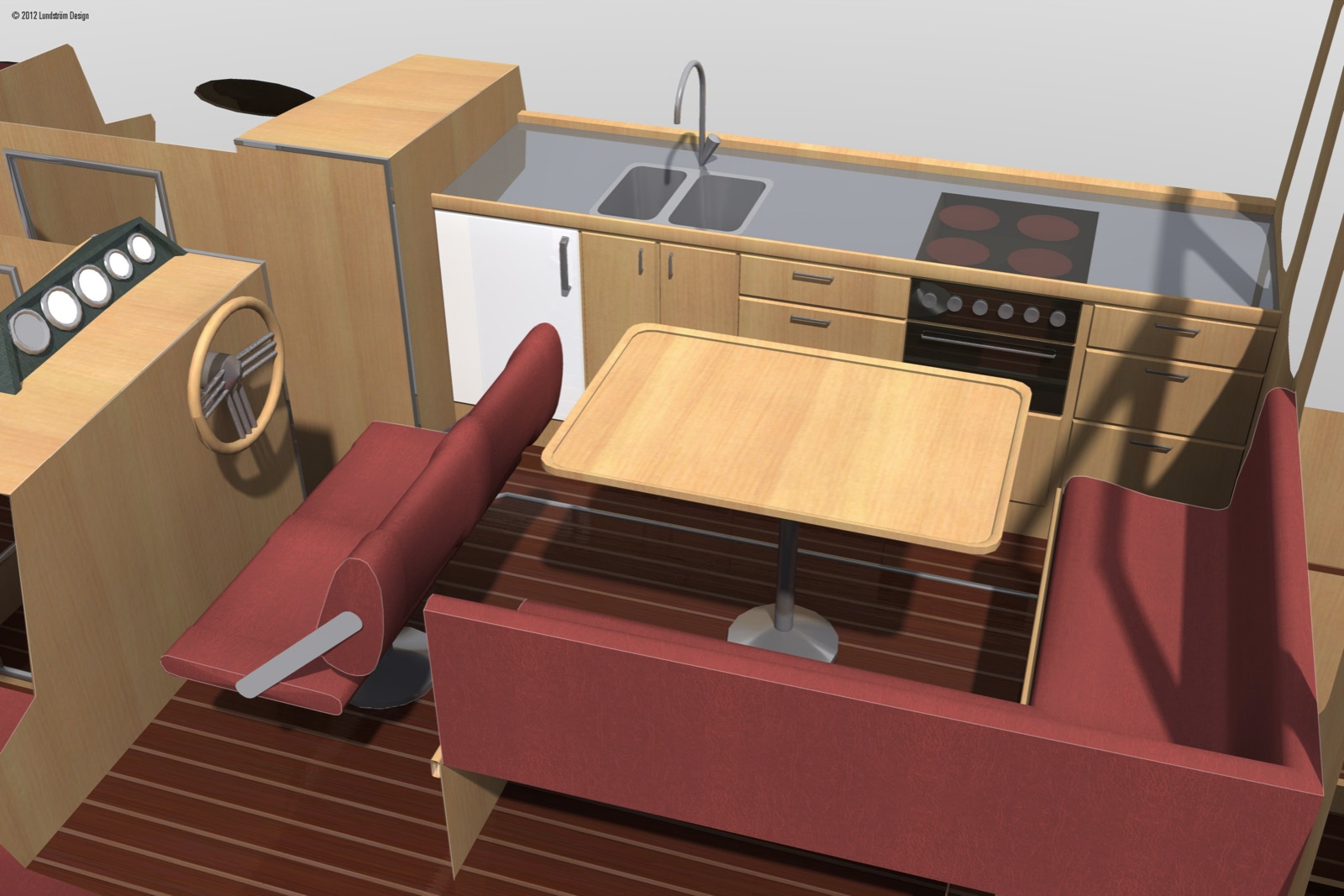

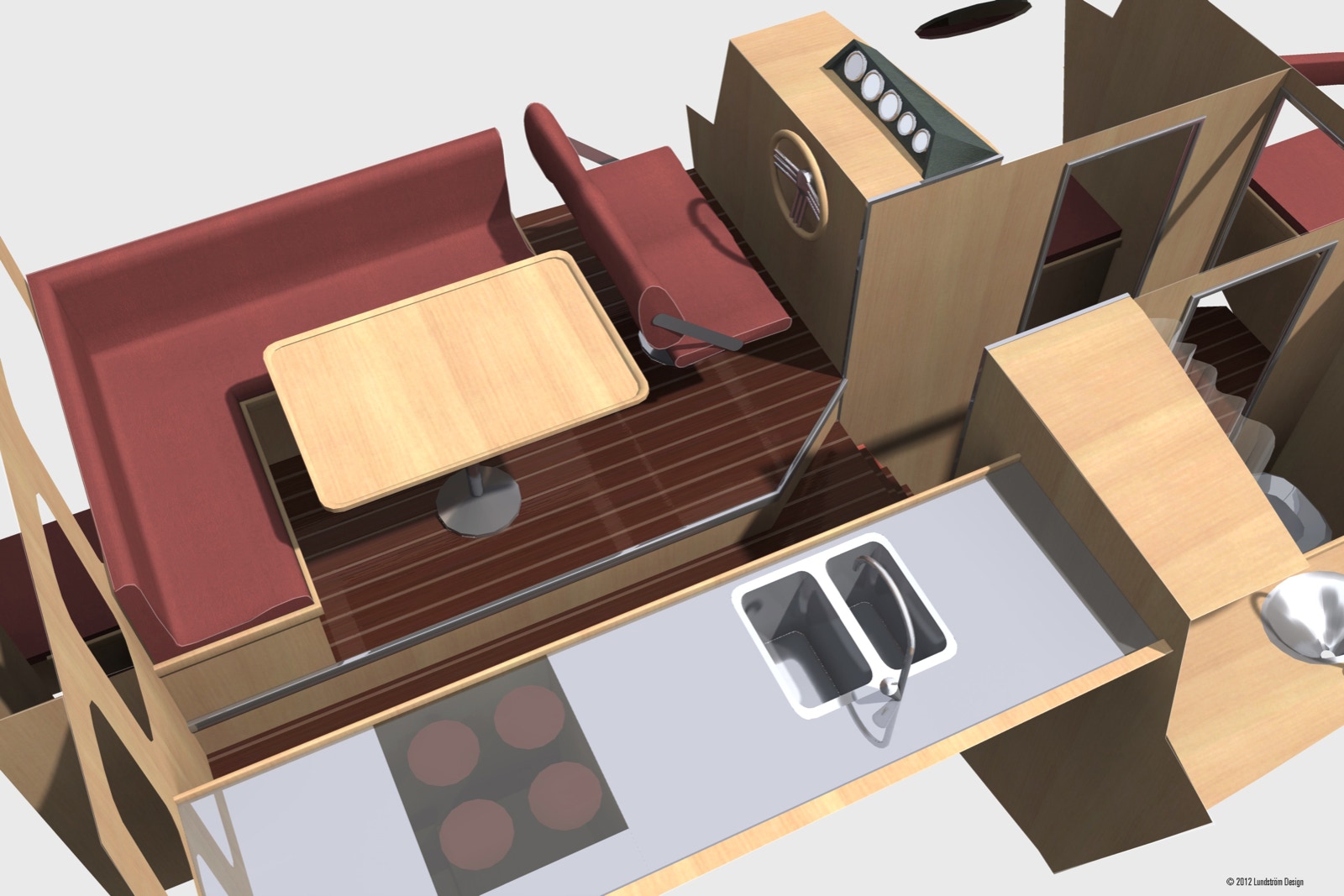

Designed by Claes Lundström Design, Stainless Steel boat 10.5 m, interior

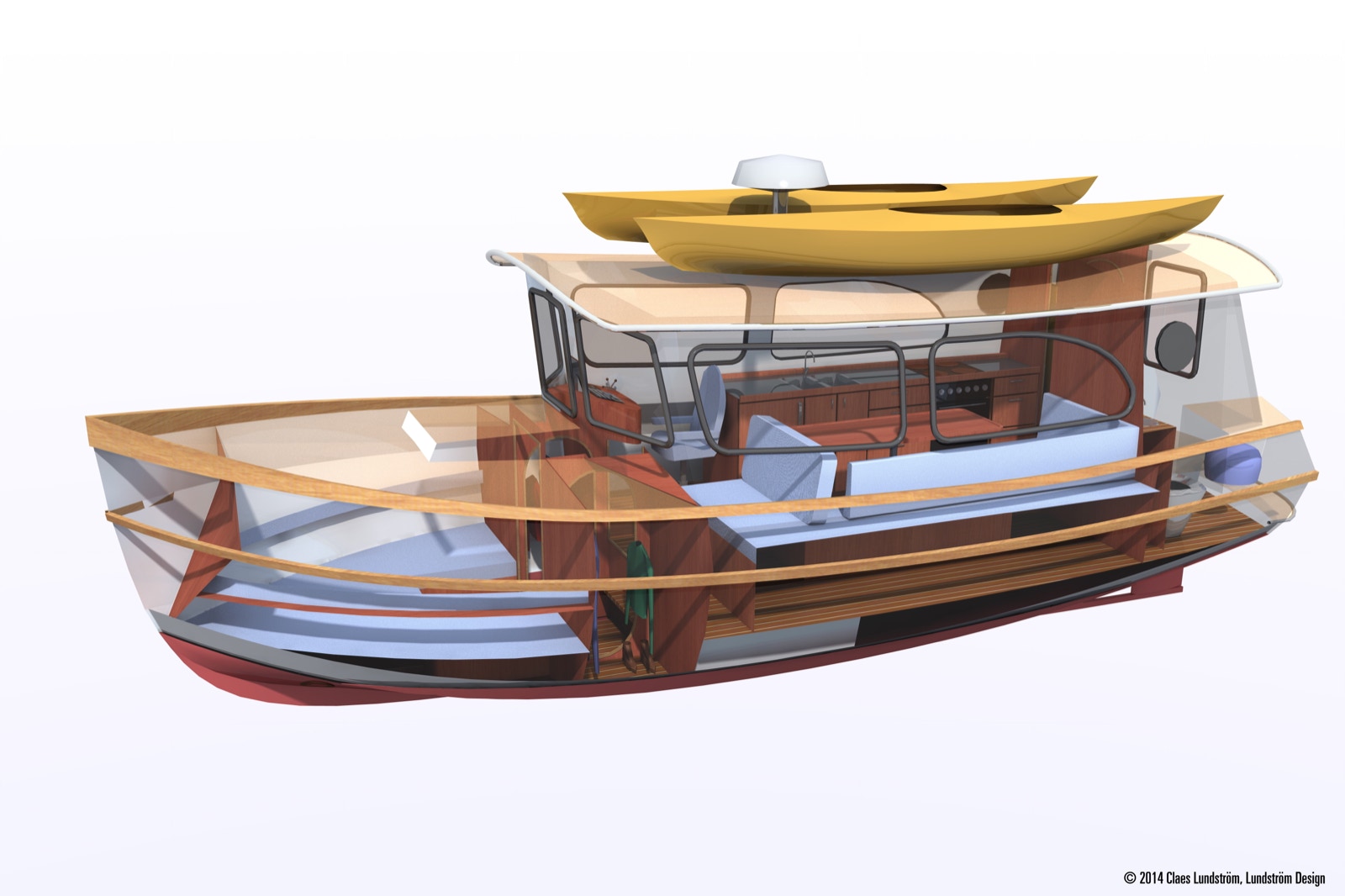

Designed by Claes Lundström Design, Aluminium / wooden boat 8.5 m

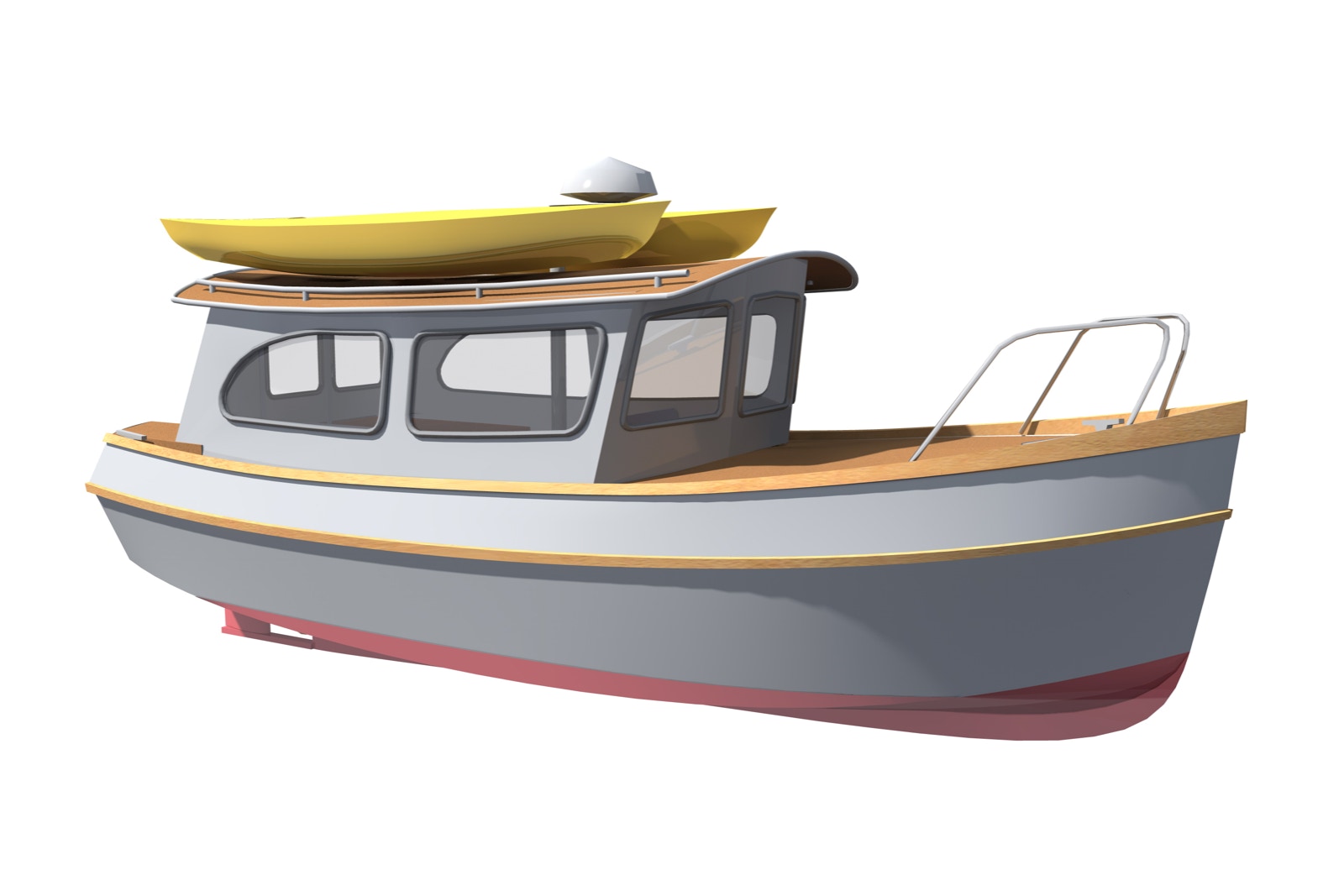

Designed by Claes Lundström Design, Plyywood boat 7 m

Designed by Claes Lundström Design, aluminium hull 14 m

Designed by Claes Lundström Design, aluminium boat 8 m

Designed by Claes Lundström Design, Plywood stitch and glue rowing boat 4,8 m

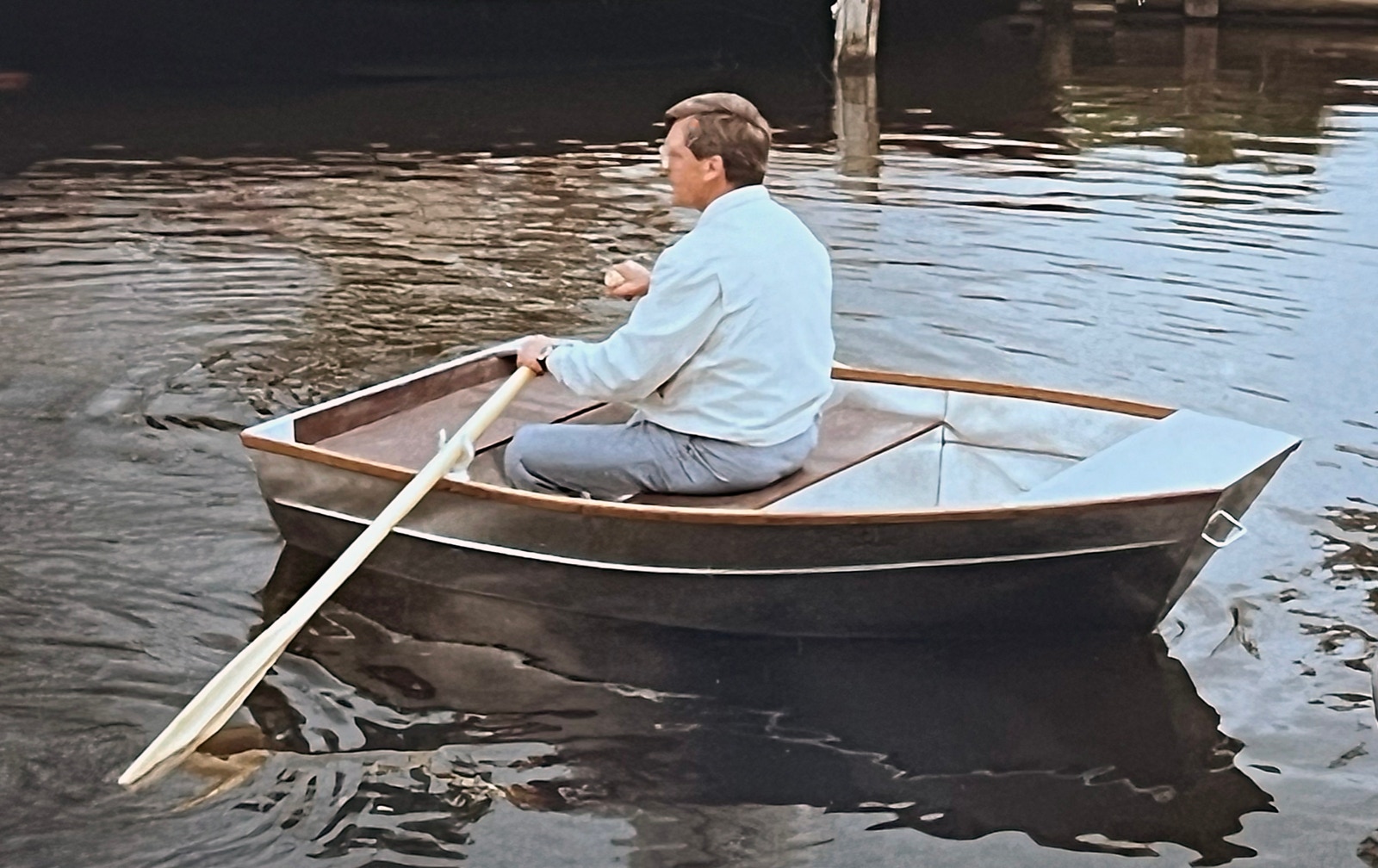

Designed by Claes Lundström Design, aluminium rowing boat 4,8 m

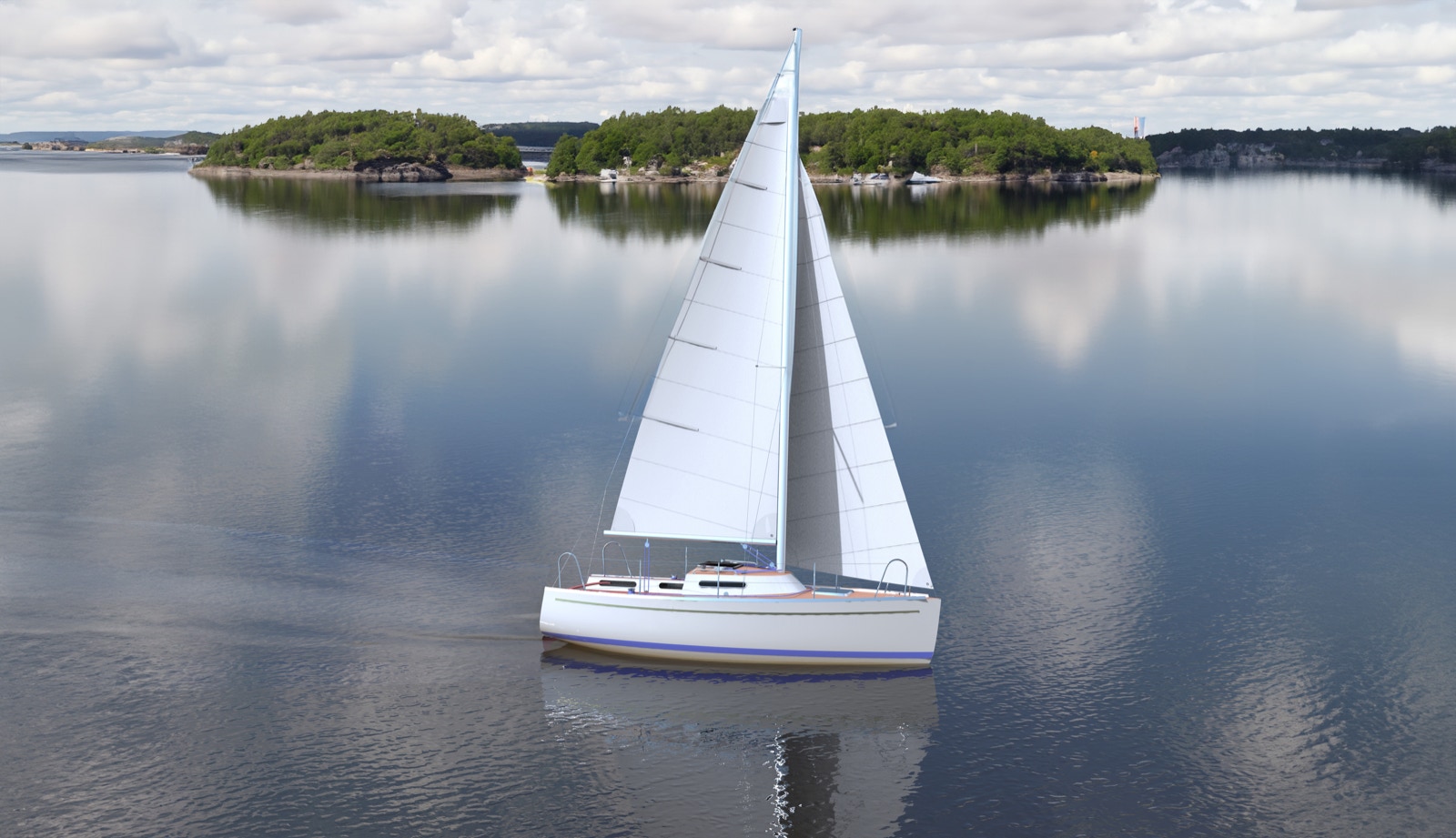

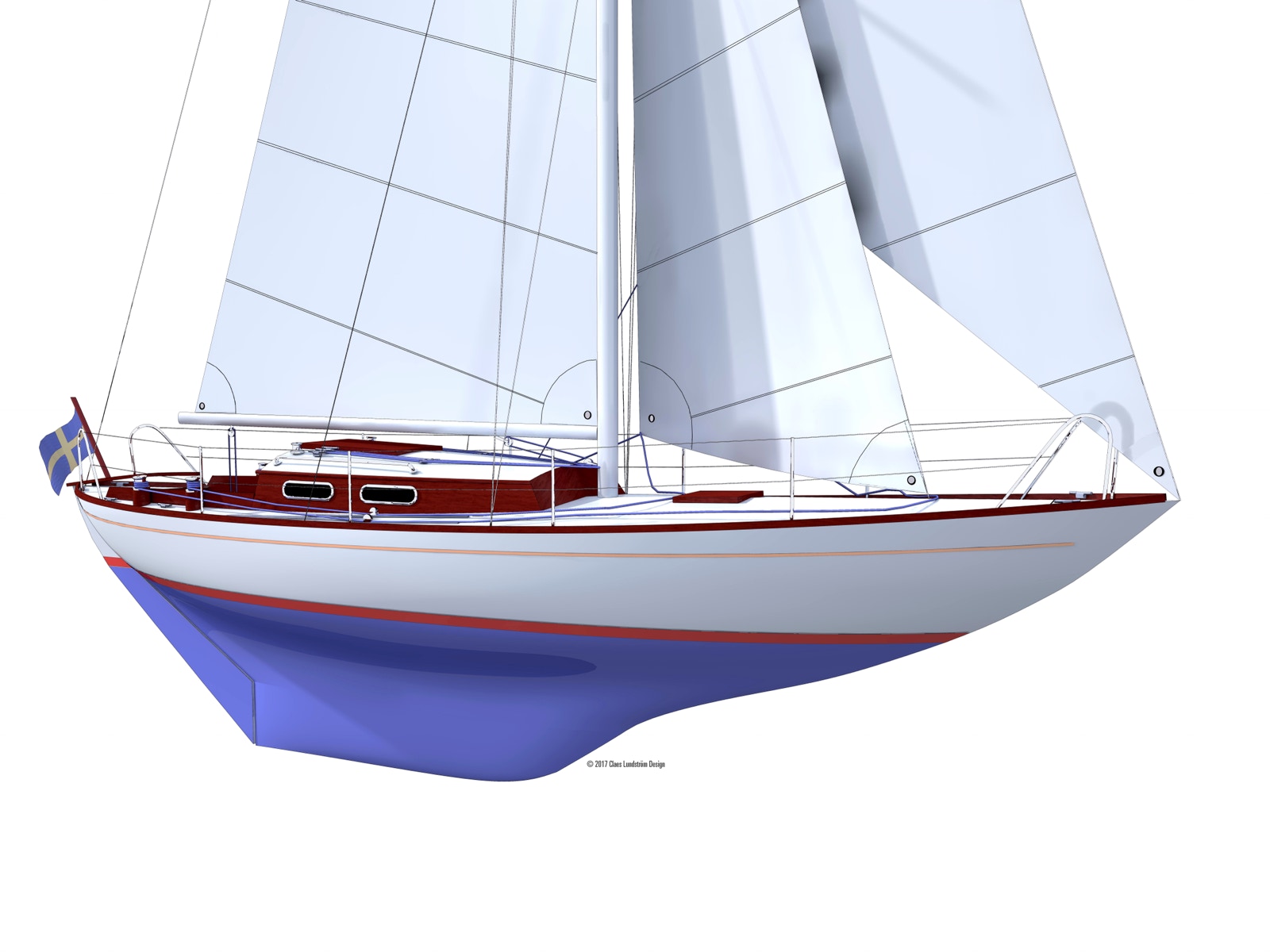

Sailboat illustration for På Kryss Till Rors magazine

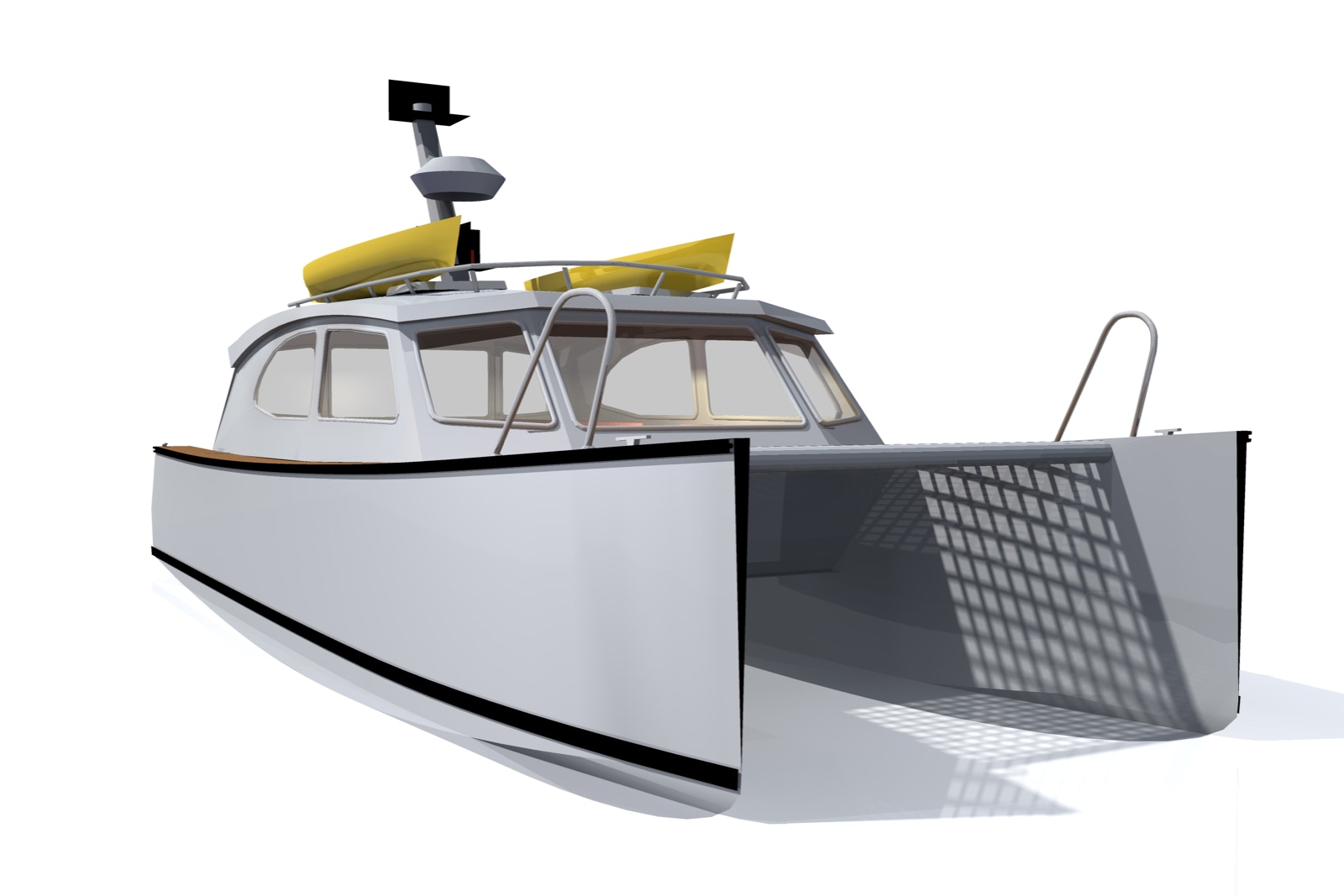

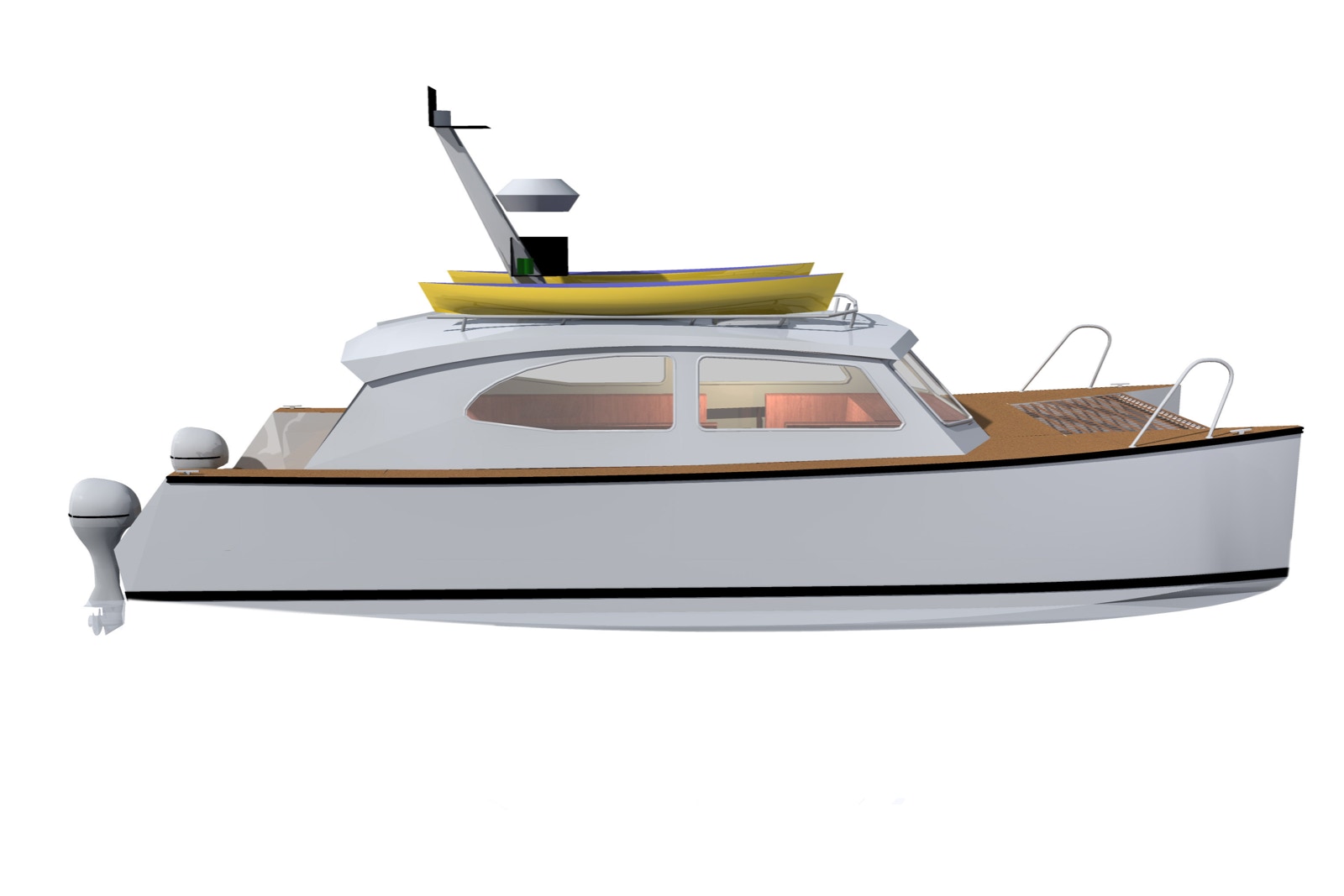

Camping boat illustration for På Kryss Till Rors magazine

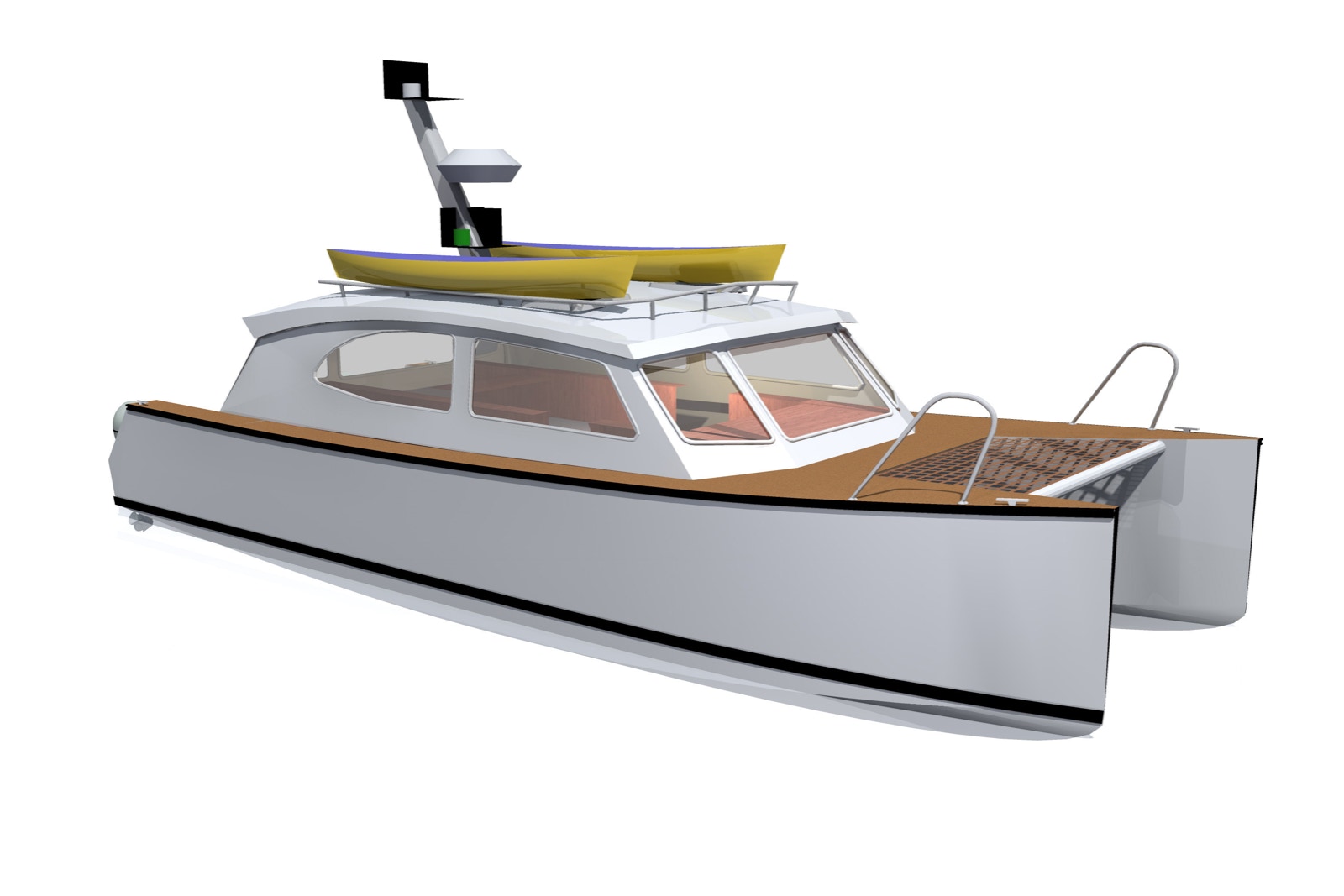

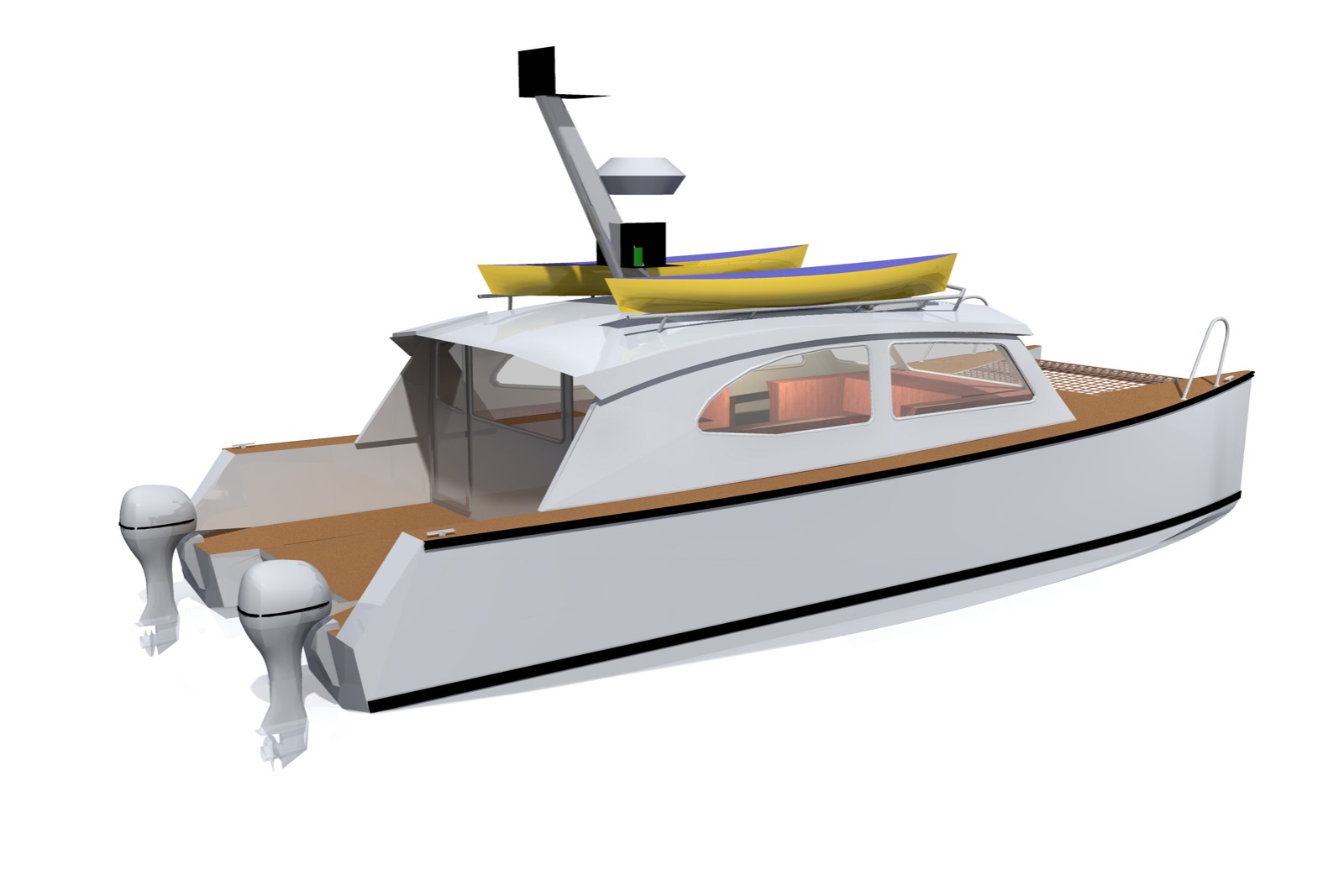

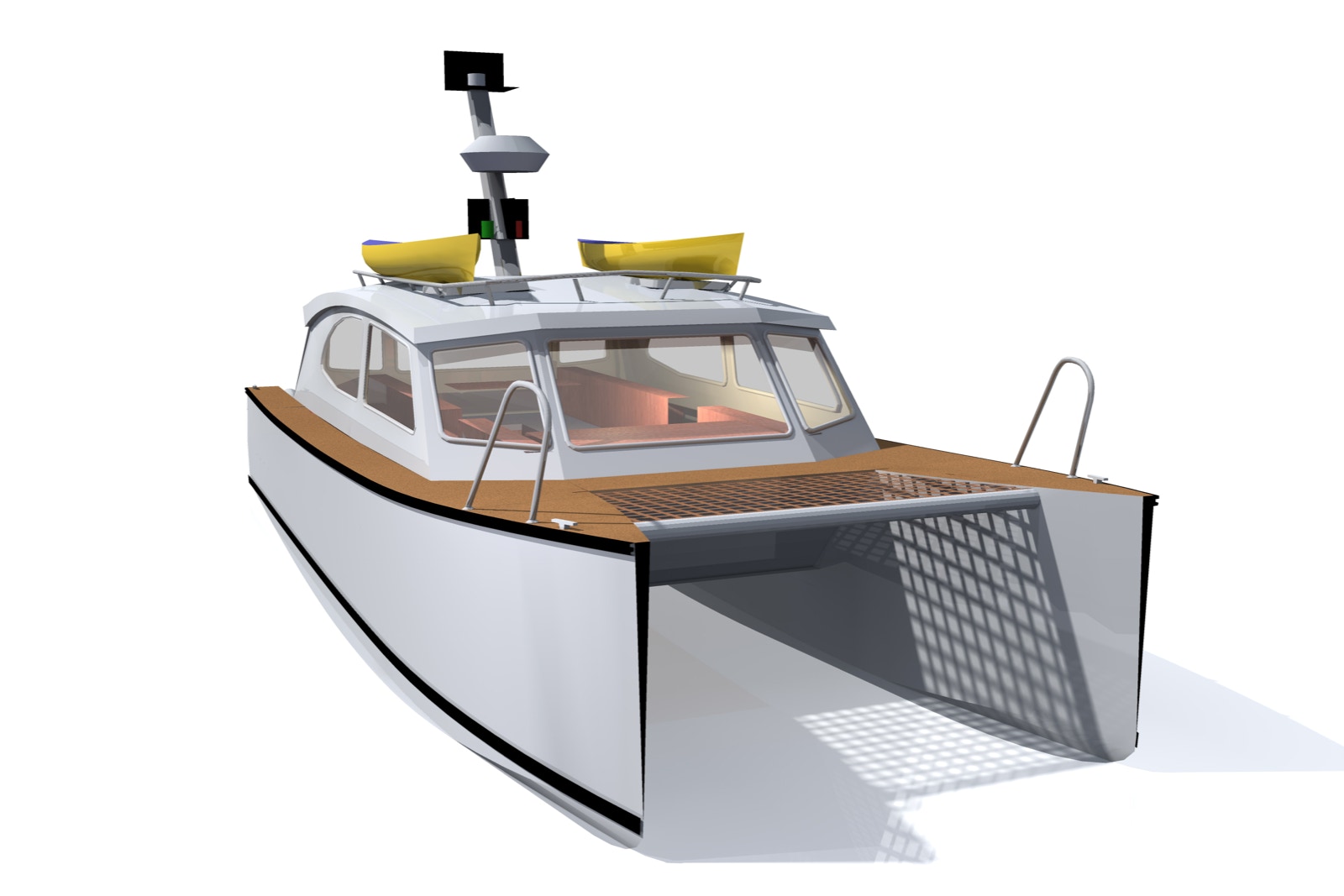

Catamaran illustration for På Kryss Till Rors magazine

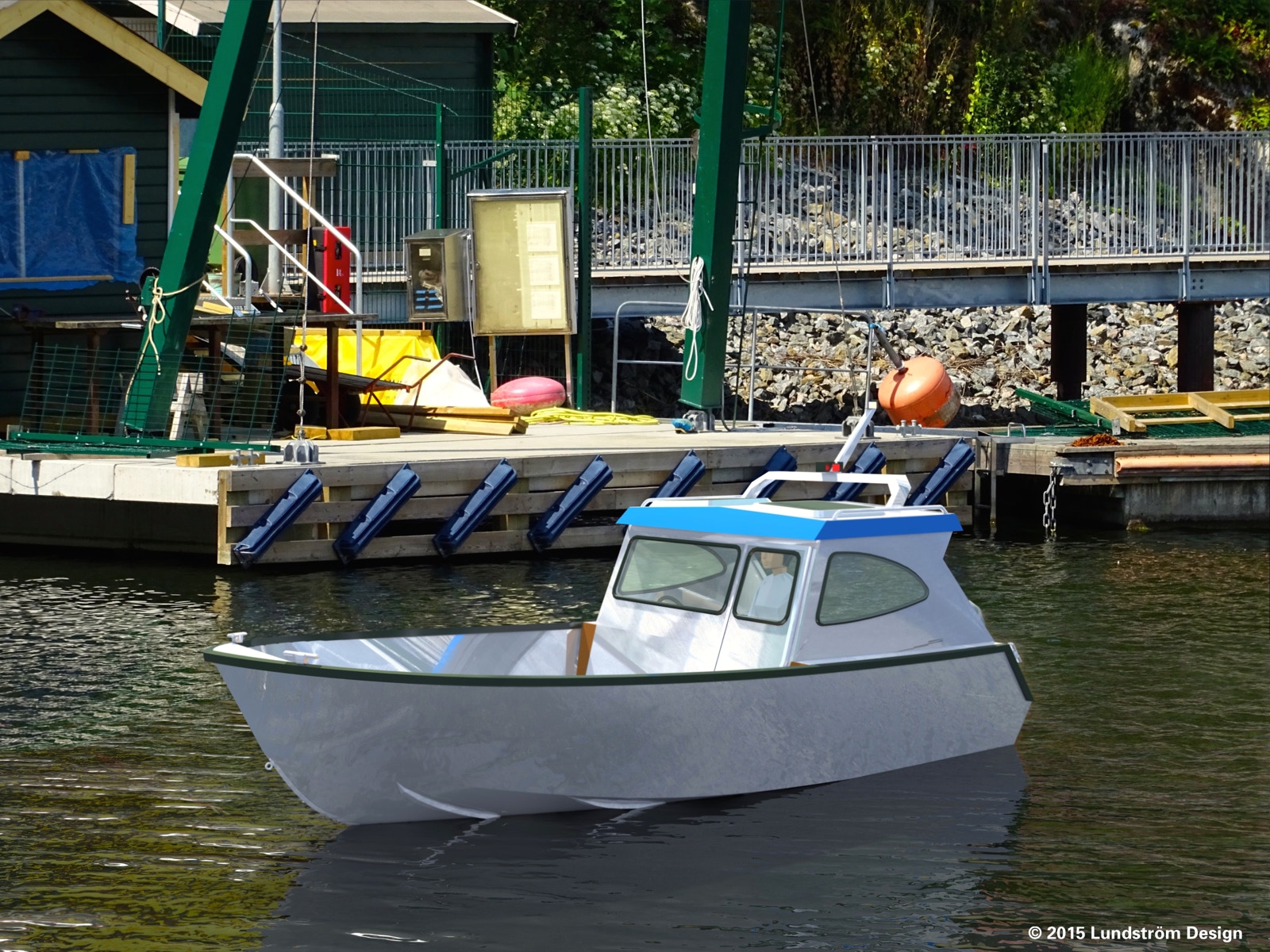

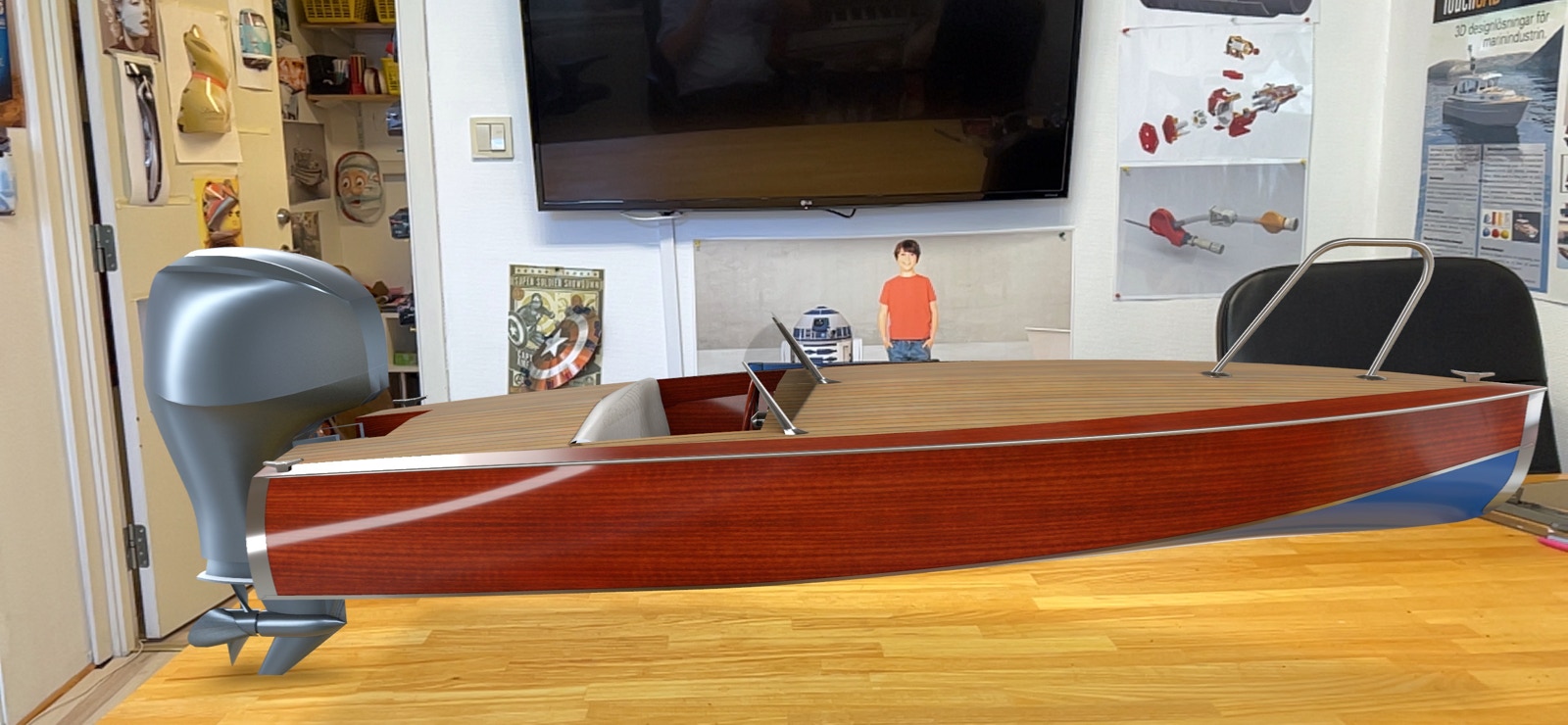

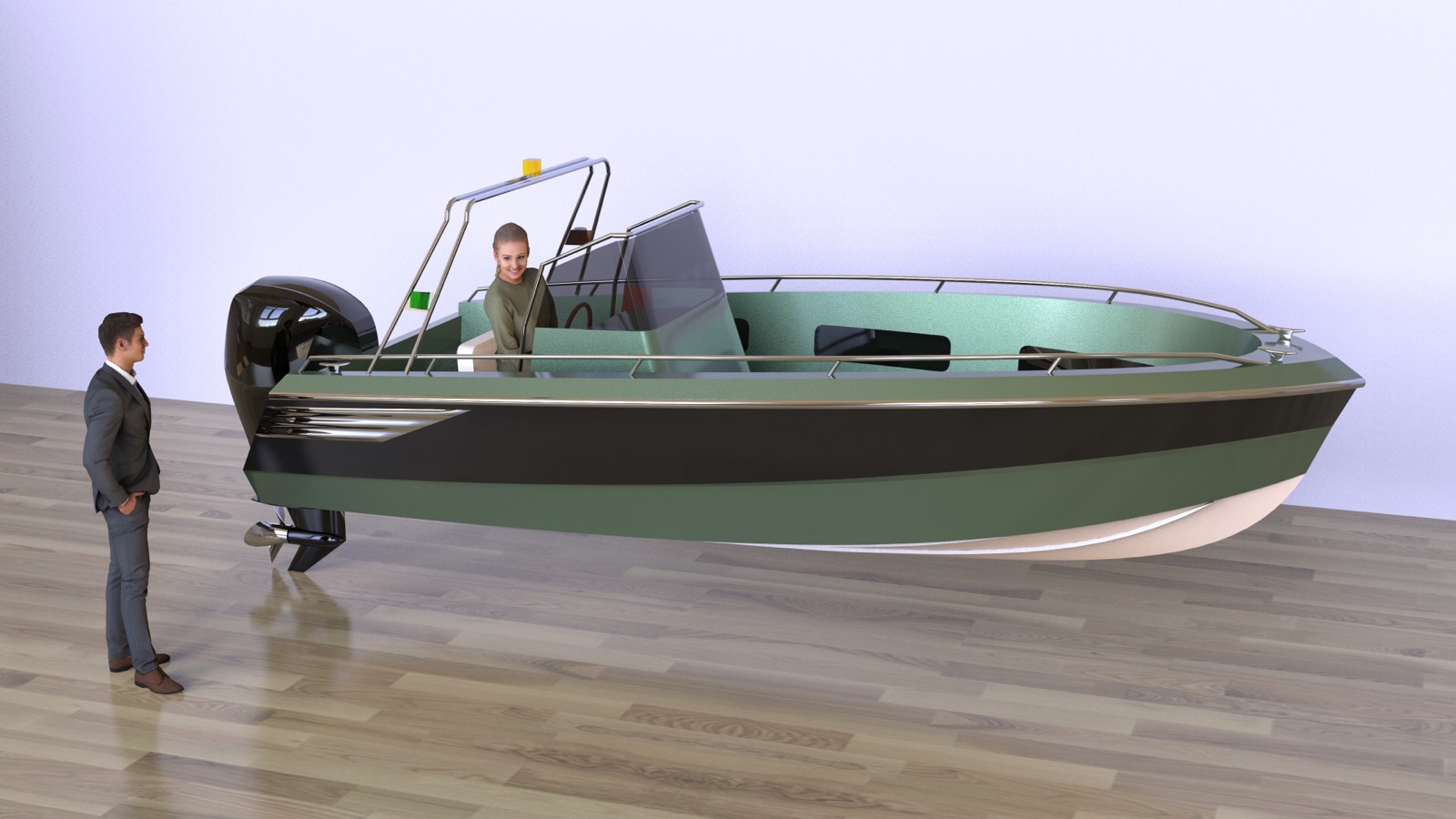

Small speed boat rendering as augmenter reality model

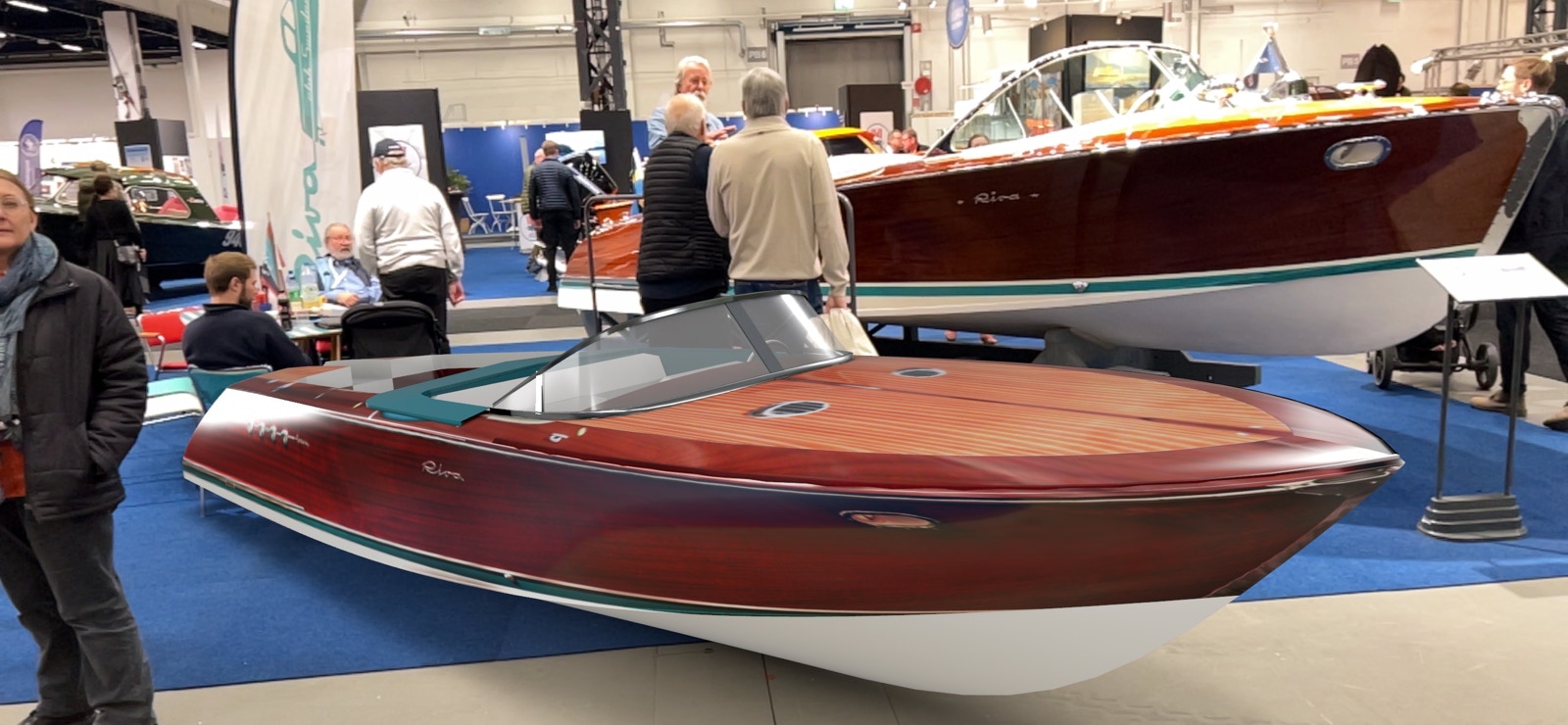

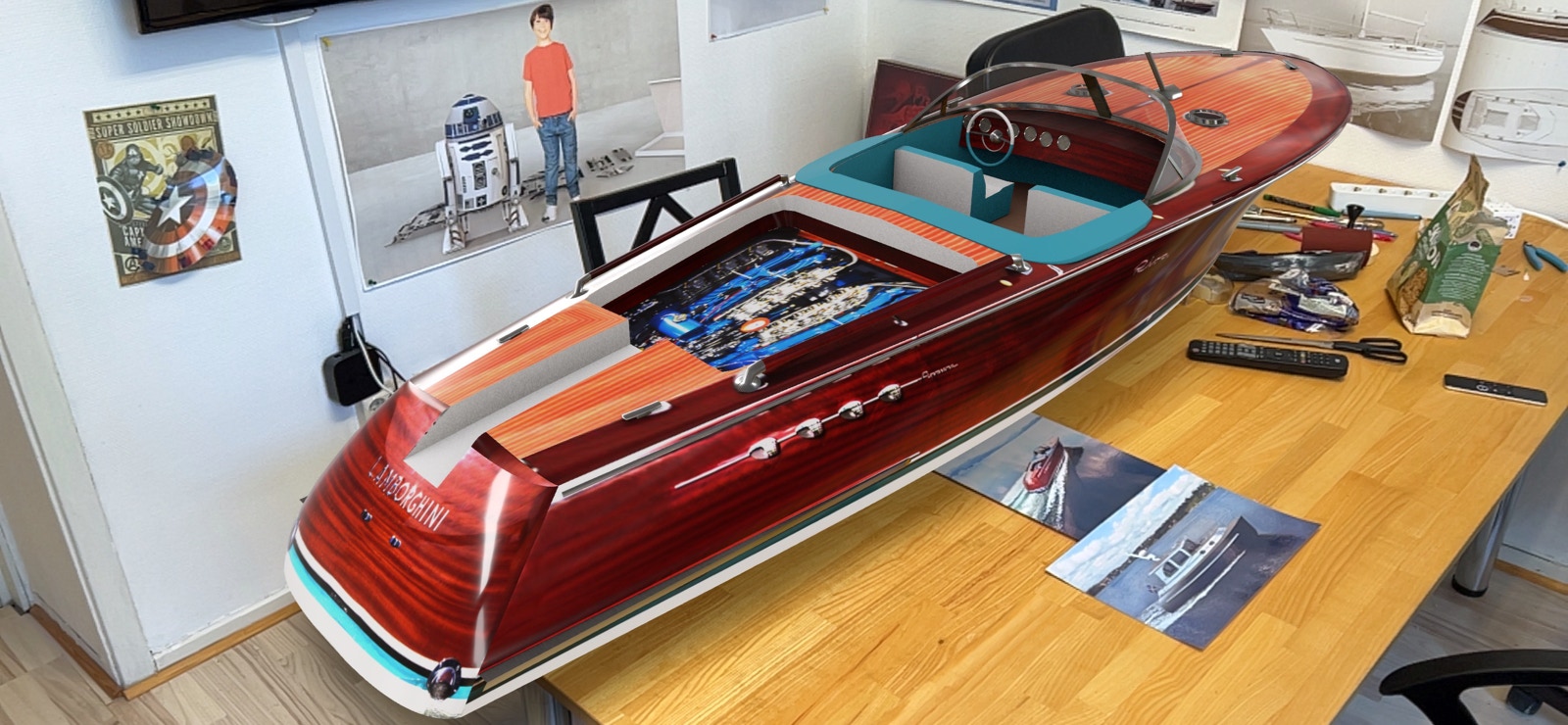

1968 Riva Aquarama with twin Lamborghini V12's

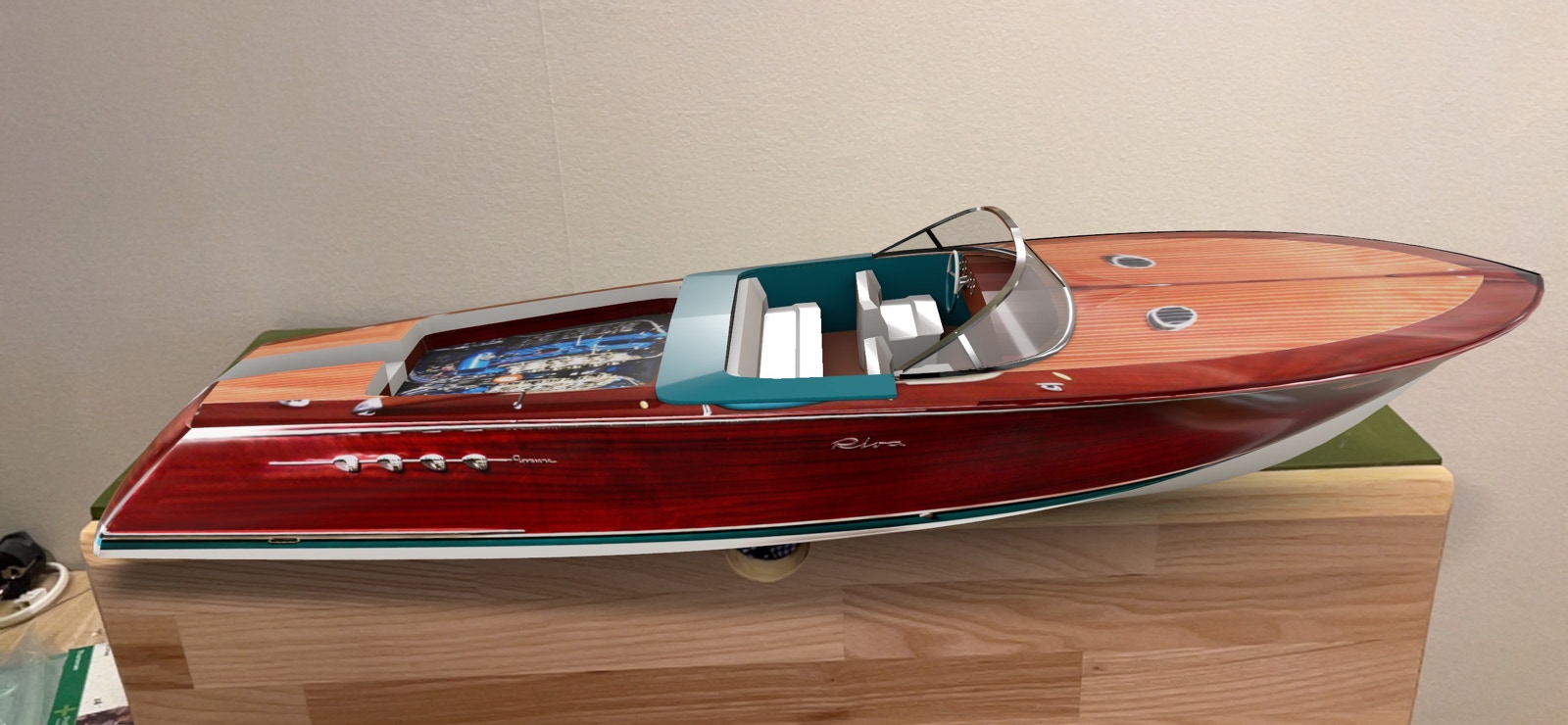

1968 Riva Aquarama with twin Lamborghini V12's as augmented reality model

Stainless steel boat

Stainless steel one off, 10.64 x 3.47 m.

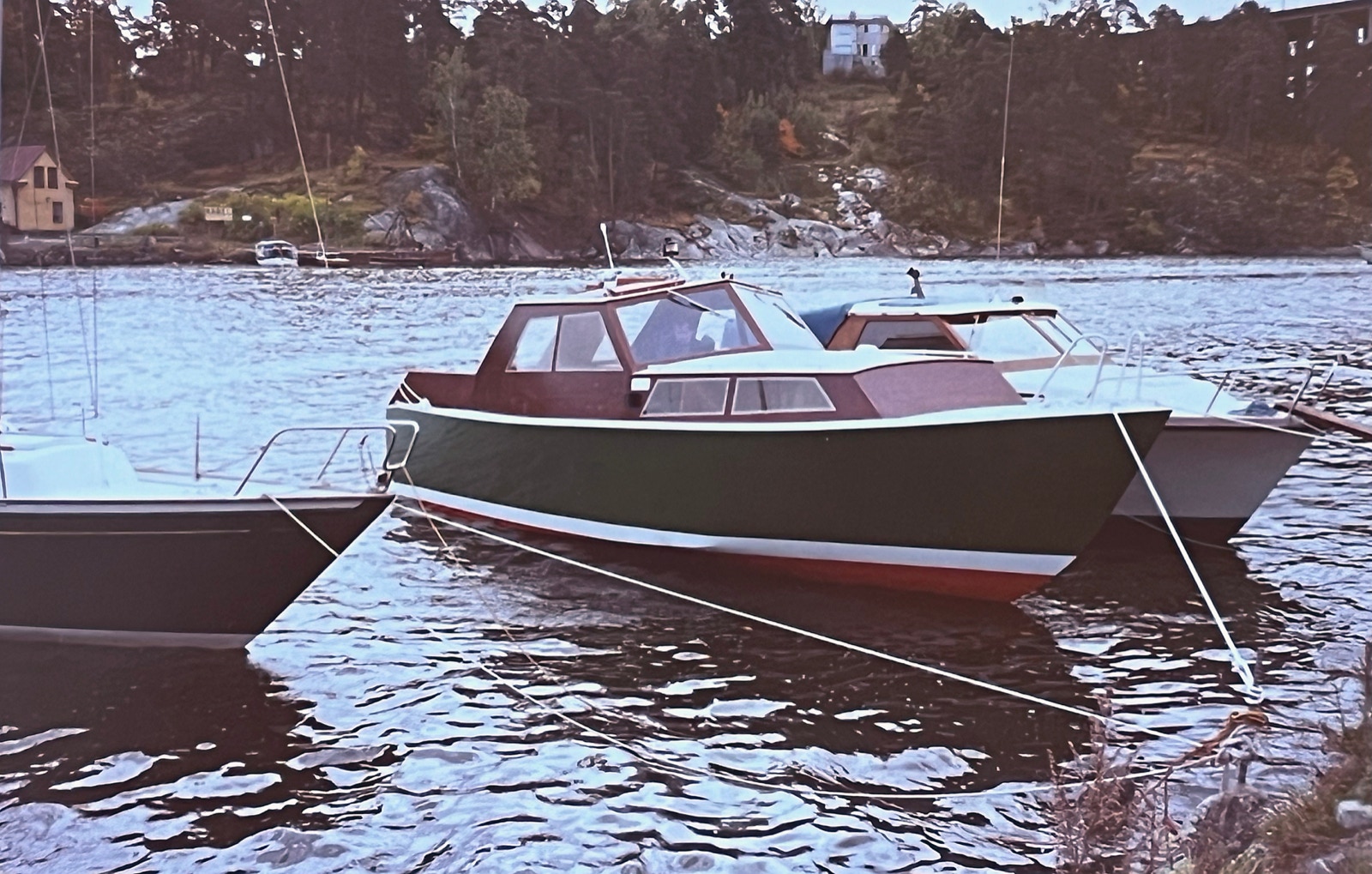

Various projects

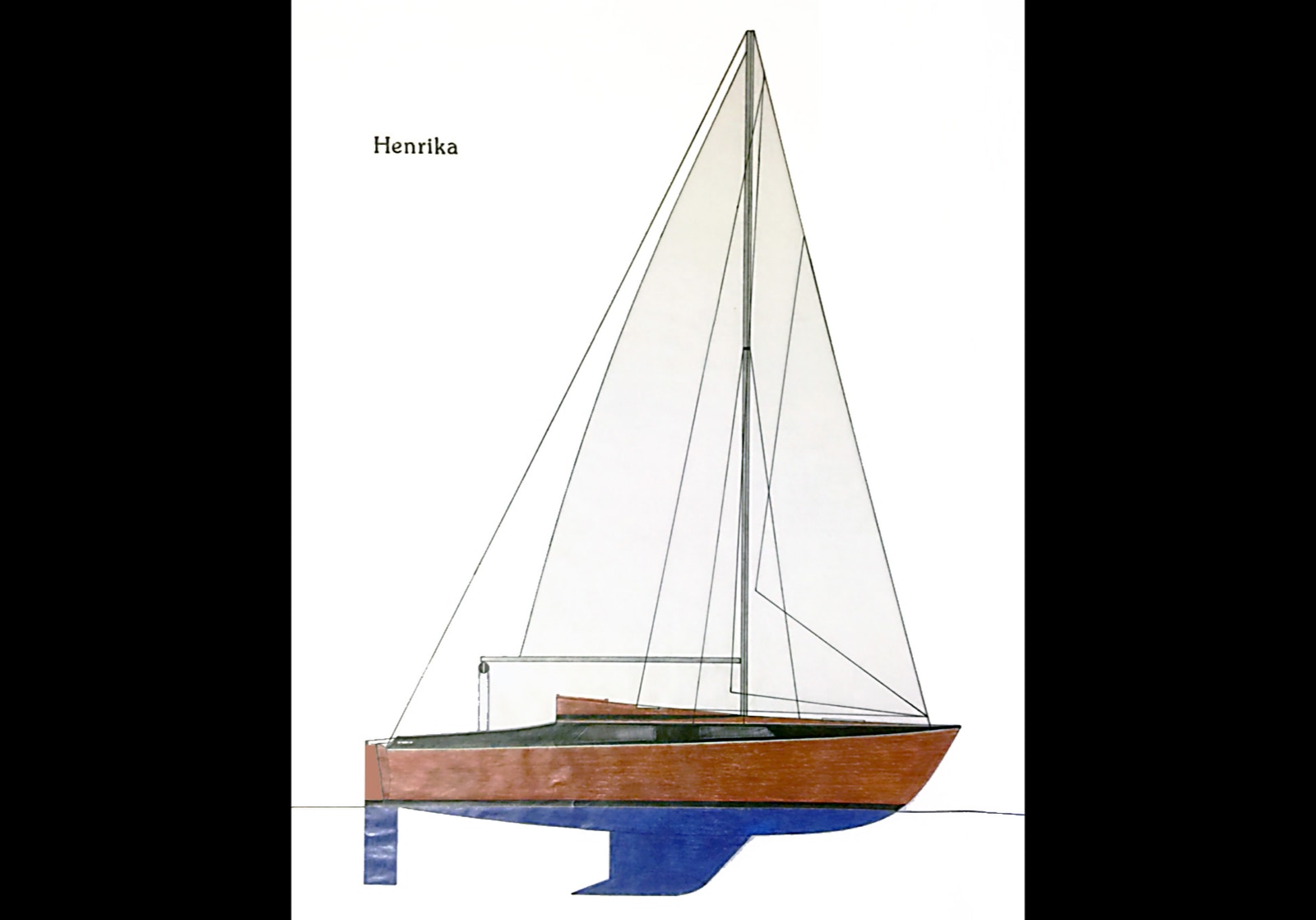

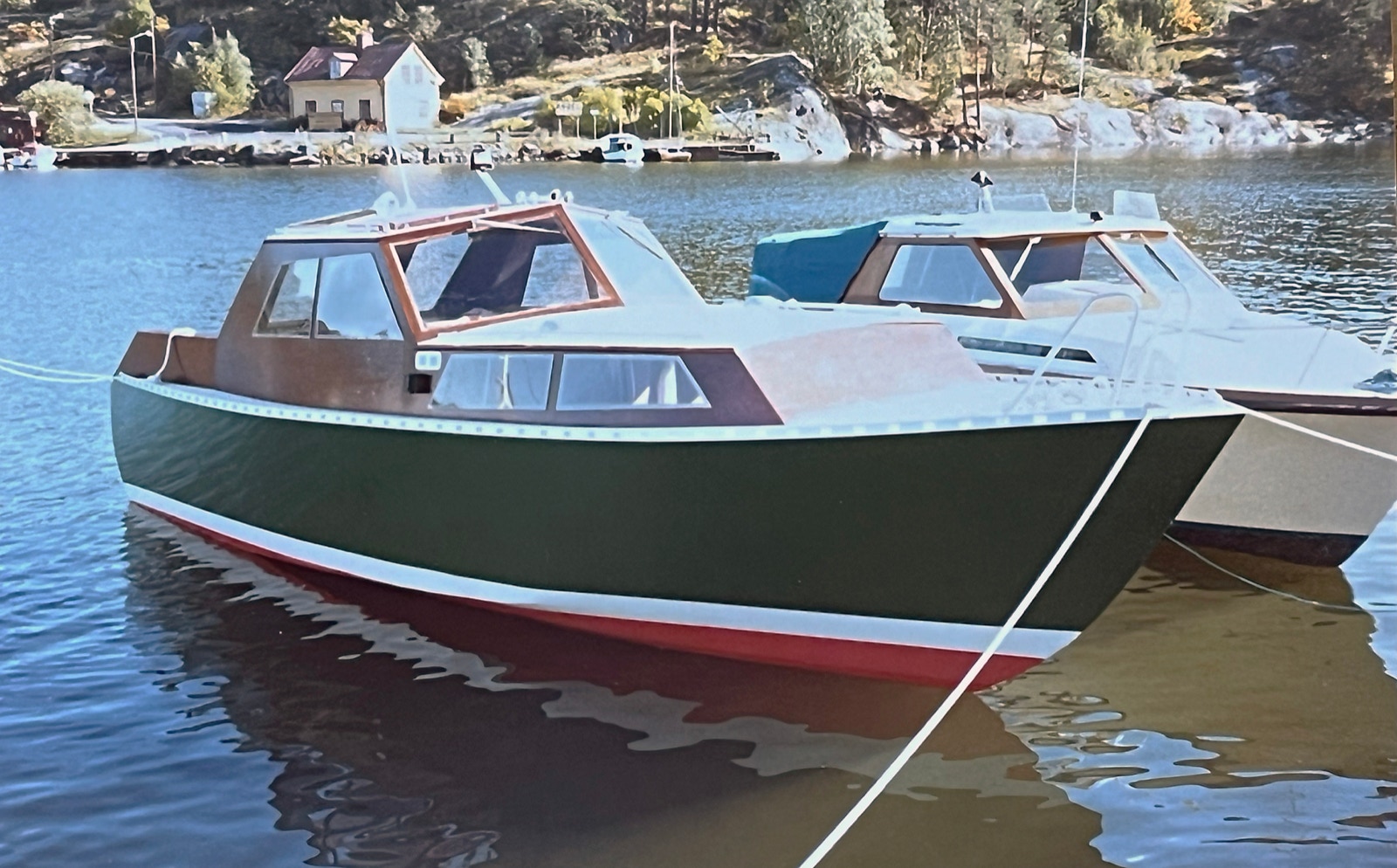

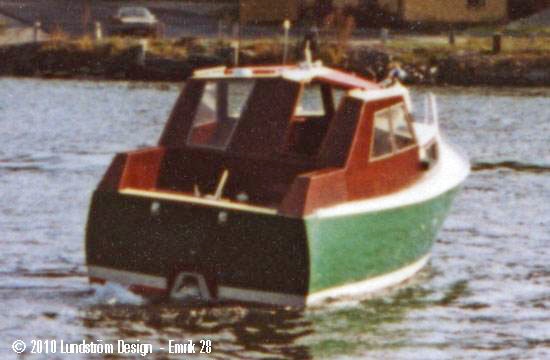

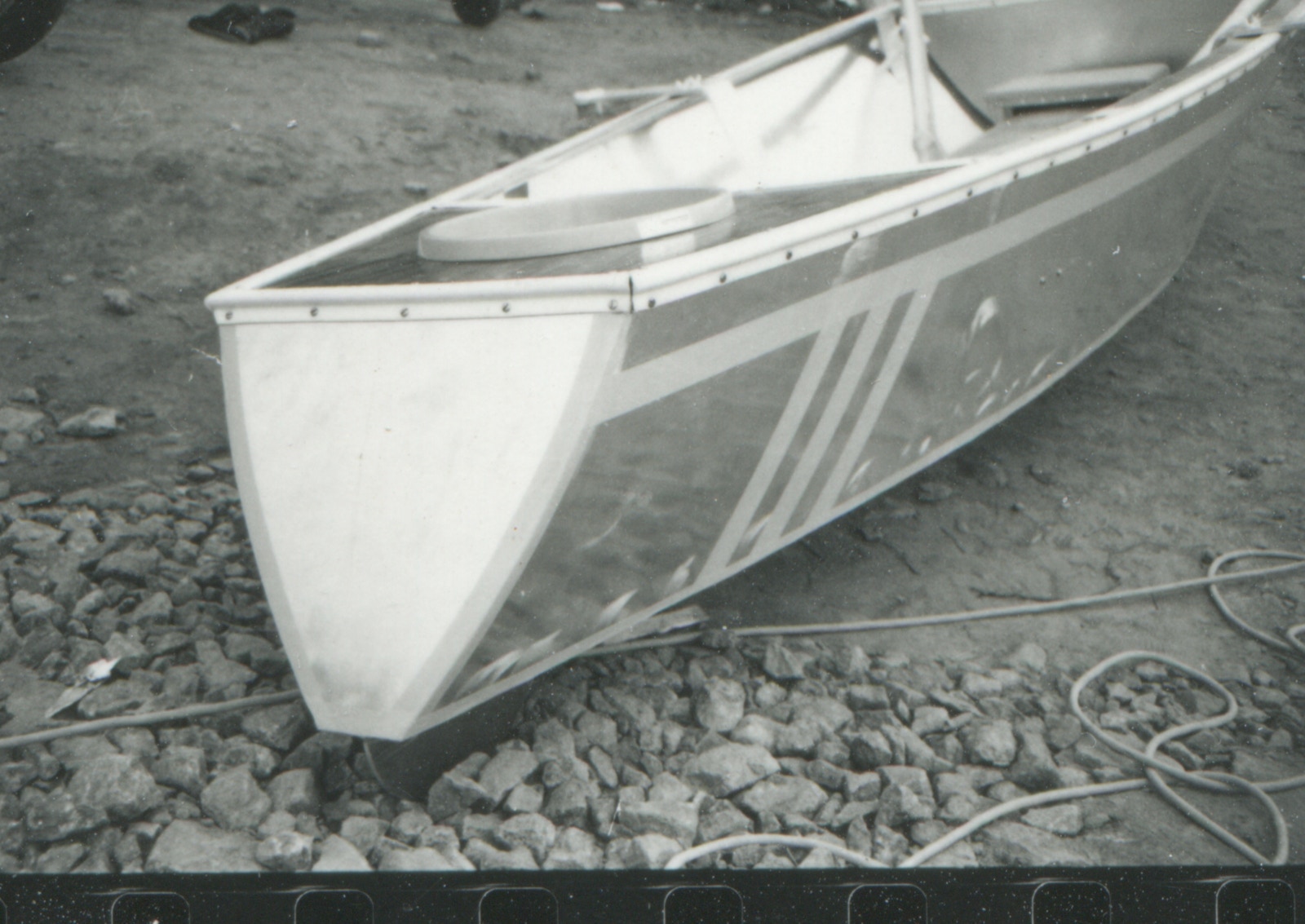

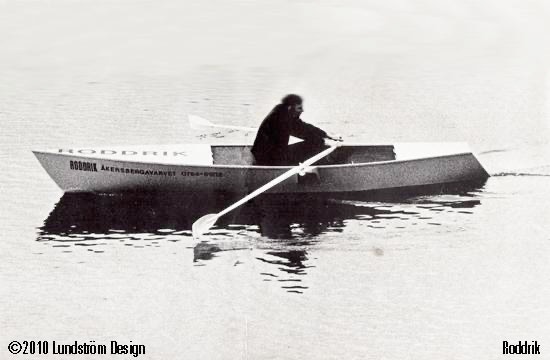

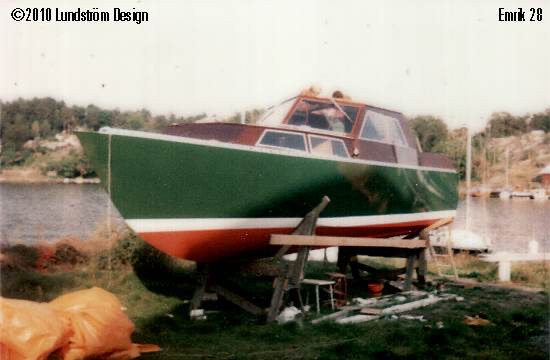

Various projects over the years. Emrik with folded aluminium hull. Henrika conventionally built 7 meter long plywood boat. Eight meter long front cabin aluminium work boat. Roddrik - a rowing boat originally folded stitch and glue plywood but also built as folded aluminium boat.

Magazine illustrations

Various sketches for På Kryss Till Rors magazine.

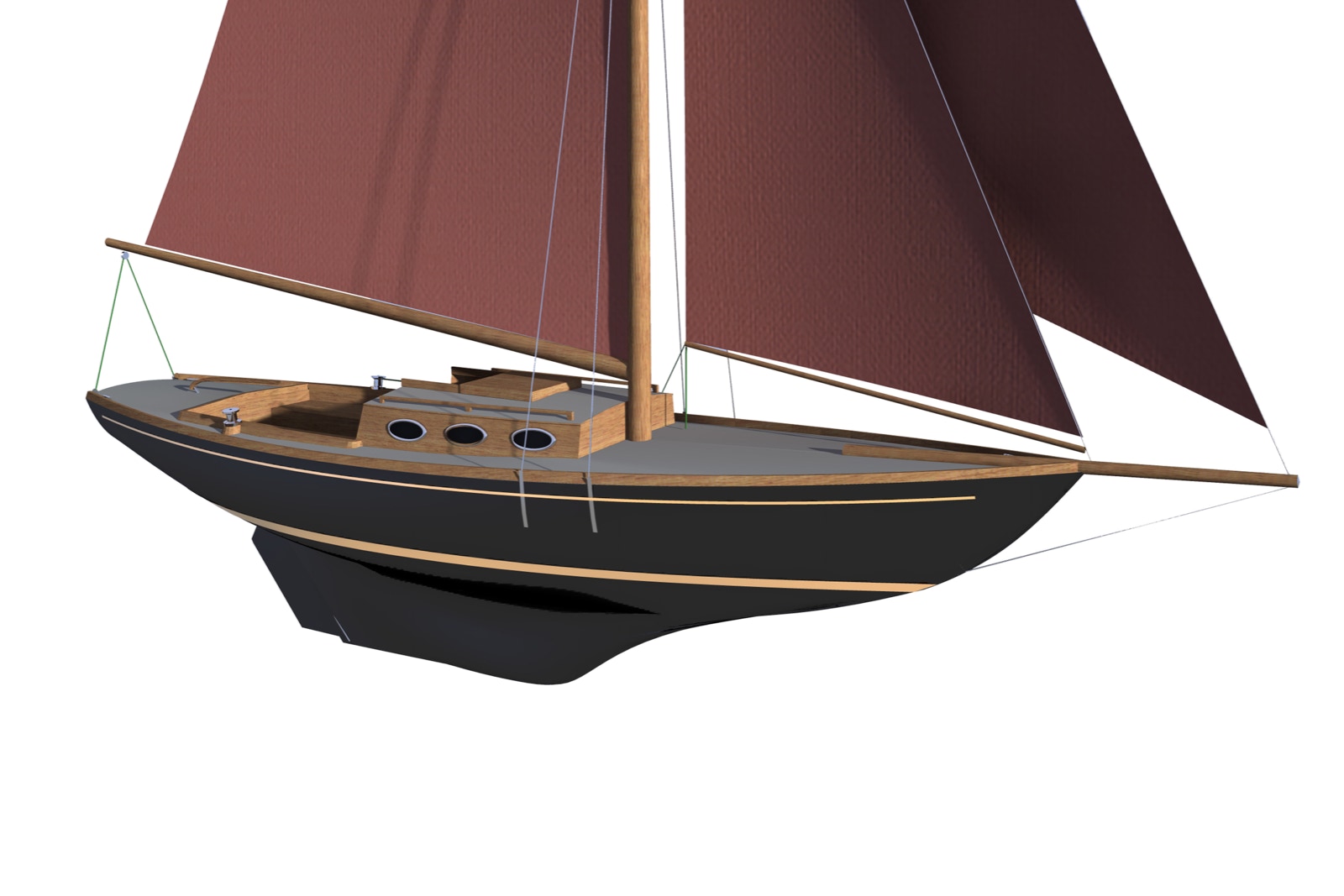

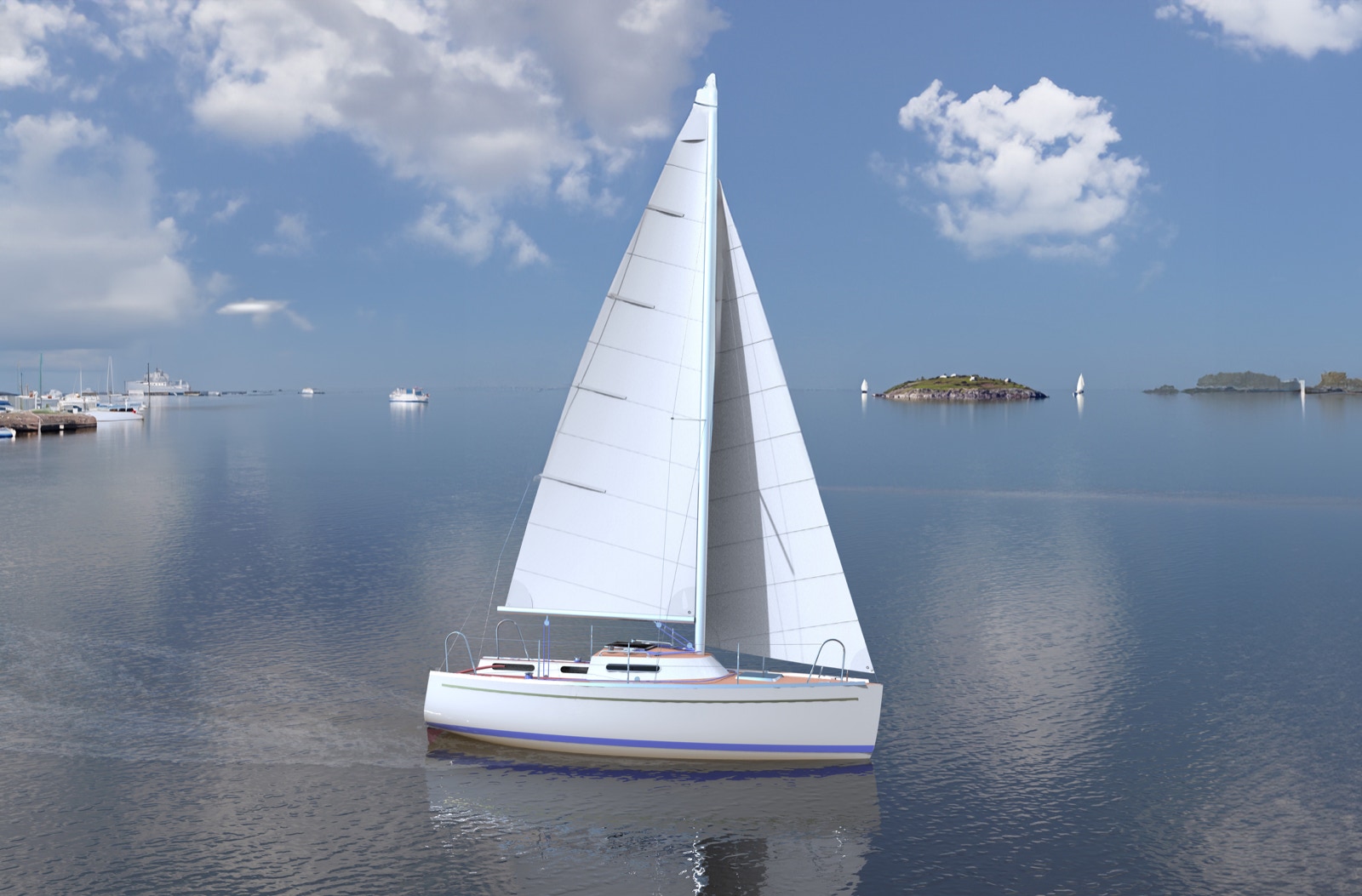

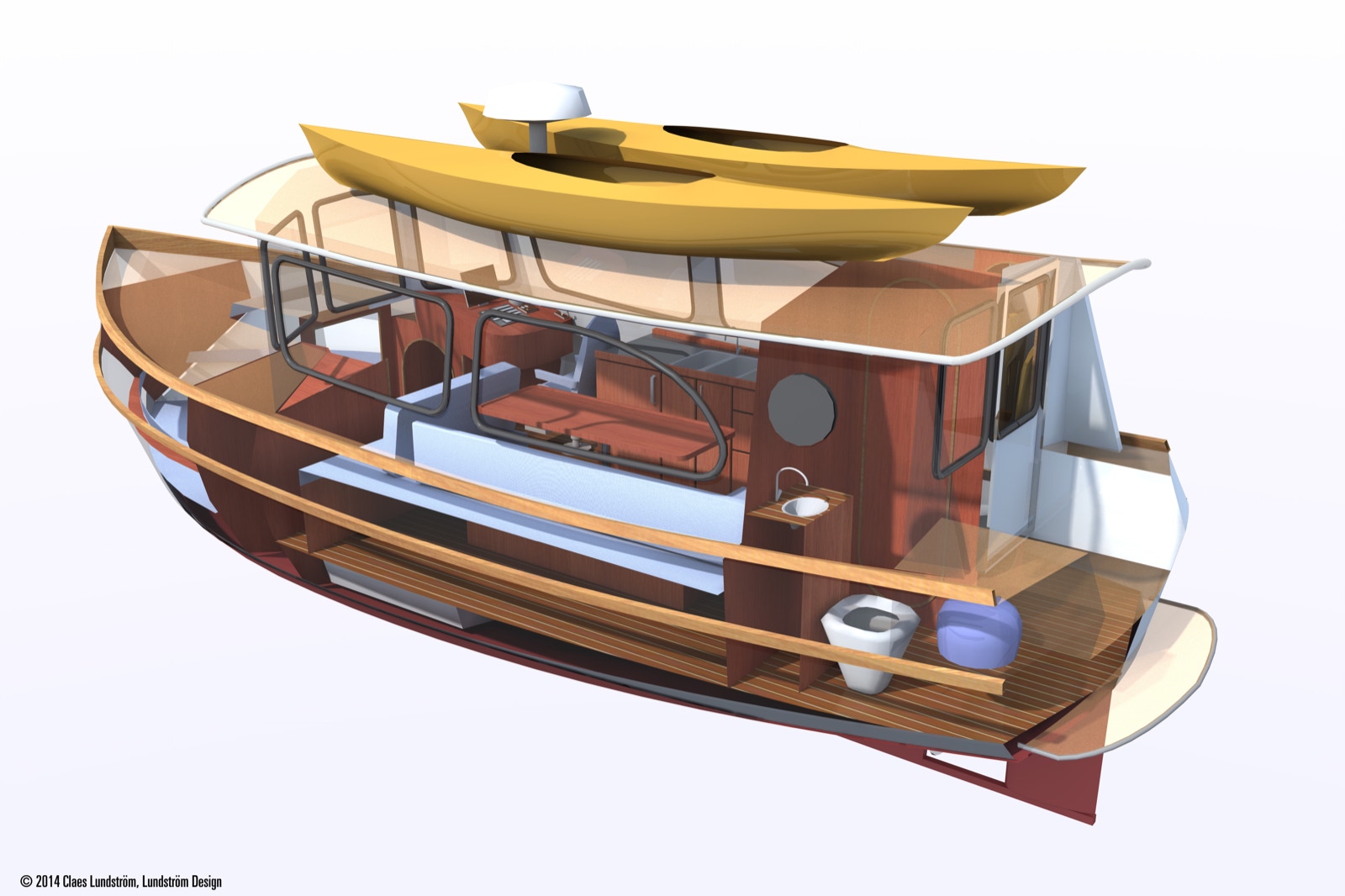

Some sketches

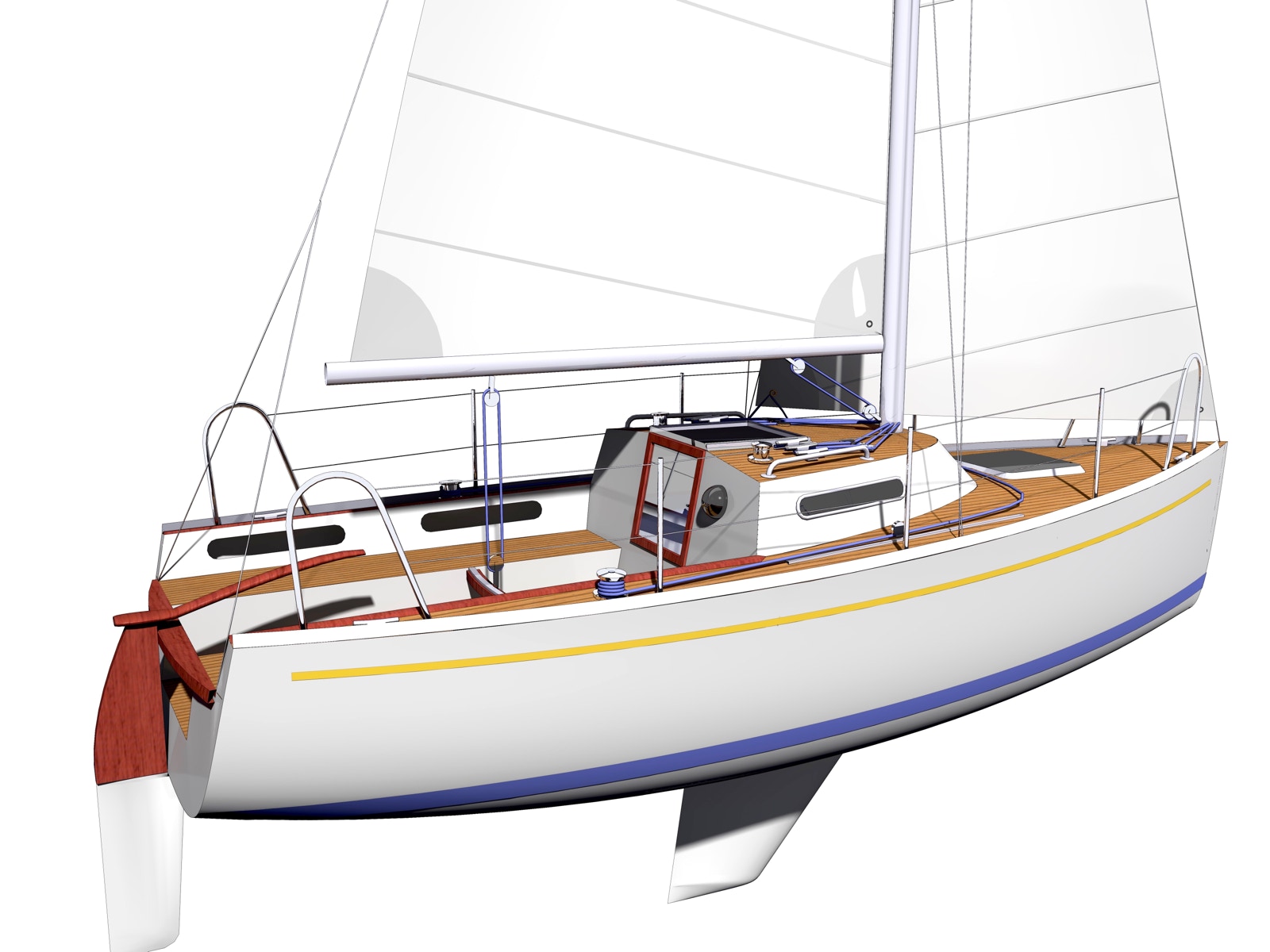

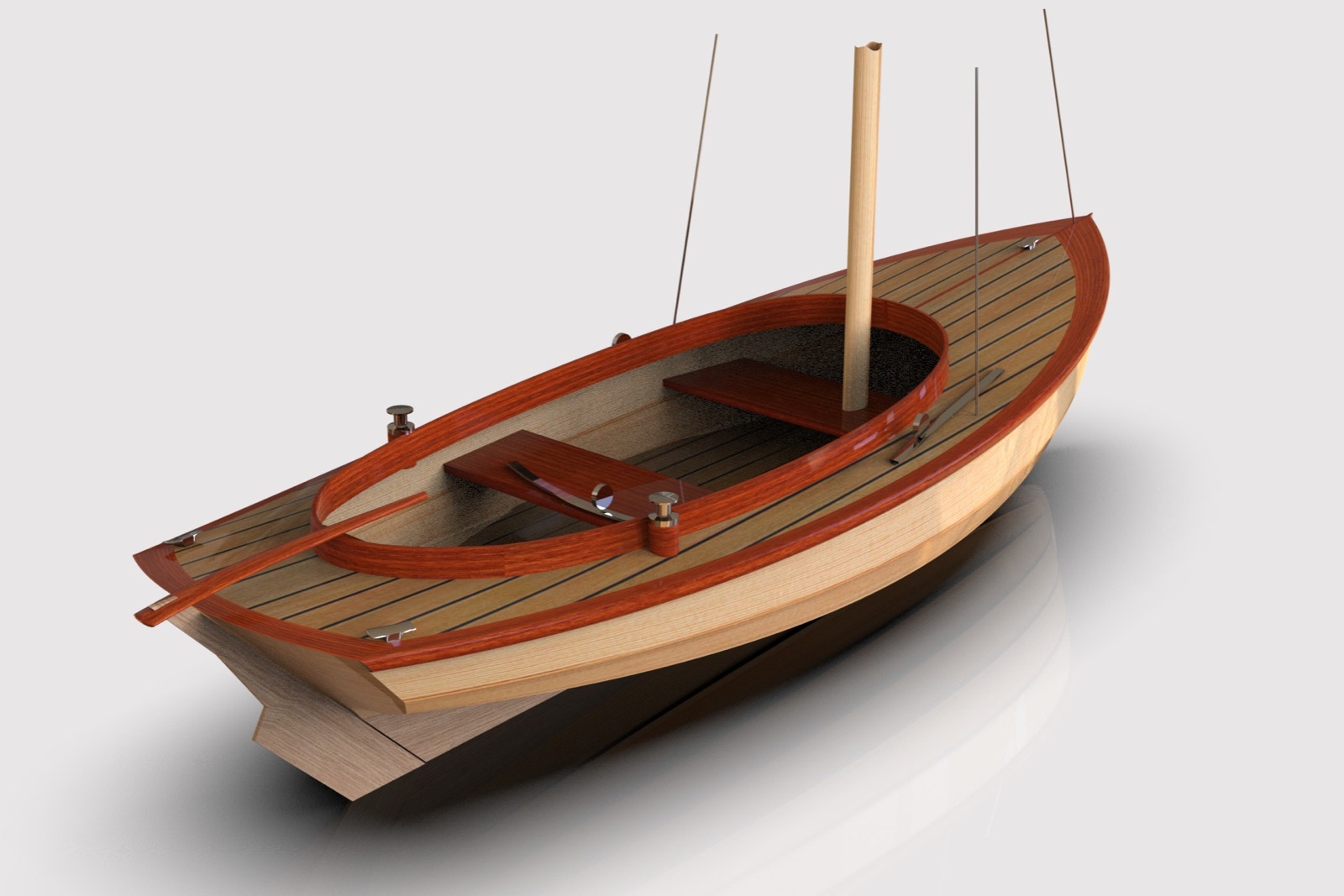

Some sketches and renderings.
